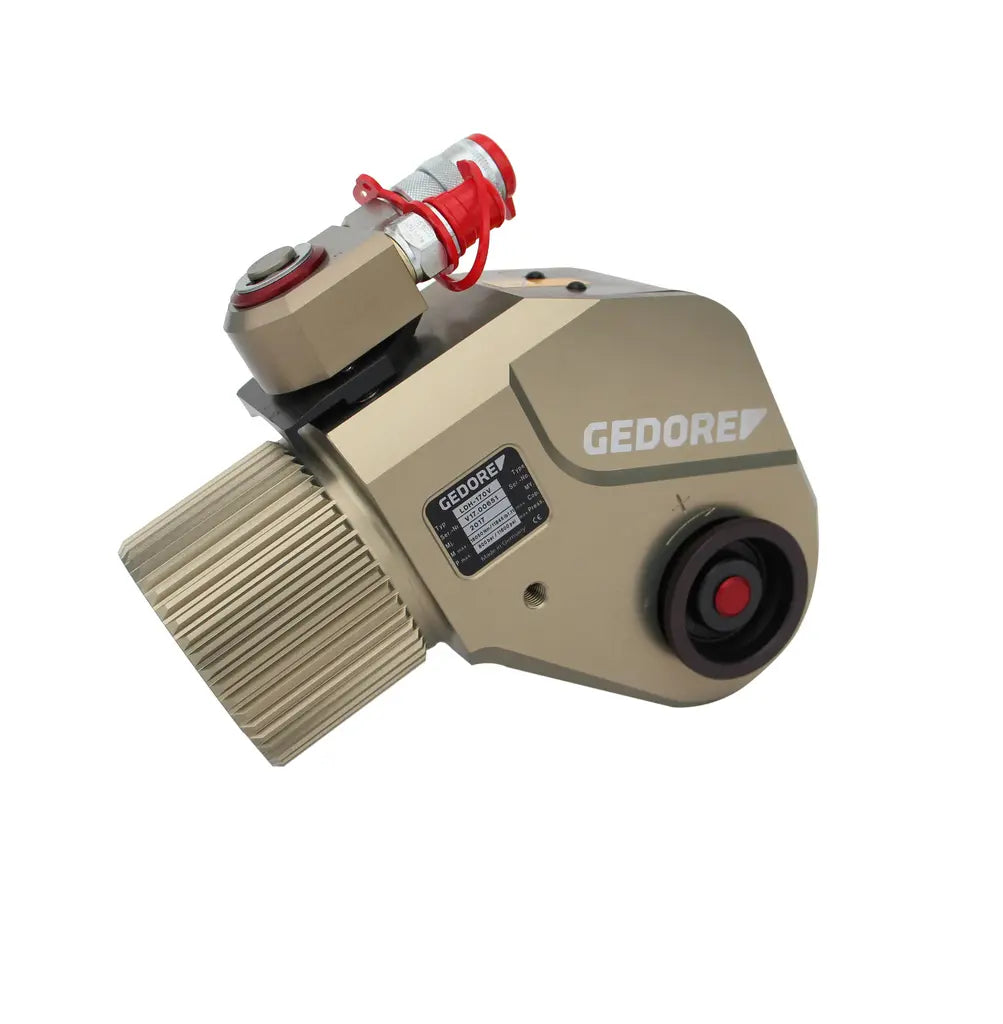

Gedore Hydraulic Wrench Type LDH-24V - GD 15400.002
The Hydraulic Wrench Type LDH-24V is a cutting-edge tool designed for professionals who require both power and precision in their work. This hydraulic wrench operates with a 24V motor, delivering exceptional torque and performance that makes it ideal for heavy-duty applications. Whether you're in the automotive industry, construction, or any field that demands reliable fastening and loosening of bolts, the LDH-24V is engineered to meet your needs. Its ergonomic design ensures comfortable handling, while the lightweight construction allows for easy maneuverability. The hydraulic mechanism provides consistent torque output, reducing the risk of over-tightening and ensuring that your fasteners are secured to the correct specifications. Additionally, the LDH-24V features a durable build that can withstand the rigors of daily use, making it a dependable choice for any professional toolkit. With its user-friendly interface and safety features, this hydraulic wrench simplifies complex tasks, allowing you to work more efficiently and effectively. Invest in the Hydraulic Wrench Type LDH-24V and elevate your performance on the job site.
Features:
- Quick-change mechanism for a lightning-fast transfer of the reaction arms
- Pressure bolt technology for easy repositioning of the drive square when changing the direction of rotation
- High pressure couplings 360 deg rotatable in vertical plane
- Integrated pressure relief valve in the hydraulic connection
- Extra large hydraulic bores for minimum system heating
Set Contains:
- Drive square and counter bearing, tool case and operating instructions
Specifications:
- Casing Radius from Square Centre: 24 R
- Square Drive: 3/4 in
- Height of Counter Bearing: 6mm
- Height of Hydraulic Connection: 37mm
- Height of Reaction Arm to Center of Housing: 95mm
- Height Square Center to Hydraulic Connection: 72mm
- Length of Reaction Arm Type L(LM)/S(LM): 60/58mm
- Length Square Centre to Beginning of Reaction Arm Type L(LM)/S(LM): 59/109mm
- Net Weight: 4.41 lbs
- Overall Length (LDH with Reaction Arm Type L(LM)/S(LM)): 146/194mm
- Maximum Torque: 2350 Nm
- Minimum Torque: 120 Nm
- Total Length Square: 28mm
- Total Width: 53mm
