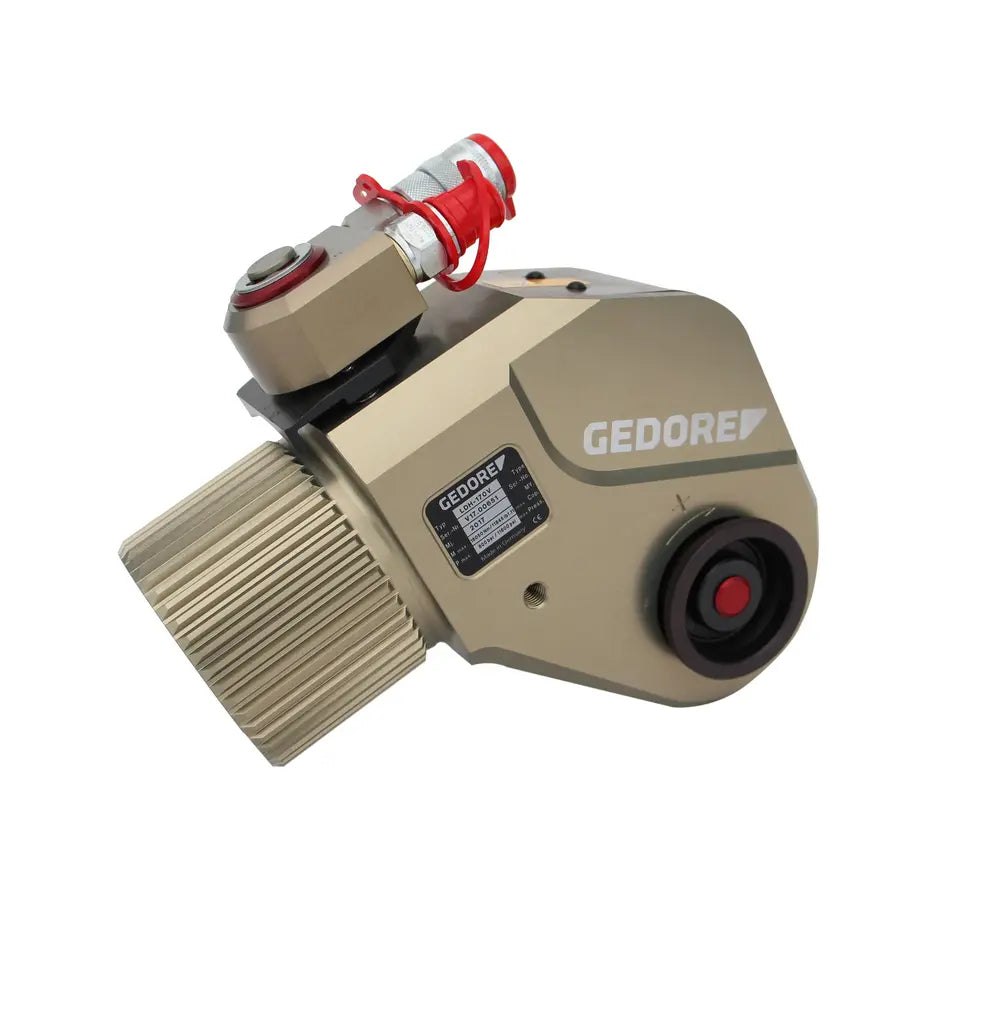

Gedore Hydraulic Wrench Type LDH-48V - GD 15500.002
The Hydraulic Wrench Type LDH-48V is engineered for professionals who demand high performance and reliability in their tools. This advanced hydraulic wrench delivers exceptional torque output, making it ideal for heavy-duty applications in construction, automotive, and industrial settings. With its lightweight design and ergonomic grip, the LDH-48V ensures maximum comfort and control during operation. The hydraulic mechanism allows for smooth and efficient tightening and loosening of bolts, reducing the risk of stripping and damage. Equipped with a durable casing and high-quality components, this wrench is built to withstand the toughest conditions. Whether you're working on large machinery or intricate assemblies, the Hydraulic Wrench Type LDH-48V provides the precision and power you need to get the job done right. Elevate your tool collection and experience the difference that hydraulic technology can make in your workday.
Features:
- Quick-change mechanism for a lightning-fast transfer of the reaction arms
- Pressure bolt technology for easy repositioning of the drive square when changing the direction of rotation
- High pressure couplings 360 deg rotatable in vertical plane
- Integrated pressure relief valve in the hydraulic connection
- Extra large hydraulic bores for minimum system heating
Set Contains:
- Drive square and counter bearing, tool case and operating instructions
Specifications:
- Casing Radius from Square Centre: 31 R
- Square Drive: 1 in
- Height of Counter Bearing: 14mm
- Height of Hydraulic Connection: 37mm
- Height of Reaction Arm to Center of Housing: 115mm
- Height Square Center to Hydraulic Connection: 92mm
- Length of Reaction Arm Type L(LM)/S(LM): 89/80mm
- Length Square Centre to Beginning of Reaction Arm Type L(LM)/S(LM): 70/125mm
- Net Weight: 8.6 lbs
- Overall Length (LDH with Reaction Arm Type L(LM)/S(LM)): 193/239mm
- Maximum Torque: 4800 Nm
- Minimum Torque: 230 Nm
- Total Length Square: 32mm
- Total Width: 68mm
