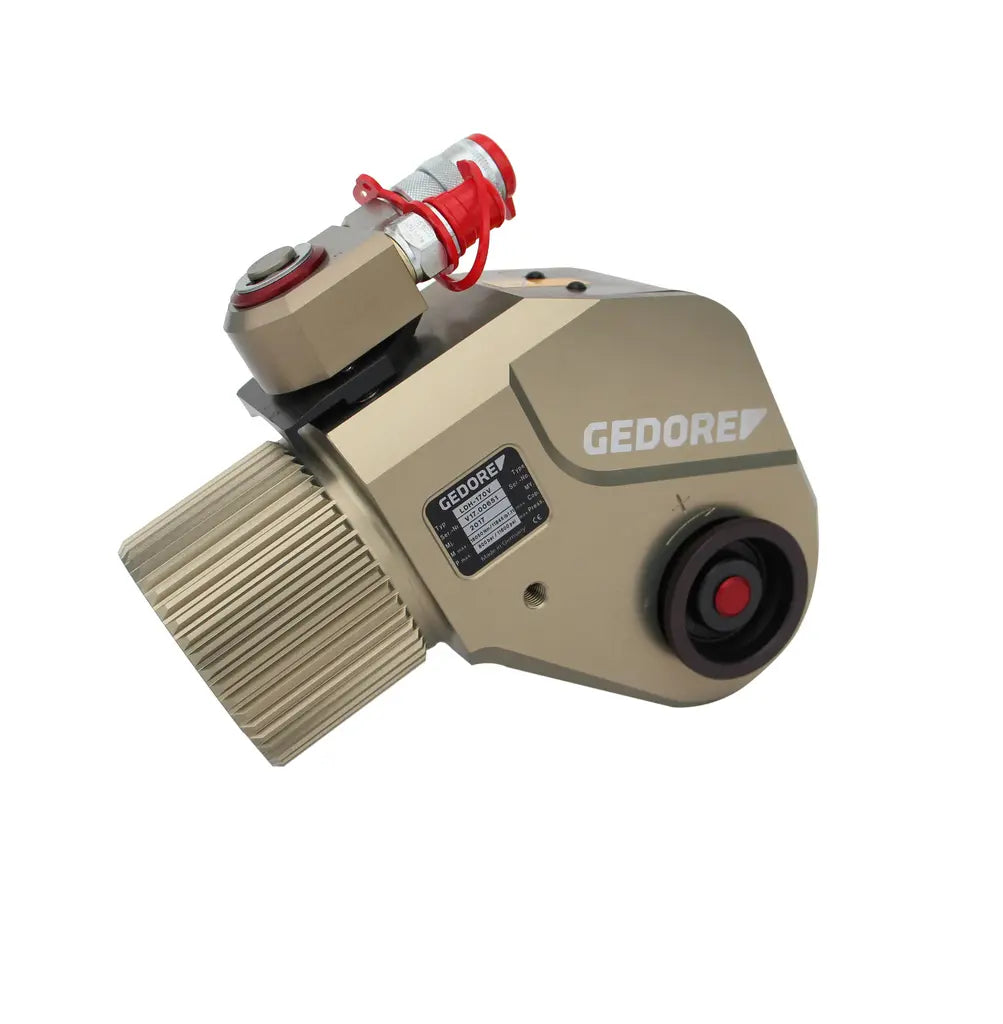

Gedore Hydraulic Wrench Type LDH-75V - GD 15300.002
The Hydraulic Wrench Type LDH-75V is engineered for professionals who demand strength and accuracy in their tools. This high-performance hydraulic wrench is designed to tackle the toughest jobs with ease, providing an impressive torque output that ensures you can handle even the most stubborn fasteners. Its lightweight yet durable construction allows for extended use without fatigue, making it the perfect companion for any heavy-duty task. The ergonomic design ensures a secure grip, reducing the risk of slippage during operation. Whether you're in construction, automotive repair, or industrial maintenance, the LDH-75V delivers unparalleled efficiency and reliability. With its advanced hydraulic technology, this wrench not only speeds up the process but also enhances safety by minimizing the effort required to achieve high torque levels. Invest in the Hydraulic Wrench Type LDH-75V and experience the difference in performance and quality for yourself.
Features:
- Quick-change mechanism for a lightning-fast transfer of the reaction arms
- Pressure bolt technology for easy repositioning of the drive square when changing the direction of rotation
- High pressure couplings 360 deg rotatable in vertical plane
- Integrated pressure relief valve in the hydraulic connection
- Extra large hydraulic bores for minimum system heating
Set Contains:
- Drive square and counter bearing, tool case and operating instructions
Specifications:
- Casing Radius from Square Centre: 36 R
- Square Drive: 1-1/2 in
- Height of Counter Bearing: 12mm
- Height of Hydraulic Connection: 37mm
- Height of Reaction Arm to Center of Housing: 122mm
- Height Square Center to Hydraulic Connection: 107mm
- Length of Reaction Arm Type L(LM)/S(LM): 94/93mm
- Length Square Centre to Beginning of Reaction Arm Type L(LM)/S(LM): 74/134mm
- Net Weight: 13.67 lbs
- Overall Length (LDH with Reaction Arm Type L(LM)/S(LM)): 207/266mm
- Maximum Torque: 7560 Nm
- Minimum Torque: 400 Nm
- Total Length Square: 44mm
- Total Width: 76mm
