Gedore (Series 1.07/K-1A-B) Puller Set with 3 Leg Brake, 140 × 100mm - GD 2224097
Engineered for professional performance and durability, this puller set with 3 leg brake offers reliable operation in demanding applications. Designed for precision and long-lasting quality in professional settings.

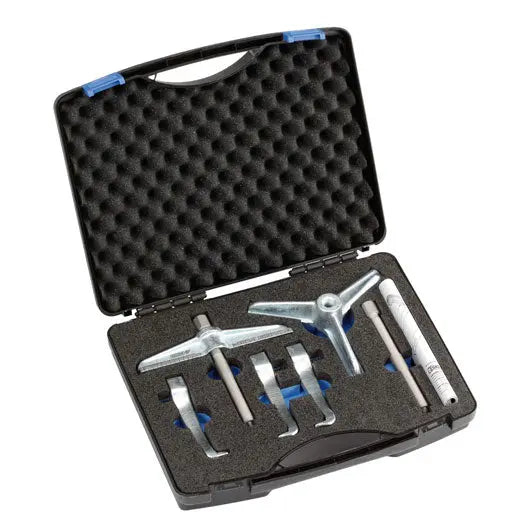

Set Includes:
- Plastic case
- 2 spindles, 1 cross-beam each 2- and 3-arm pattern and 3 rigid legs with leg brake
Features:
- Prevents unintentional leg slipping
- The leg can be slid along the cross-beam at the push of a button
- By reversing the legs, this tool can be used as an internal or external puller
- Extra spindle supplied for convenience
Specifications:
- Height of Head (a, a1, b, h, L2, t): 18.9mm
- Width Across Flat / Actuating Hexagon: 17mm
- Clamping Spread Maximum External Pulling (a, a1): 140mm
- Spindle Size (Thread x Length): M 14 × 1.5 x 140
- Width of Hooked Foot : 22mm
- Depth of Hooked Foot (d): 15mm
- Thickness of Hooked Foot at Tip: 3mm
- Loading Max T: 3 t
- Clamping Reach: 100mm
- Weight: 2.87 kg
