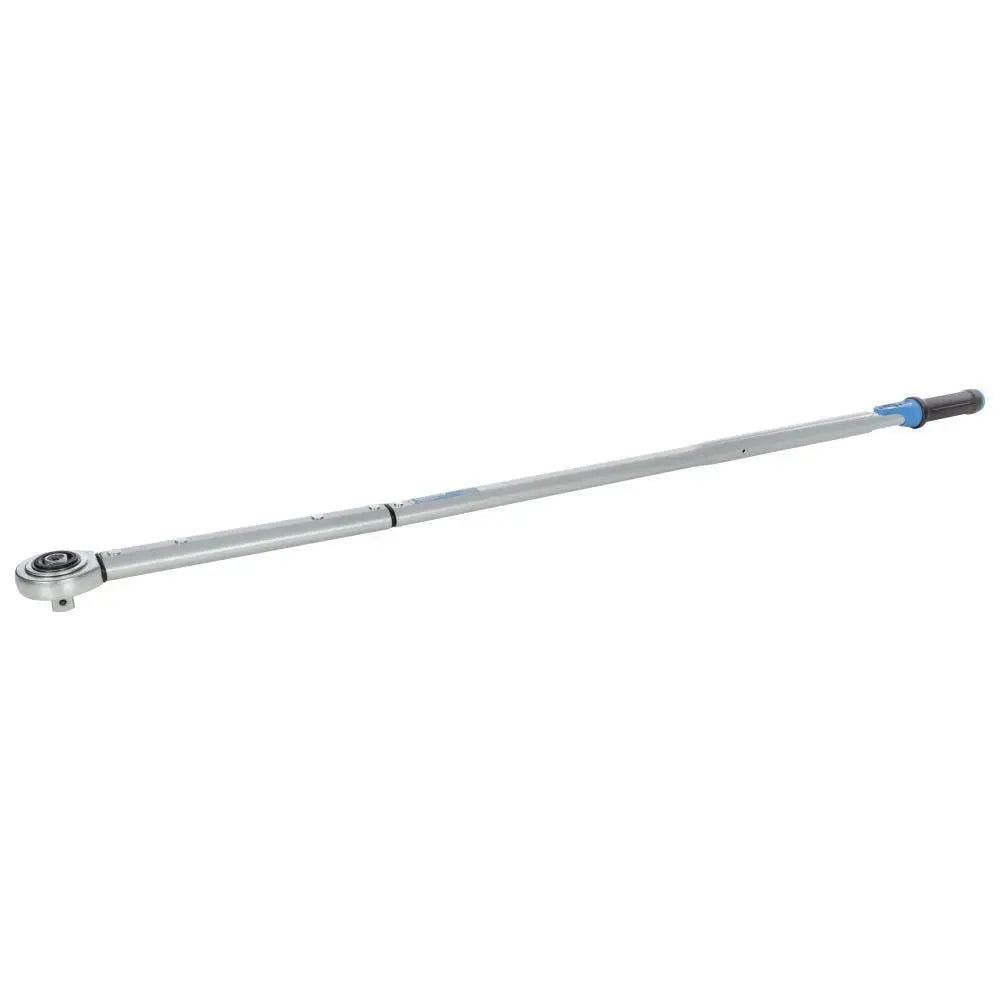

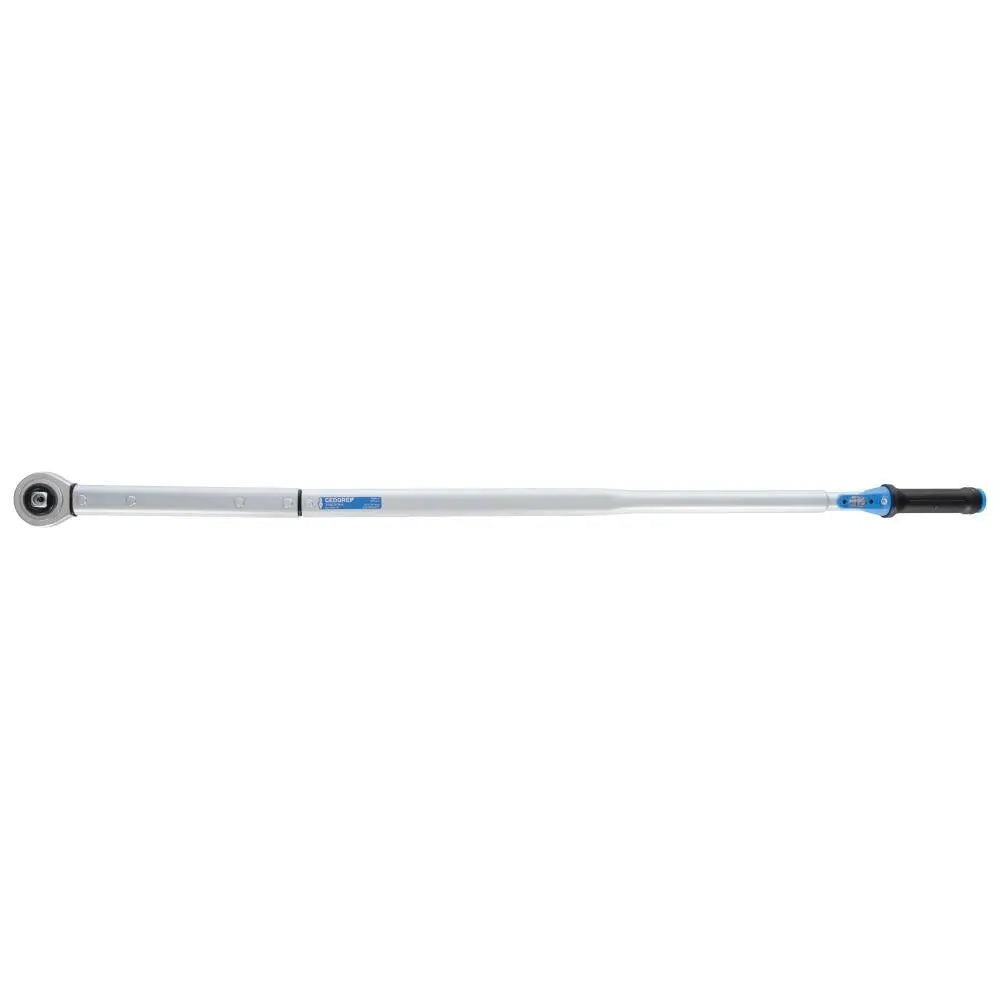

Gedore (Series 4550-75) 3/4 in TORCOFIX K Torque Wrench, 150 - 750 Nm - GD 1521365
Controlled screw tightening in the most widely used range of 1 - 850 N.m / 0.75 - 630 lbf.ft (guide for screws M3-6.9 to M24-8.8, M30-5.6). Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades.
Features:
- Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate
- Working accuracy - 3 % tolerance of scale set torque
- The specification of the standard ( 4 %) is exceeded. For controlled bi-directional tightening
- 1/4", 3/8", 1/2" interchangeable mushroom head with ball locking device
- As from 3/4" with push through square drive with pin-locking mechanism
- Sturdy, varnished tubular steel construction, with zinc-plated ratchet head and top-grade plastic parts
- Ergonomically shaped, convenient black plastic handgrip with calibration aid
- Dual scale N.m and lbf.ft below a window with a magnifying-glass effect
- With micrometer scale for main N.m scale for setting interim values
- Release system triggers a tactile and audible signal. Ergonomic system for torque adjustment
Specifications:
- Drive Connector: 3/4 in
- Length (L, L1): 1232.5mm
- Height: 38mm
- Diameter of Head: 69mm
- Drive Connector Square (Male): 3/4 in
- Scale Divisions: 10 N.m
- Range of Work / Measurement (Min/Max): 150 - 750 N.m
- Distance From Middle of Handgrip to Pivot Point: 1128.7mm
- Distance From Housing to Drive: 327mm
- Scale Ring Graduation: 1 N.m
- Weight: 4.5 kg
