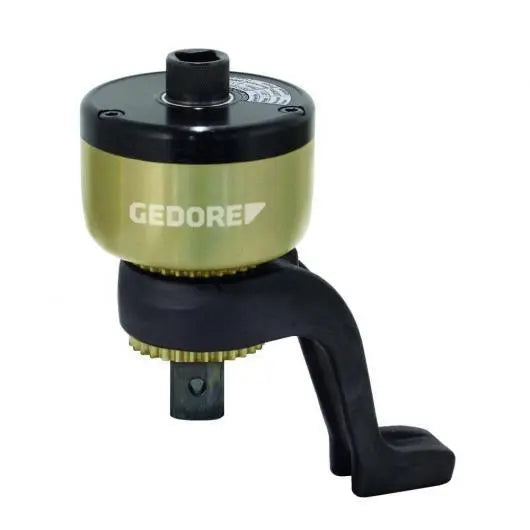

Gedore (Series RZ-DVV100) Z-Form Offset Reaction Arm for Torque Multiplier DVV100 - GD 2653222
Particularly suitable for Machinery and plant engineering. Cable cars, lifts and masts. Heavy industry, construction sites. Bridge construction. Shipbuilding, aircraft and railway construction. Refineries, plastics industry. Power plants of all kinds.
Features:
- Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
- With a two-stage planet gear
- High-performance aluminum housing
- Torque multiplication ratio: 1:18, 1:22, 1:28.5, 1:39
- All models with anti-wind-up ratchet (RS)
- With non-destructive "Slipper" overload safety mechanism for gear protection - clockwise and anticlockwise
- Z-form, offset reaction arm depending on model made of chrome-vanadium steel
- Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal
- Guaranteed accuracy - Better than 3 % tolerance
- For operation in combination with a torque wrench
- 4 models for maximum load in the range between max. 6000 N.m and max. 13000 N.m
- Output square with drill hole for impact sockets with safety pin and ring
- Scope of delivery - Torque Multiplier DREMOPLUS ALU
- With Z-form offset reaction arm
- Delivery in sturdy shipping case with foam insert
- Factory test certificate and setting table
Specifications:
- Distance from Drive to Beginning of Reaction Arm (Min.): 120mm
- Distance from Drive to End of Reaction Arm (Max.): 216mm
- Width of Torque Multiplier: 142mm
- Height of Torque Multiplier: 242mm
- Weight: 3 kg
