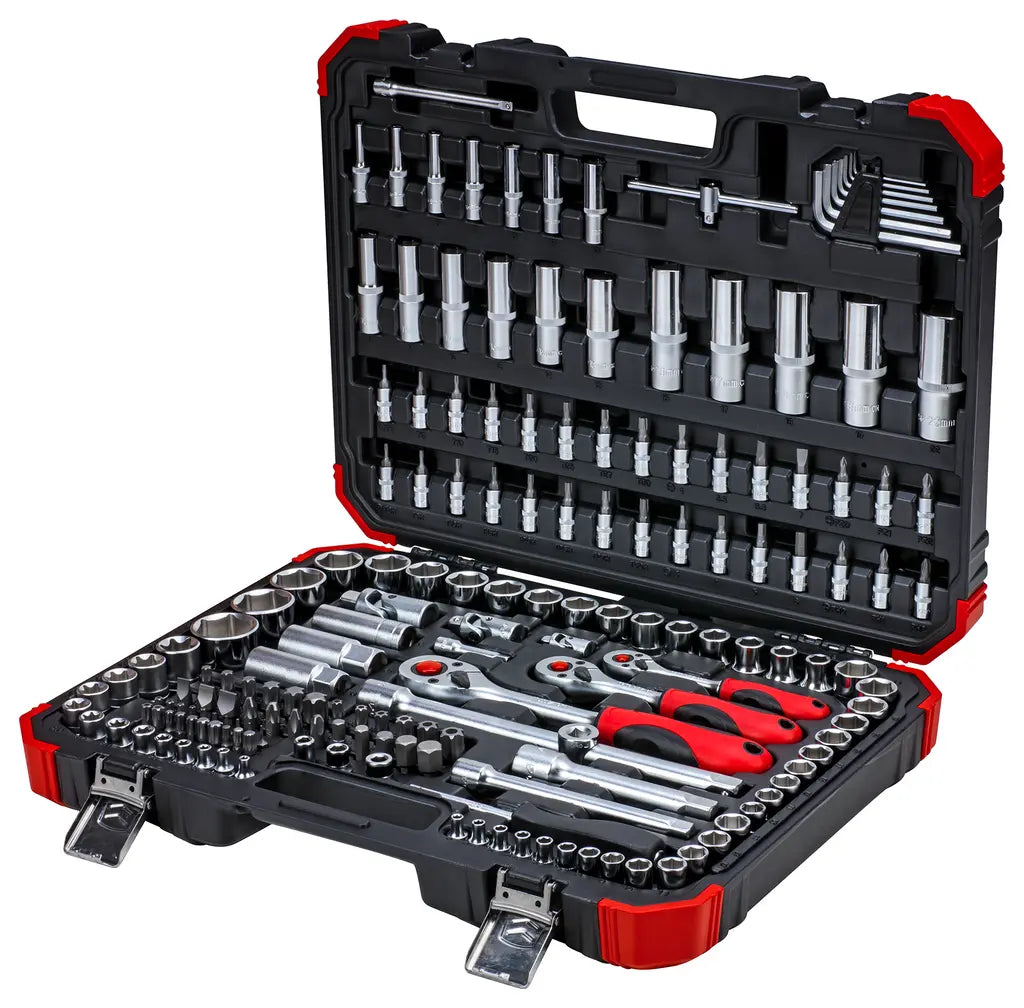

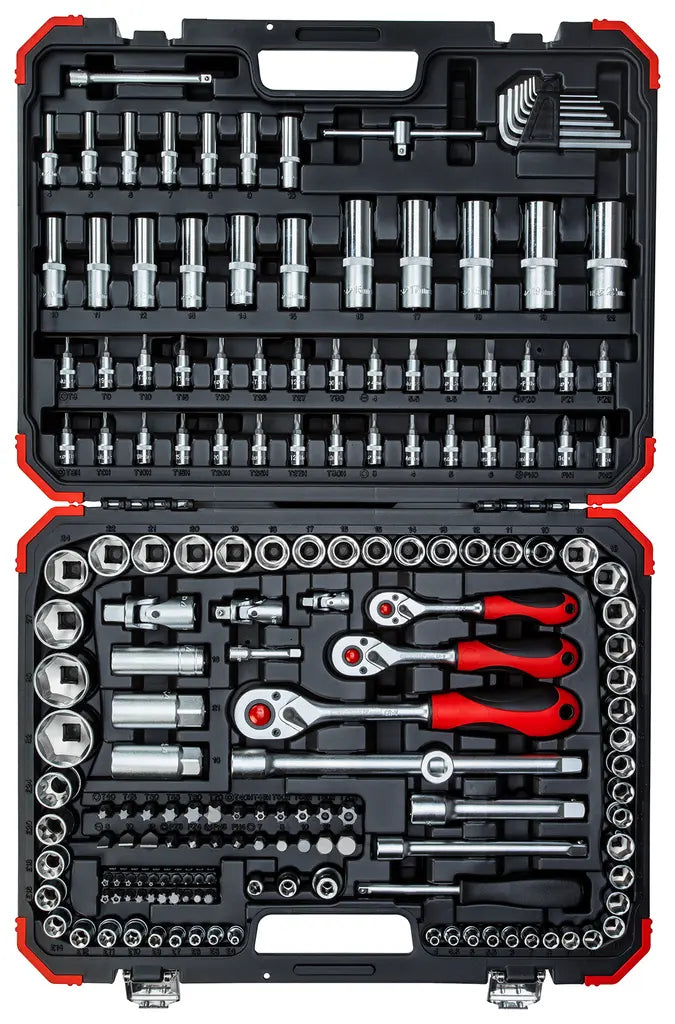

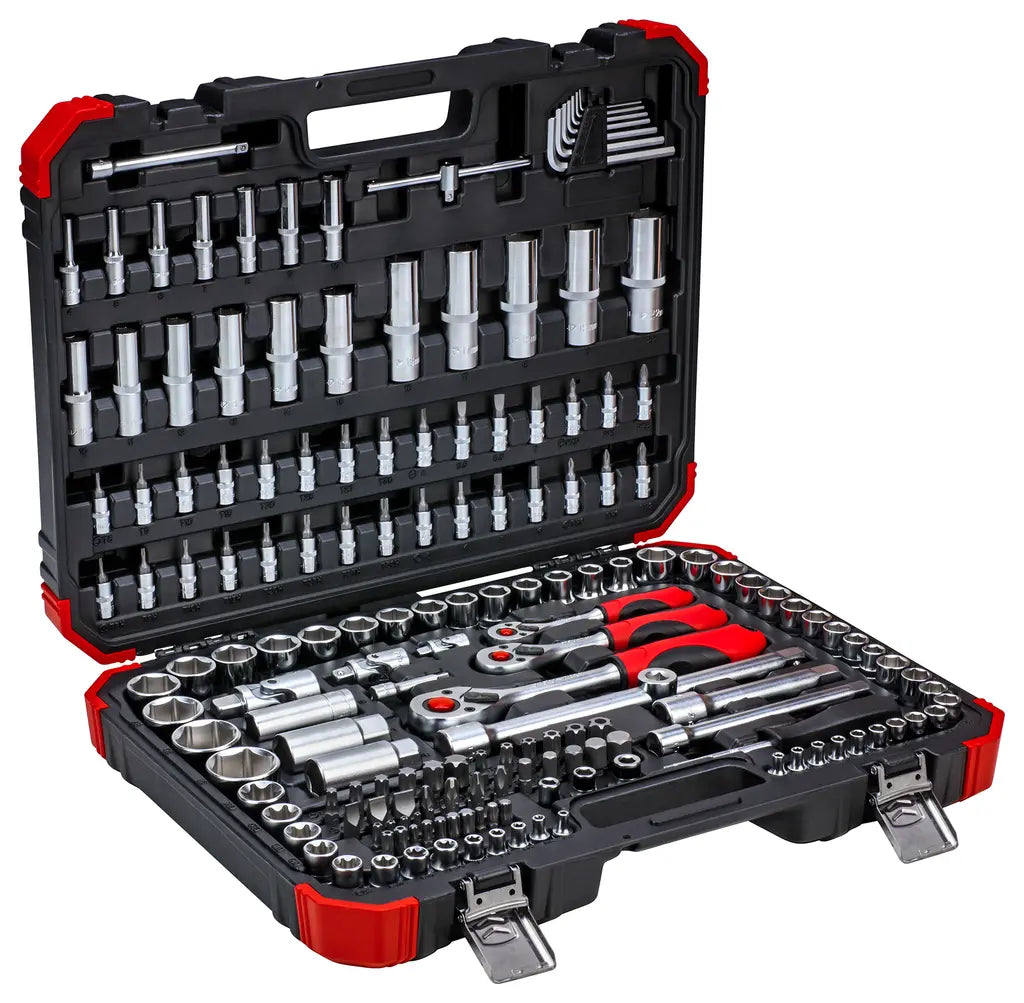

Gedore Set of 172 1/4, 3/8 and 1/2 in Socket Wrench - GD 3300058

A Socket Wrench Set is a comprehensive collection of socket tools designed for turning fasteners, such as nuts and bolts, with precision and ease. It’s an essential toolkit for mechanics, technicians, DIYers, and professionals in automotive, construction, and industrial fields.

Features:

• Coupler in acc. with DIN 3120, ISO 1174, with ball locking device
• Square drive as per DIN 3120, ISO 1174, with ball retention groove
• 2C reversible ratchet, lever for reversible right and left hand operation, push button release, fine-toothed, oval head, dual-material handle, hands-friendly transfer of force, for sockets
• Square plug-in handle 1/4", 1-component handle with female square
• Socket, hex, metric, short, as per DIN 3124, ISO 2725
• Socket, hex, metric, long, as per DIN 3124, ISO 2725
• Socket recessed TX
• Spark plug socket 3/8" with pressed-in holding rubber and extra drive hex Size 21
• Spark plug socket 1/2" with pressed-in holding rubber and extra drive hex Size 24
• Screwdriver bit socket 1/4", for hex screws, with pressed-in, phosphate pin
• Screwdriver bit socket 1/4", slotted, with pressed-in, phosphate pin
• Screwdriver bit socket 1/4" PH with pressed-in, phosphate pin
• Screwdriver bit socket 1/4" PZ with pressed-in, phosphate pin
• Screwdriver bit socket 1/4", TX, with pressed-in, phosphate pin
• Screwdriver bit socket 1/4" TX with drill hole, with pressed-in, phosphate pin
• Sliding T-bar with slider 1/4", as per DIN 3122, ISO 3315
• Socket extension 1/4" + 3/8" + 1/2"
• Universal joint 1/4" + 3/8" + 1/2", screwed-on joint , acc. to DIN 3123 - C 12,5
• Convertor/slider 3/8" x 1/2" for driving sockets and screwdriver bit sockets
• Bit adaptor 1/4", with in-square and in-hex, for all bits and tools with a 1/4" external hex
• Bit adaptor 3/8", with female square and in-hex, for all bits and tools with 5/16" external hex
• Bit adaptor 1/2", with female square and in-hex, for all bits and tools with 5/16" external hex
• Bit 1/4" TX BO, TX security, BO, keyway, XZN for holder as per DIN 1173, ISO 6.3
• Bit 5/16", in-hex, slotted, PH, TX, TX BO for holder as per DIN ISO 1173 - D 8
• Cranked socket key set, as per DIN ISO 2936
• Ideal for all jobs with maintenance work, for trades people or in the workshop
• Chrome-vanadium steel, matt satin chrome-plated

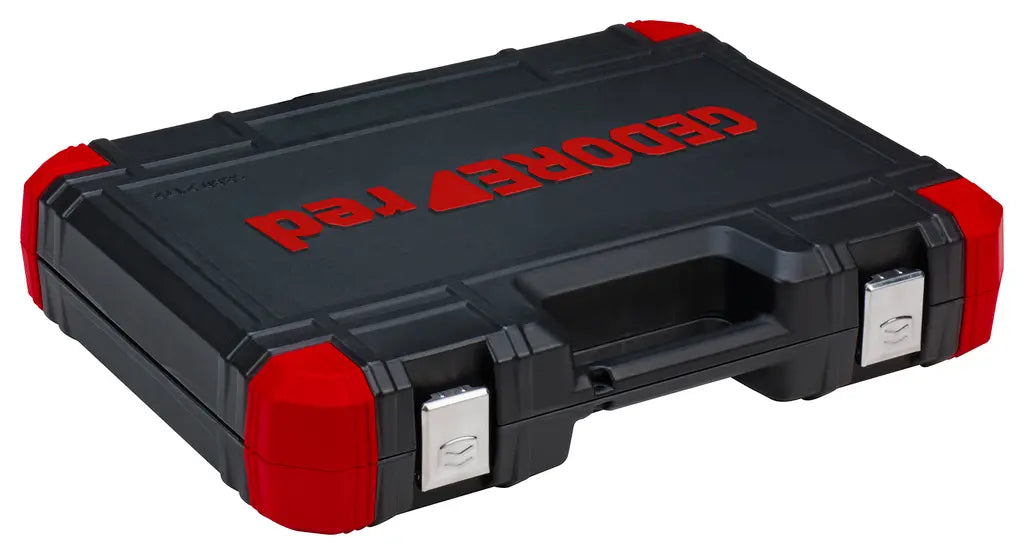

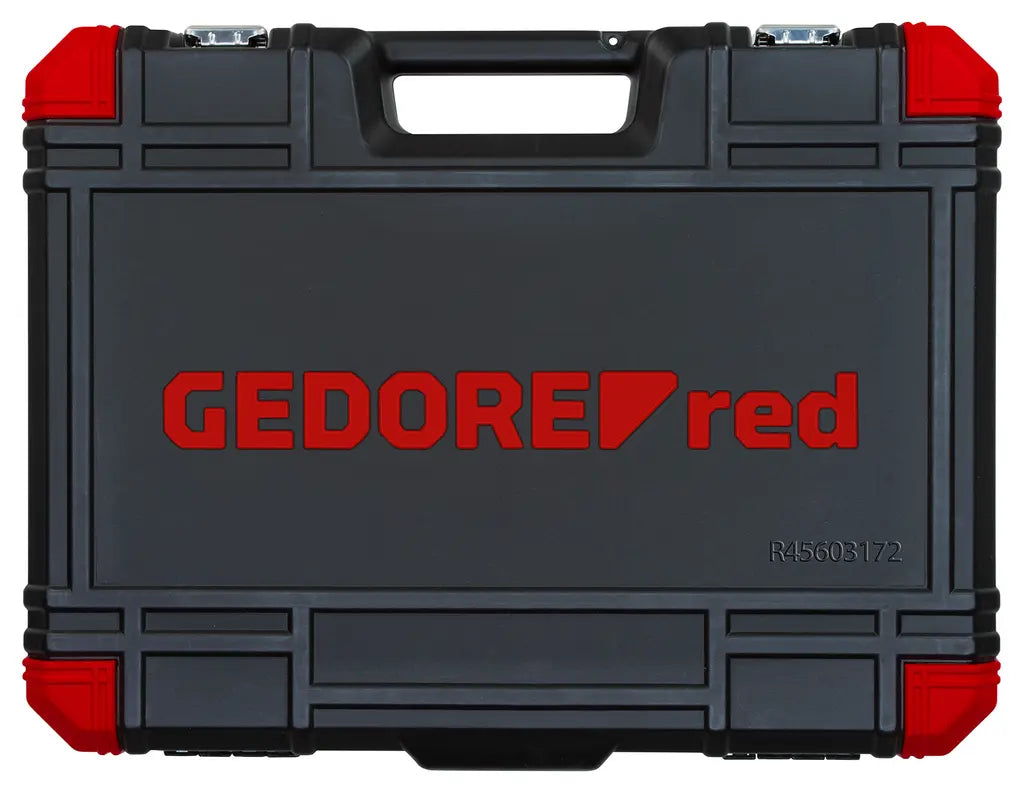

• Plastic case in GEDORE red Design
• Clamp-secured tools

Set Includes:

• 1/4" 2C lever reversible ratchet, fine-toothed - 72 teeth - 150mm, 1/4" Square plug-in handle 165mm, 1/4" Socket wrench insert hexagon SW - 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 - 25mm, 1/4" Socket wrench insert hexagon SW - 4, 5, 6, 7, 8, 9, 10 - 50mm, 1/4" Socket wrench insert TX - E4, E5, E6, E7, E8 - 25mm, 1/4" Screwdriver bit socket hexagon socket 3, 4, 5, 6 - 37mm, 1/4" Screwdriver bit socket slotted 4, 5.5, 6.5, 7 - 37mm, 1/4" Screwdriver bit socket cross-slotted PH 0, 1, 2 - 37mm, 1/4" Screwdriver bit socket cross recess PZ 0, 1, 2 - 37mm, 1/4" Screwdriver bit socket TX - T8, T9, T10, T15, T20, T25, T27, T30 - 37mm, 1/4" Screwdriver bit socket TX with bore T8, T9, T10, T15, T20, T25, T27, T30 - 37mm, 1/4" Socket wrench extension 50, 100mm, 1/4" T-Handle with slider - 115mm, 1/4" Universal joint - 32mm, Bit adapter 1/ x 1/4" hex - 25mm, 1/4" Bits TX - T5, T6, T7 - 25mm, 1/4" Bits TX with hole T7 - 25mm, 1/4" Bits TX plus security T10, T15, T20, T25, T27, T30, T40, T45 - 25mm, 1/4" Bits multi-tooth XZN M5, M6, M8 - 25mm, 1/4" Bits keyway M5, M6, M7, M8, M9 - 25mm, 5/16" Bits hexagon socket 7, 8, 10, 12, 14 - 30mm, 5/16" Bits slotted 8, 10, 12 - 30mm, 5/16" Bits cross recess PH 3, 4 - 30mm, 5/16" Bits cross recess PZ 3, 4 - 30mm, 5/16" Bits TX - T40, T45, T50, T55, T60, T70 - 30mm, 5/16" Bits TX with bore T40, T45, T50, T55, T60, T70 - 30mm, 3/8" 2C lever reversible ratchet, fine-toothed - 72 teeth - 180mm, 3/8" Socket wrench insert hexagon SW - 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 3/8" Socket wrench insert hexagon SW - 10, 11, 12, 13, 14, 15 - 63mm, 3/8" Socket wrench insert TX - E10, E11, E12, E14, E16, E18, 3/8" Spark plug insert SW 18mm - 65mm, 3/8" Socket wrench extension 150mm, 3/8" Universal joint - 49mm, Bit adapter 3/ x 5/16" hex - 30mm, 1/2" 2C lever reversible ratchet, fine-toothed - 72 teeth - 250mm, 1/2" Socket wrench insert hexagon SW - 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32, 1/2" Socket wrench insert 6 -kant SW - 16, 17, 18, 19, 22 - 77mm, 1/2" Socket wrench insert TX - E20, E24, 1/2" Spark plug insert SW - 16, 21mm - 65mm, 1/2" Socket wrench extension 125, 250mm, 1/2" Universal joint - 66mm, Enlarging piece / sliding piece 3/8" x 1/2"- 44mm, Bit adapter 1/2" square x 5/16" hex - 38mm, Offset screwdriver set hexagon SW - 1.5, 2, 2.5, 3, 4, 5, 6mm

Specifications:

• Piece Count: 172
• Square Drive Size: 1/2", 3/8", 1/4"
• Overall Weight: 23.15 lbs
• Overall Height: 93mm
• Overall Length: 450mm
• Overall Width: 345mm
