Gedore Set of 3 1.04/HP3A-B 2-Arm High Power Hydraulics Universal Puller with Protection - GD 3461815
The universal puller is a robust and versatile hand tool designed for removing gears, bearings, pulleys, and other press-fit components from shafts safely and efficiently. Its adjustable arms and high-strength construction allow it to adapt to various sizes and shapes, making it ideal for automotive, industrial, and workshop applications. Constructed from forged, heat-treated steel with a corrosion-resistant finish, the universal puller delivers strength, durability, and reliable performance for professional mechanics and technicians.

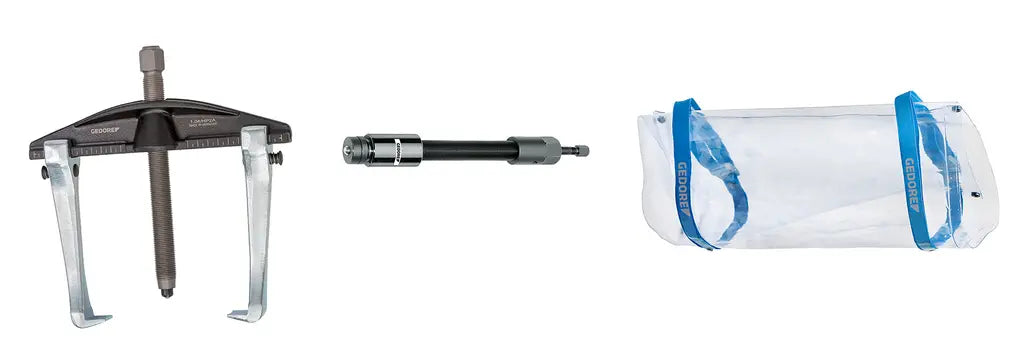

Set Contains:
- 1.04/HP2A-B Puller, HIGH POWER 2-arm span width 200mm x span depth 150mm, 1.06/HSP1 Hydraulic pressure spindle for 1/2" thread, 10 t maximum load 5.10, Safety cover 510mm x 915mm
Features:
- Crosshead specially hardened and tempered, withstands high forces, load with double tensile force possible
- Strong, drop forged design
- Puller hook forged from one piece
- With hook brake - safety device against unintentional slipping of the hooks
- The hook can be moved on the crosshead at the push of a button
- Can be used as external and internal puller by repositioning the hooks
- Adjustment scale for even adjustment of the puller hooks
- Allows centric and force-optimized pull-off even at highest pull-off forces
- Grease hydraulics for controlled and force-saving pull-off
- Includes protective foil
Specifications:
- Maximum Clamping Width: 202mm
- Maximum External Pulling Clamping Width: 202mm
- Minimum Clamping Width: 62mm
- Maximum Internal Pulling Clamping Width: 252mm
- Minimum Internal Pulling Clamping Width: 113mm
- Number of Contents: 3
- Depth of Hooked Foot: 34mm
- Hook Foot Thickness At The Tip 2 E1: 10mm
- Hydraulic Spindle: 1.06/HSP1
- Maximum Load of the Entire Puller: 10 t
- Overall Weight: 13.23 lbs
- Number of Arms: 2
- Spindle Thread Size: 1/2 in
- Thickness of Hooked Foot at Tip: 3.5mm
- Total Height: 200mm
- Total Length: 600mm
- Total Width: 300mm
- Maximum Tractive Force: 10 t
- Usable Clamping Reach: 150 / 70mm, 159mm
- Usable Depth of Hooked Foot D2: 22.5mm
- Width Across Flats: 22, 12, 32mm
- Width of Hooked Foot: 27.5mm
