Gedore Set of 69 1/2 in Socket, 8 - 24mm - GD 3300191
The socket set is a versatile and robust hand or power tool accessory designed for tightening or loosening fasteners, such as nuts and bolts. The specification refers to the size of the square opening (or drive) that connects to the matching drive of a ratchet, torque wrench, breaker bar, or power tool.
Features:
- Coupler in acc. with DIN 3120, ISO 1174, with ball locking device
- Square drive as per DIN 3120, ISO 1174, with ball retention groove
- 2C reversible ratchet, lever for reversible right and left hand operation, push button release, fine-toothed, oval head, dual-material handle, hands-friendly transfer of force, for sockets
- Socket, hex, metric, short, as per DIN 3124, ISO 2725
- Hexagon socket wrench insert, metric, long version to DIN 3124, ISO 2725
- Socket extension 1/2 in
- Cardan joint 1/2", joint screwed, design according to DIN 3123 - C 12.5
- Convertor/slider 3/8" x 1/2" for driving sockets and screwdriver bit sockets
- Double ring ratchet wrench, straight pattern, metric, fine toothed
- Combination wrenches metric to DIN 3113, form A, ISO 3318, ISO 7738, ring side angled 15 deg, jaw position 15
- Hexagon socket key set hexagon, ball end, long
- Offset screwdriver set TX long
- Screwdriver slotted, cross recessed PH
- Screwdriver slotted, with striking cap
- Phase tester, integrated glow lamp and series resistor for networks from 220- max. 250V
- Combination pliers, gripping zones for flat and round material, 2 component handle, gentle power transmission
- Water pump pliers, 7-way adjustable, head and joint brightly ground, 2 component handle, gentle power transmission
- Chromium vanadium steel
- Ideal combination for jobs with service work
- Chrome-vanadium steel, matt satin chrome-plated

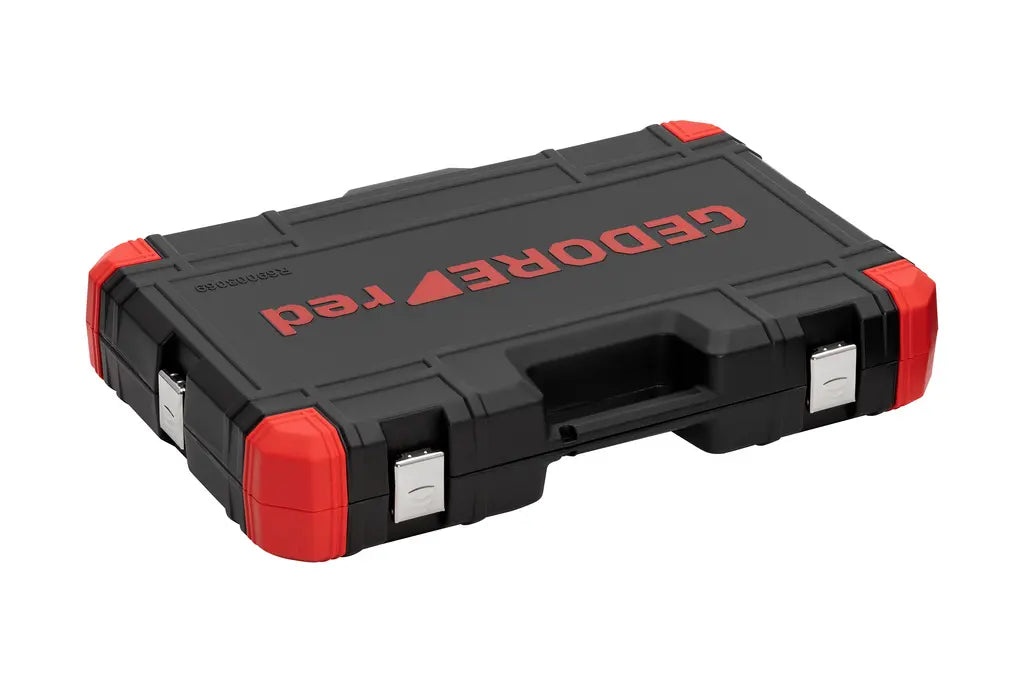

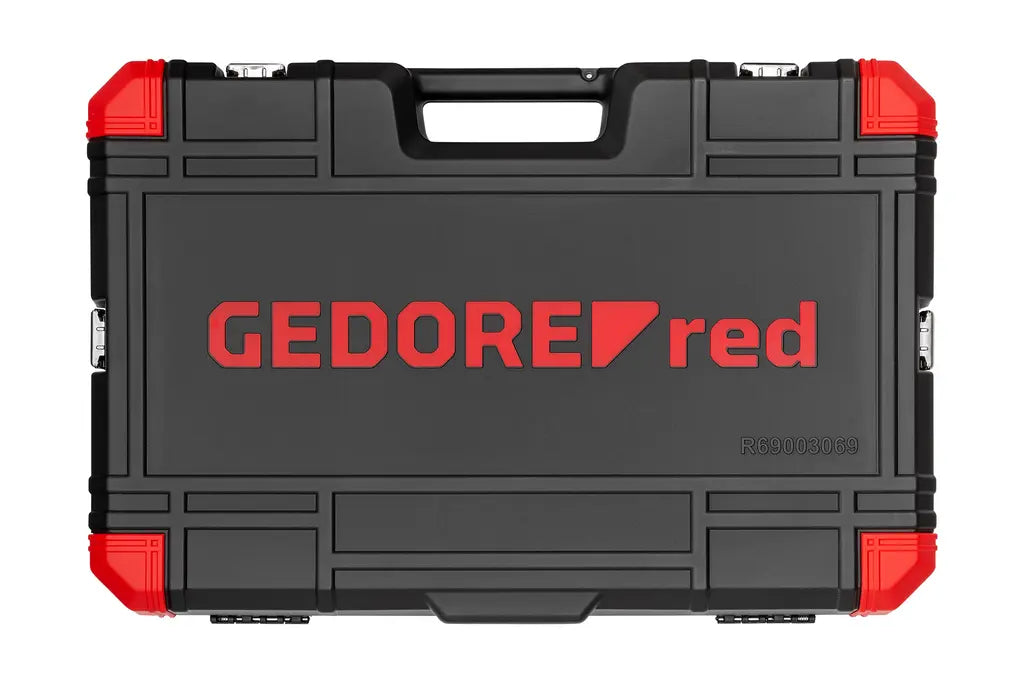

- Plastic case in GEDORE red Design
- Clamp-secured tools
- Metal hinges/closure

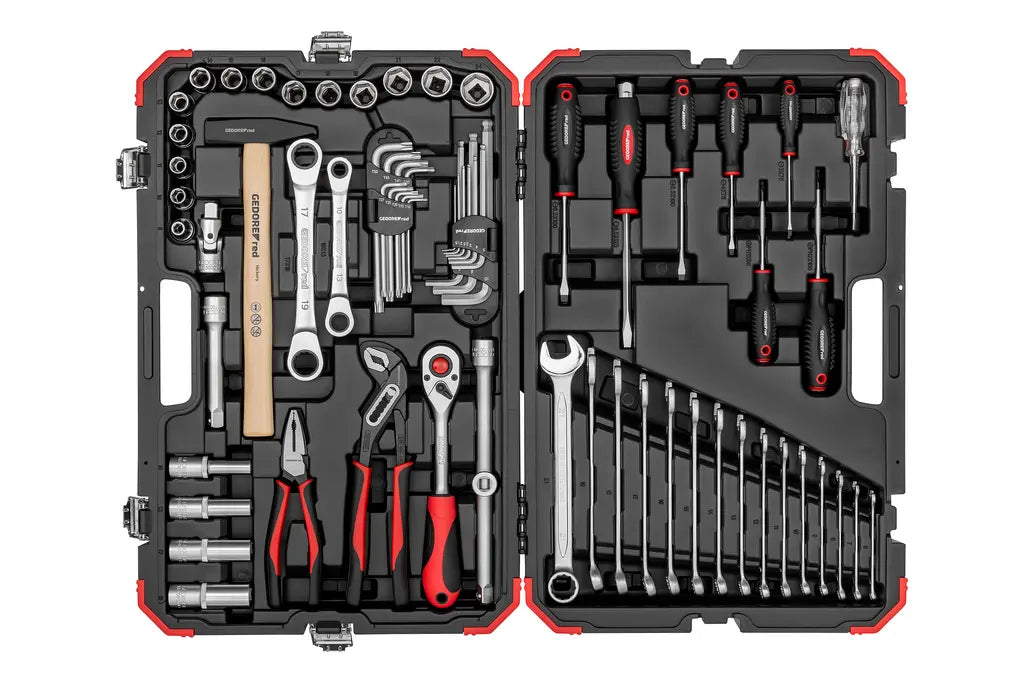

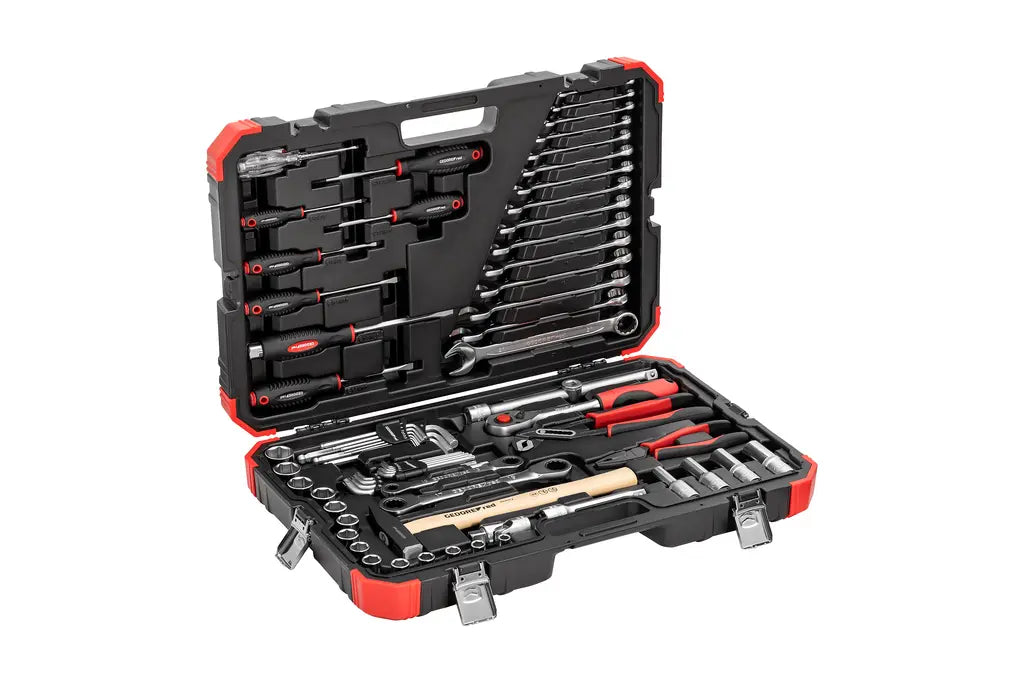

Set Includes:
- 2C Reversible Ratchet - right-hand/left-hand rotation can be switched by lever push-button release fine-toothed oval head 2-component handle hand-friendly power transmission for socket spanner inserts Socket hexagonal and metric short version to DIN 3124 - ISO 2725 - SW - 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24 - 38mm, Socket spanner insert - hexagonal and metric - long version to DIN 3124 - ISO 2725 - SW - 10, 13, 17, 19 - 77mm, Socket spanner extensions 1/2 L 125, 250mm, Cardan joint 1/2 screwed joint version to DIN 3123 - C 12.5, Enlargement adapter/sliding piece 3/8 x 1/2 for driving socket spanner and screwdriver sockets, Double ring ratchet spanner - straight form metric fine-toothed SW - 10 x 13mm, SW 17 x 19mm, Combination spanner metric to DIN 3113 - form A - ISO 3318 - ISO 7738 - jaw position 15 deg, ring side angled 15 deg, SW - 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 9-Piece long hexagon ball point socket set 1.5 - 10mm, 9-Piece Long Hexagon key L-wrench set TX. T10 - 50, Screwdriver slotted 3mm - 0.5 x 75mm, 4mm - 0.8 x 100mm. 5.5mm - 1 x 100mm, 6.5mm - 1.2 x 100mm, Screwdriver slotted with impact cap 6.5mm - 1.2 x 100mm, Phillips PH1 L80mm, PH2 L100mm, Phase tester - integrated glow lamp and series resistor for networks from 105- max. 250V, Combination pliers 180mm gripping zones for flat and round material 2-component handle hand-friendly power transmission, Water pump pliers - 7-position adjustable - polished head and joint - 2-component handle - hand-friendly power transmission, Locksmith's hammer 300g
Specifications:
- Piece Count: 69
- Overall Weight: 19.62 lbs
- Overall Height: 100mm
- Overall Length: 552mm
- Overall Width: 360mm
