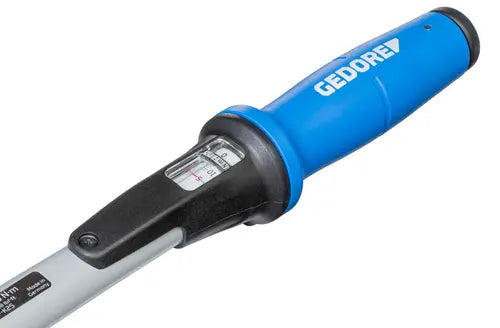

Gedore TF-SE25 Torque wrench TORCOFIX SE 9x12 5-25 Nm - GD 3288196

Gedore TF-SE25 Torque wrench TORCOFIX SE 9x12 5-25 Nm - GD 3288196

• Controlled screw tightening in the range of 5 - 400 Nm / 3,7 - 300 lbf·ft
• Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trade.

• Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
• Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
• For controlled right- and left-hand tightening (insert tool for change of direction)
• Square Drive with ejector aid in 9x12 mm and 14x18 mm versions
• Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
• New ergonomic handle, shaped according to the natural grip position of the hand
• Clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
• Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
• With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
• Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
• Scale line positioned directly above the scale prevents reading errors (parallax errors)
• Unit labeling integrated in the scale frame and also protected by viewing windows,
• The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
• Incl. roll away protection, prevents rolling away when the tool is put down

Technical characteristics

• Drive connector rectangular: 9 x 12

• Drive type/drive: Rectangular cavity

• Tightening direction: Links und Rechts

• Trigger mechanism: Short path triggering

• Torque (max.) [lbf·ft]: 18 lbf·ft

• Torque (min.) [lbf·ft]: 3,7 lbf·ft

• Torque (max.) [Nm]: 25 Nm

• Torque (min.) [Nm]: 5 Nm

• Range of application: Assembly Series assembly Production Maintenance and repair

• Calibration length: 261,5 mm

• Material: Steel tube construction with high-quality plastic parts

• vernier Nm: 0,1 Nm

• Precision +/-: +/- 3 %

• Test certificate: DIN EN ISO 6789-2:2017

• Safety: Fangarretierung

• Graduation [lbf·ft]: 1 lbf·ft

• Scale division [Nm]: 1 Nm

• Depth gauge [metric]: 17,5 mm
