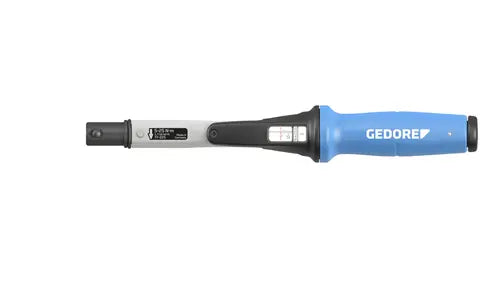

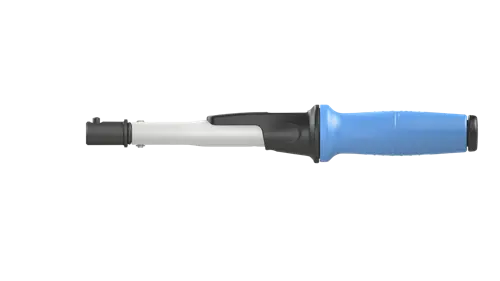

Gedore TF-Z25 TORCOFIX Z 5-25 Nm Z 16 - GD 3288293

Gedore TF-Z25 TORCOFIX Z 5-25 Nm Z 16 - GD 3288293

Product Use:

• Controlled screw tightening in the range of 5 - 25 Nm / 3,7 - 18 lbf·ft

• Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades


Product Features

• Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %

• Incl. traceable test certificate (DIN EN ISO 6789-2:2017)

• For controlled right- and left-hand tightening (change tool for changing direction)

• Pin Drive Ø 16 mm

• Working calibration pitch: 32 mm (Ø 16 mm)

• Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts

• New ergonomic handle, shaped according to the natural grip position of the hand

• Clearly recognizable and tactile hand centering aid and calibration aid in the middle of the handle

• Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window

• With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale

• Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers

• Scale line positioned directly above the scale prevents reading errors (parallax errors)

• Unit labeling integrated in the scale frame and also protected by viewing windows,

• The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached

• Incl. roll away protection, prevents rolling away when the tool is put down

Technical Characteristics

• Drive size [mm]: 16 mm

• Drive type/drive: Drive pin

• Tightening direction: Left and right

• Trigger mechanism: Short path triggering

• Receptacle width [mm]: 16 mm

• Torque (max.) [lbf·ft]: 18 lbf·ft

• Torque (min.) [lbf·ft]: 3,7 lbf·ft

• Torque (max.) [Nm]: 25 Nm

• Torque (min.) [Nm]: 5 Nm

• Range of application: Assembly Series assembly Production Maintenance and repair

• Fixed setting: No

• Lever length drive side [mm]: 32 mm

• Calibration length: 204,5 mm

• Material: Tubular steel construction

• Vernier Nm: 0,1 Nm

• Precision +/-: +/- 3 %

• Test certificate: DIN EN ISO 6789-2:2017

• Compliance: compliant

• Safety: Locking pin

• Graduation [lbf·ft]: 1 lbf·ft

• Scale division [Nm]: 1 Nm

• Depth gauge [metric]: 32,0 mm
