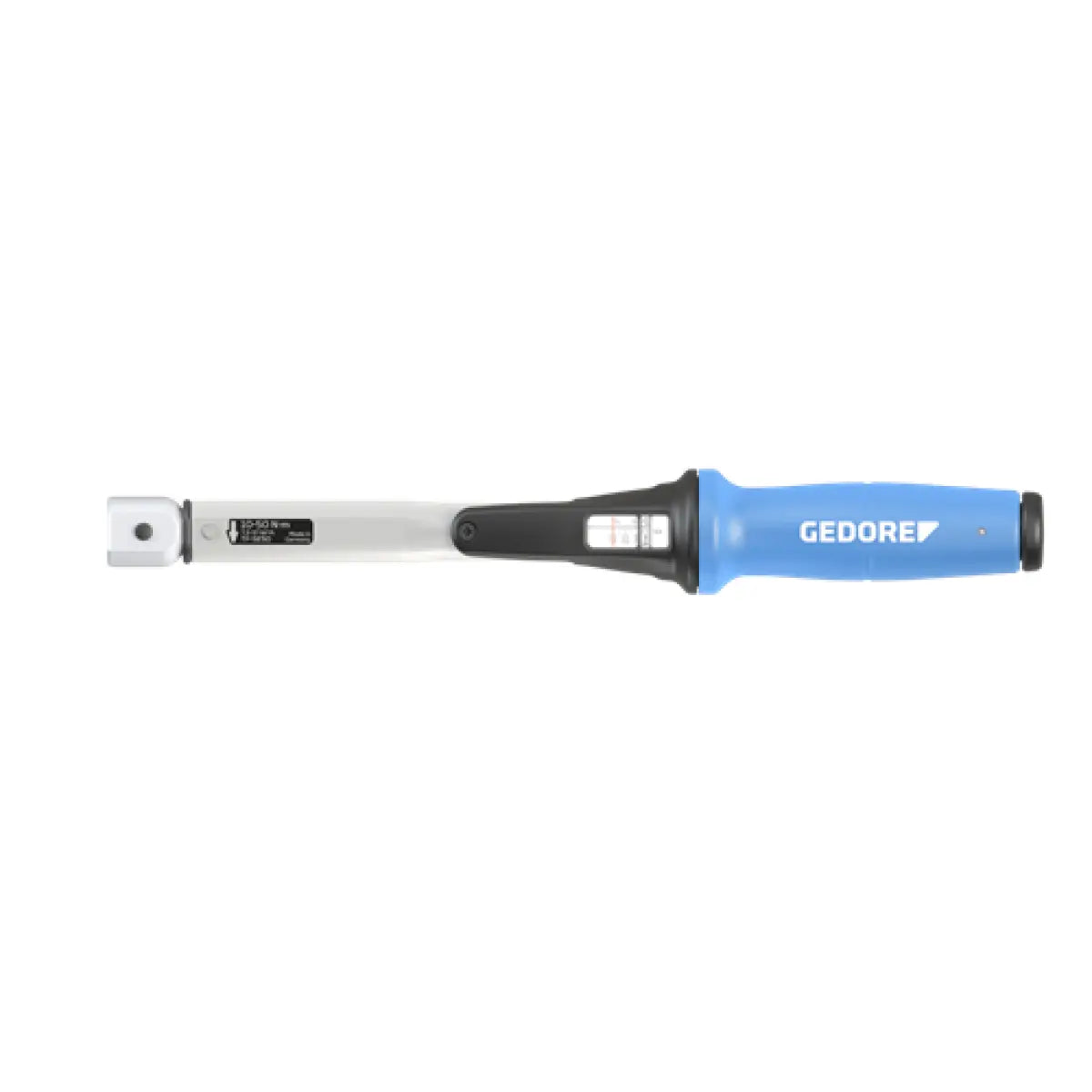

Gedore TORCOFIX SE TF-SE50 Torque Wrench, 9 × 12, 10 - 50 Nm - GD 3288218
Experience precision and reliability with the Gedore TORCOFIX SE TF-SE50 Torque Wrench. Engineered for accuracy, it features a robust design and easy-to-read scale, ensuring consistent torque application for various applications. Ideal for professionals and DIY enthusiasts alike, this torque wrench enhances safety and performance in every project.
Uses:
- Controlled screw tightening in the range of 5 - 400 Nm / 3.7 - 300 lbf.ft
- Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades
Features:
- Classified as per DIN EN ISO 6789-2:2017 Type II Class A, adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
- Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
- For controlled right- and left-hand tightening (insert tool for change of direction)
- Square Drive with ejector aid in 9×12 mm and 14×18 mm versions
- Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
- New ergonomic handle, shaped according to the natural grip position of the hand
- Clearly recognizable and tactile hand centering aid and calibration aid in the middle of the handle
- Double scale Nm / lbf.ft and vernier are protected from abrasion and contamination by an enlarged viewing window
- With vernier scale for Nm main scale for setting intermediate scale values, lbf-ft setting only via main scale
- Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
- Scale line positioned directly above the scale prevents reading errors (parallax errors)
- Unit labeling integrated in the scale frame and also protected by viewing windows,
- The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
- Incl. roll away protection, prevents rolling away when the tool is put down
- Range of application - Assembly Series assembly Production Maintenance and repair
Specifications:
- Calibration Length: 236.5mm
- Depth Gauge: 17.5mm
- Rectangular Drive Connector: 9 x 12
- Drive Type: Rectangular Cavity
- Graduation: 25 lbf.ft
- Precision: +/- 3 %
- Scale Division: 2.5 Nm
- Test Certificate: DIN EN ISO 6789-2:2017
- Maximum Torque: 50 Nm
- Minimum Torque: 10 Nm
- Total Height: 39.8mm
- Total Length: 291.5mm
- Total Width: 39mm
- Trigger Mechanism: Short Path Triggering
- Vernier: 0.25 Nm
- Material: Steel Tube Construction with High-Quality Plastic Parts
- Weight: 0.75 kg
