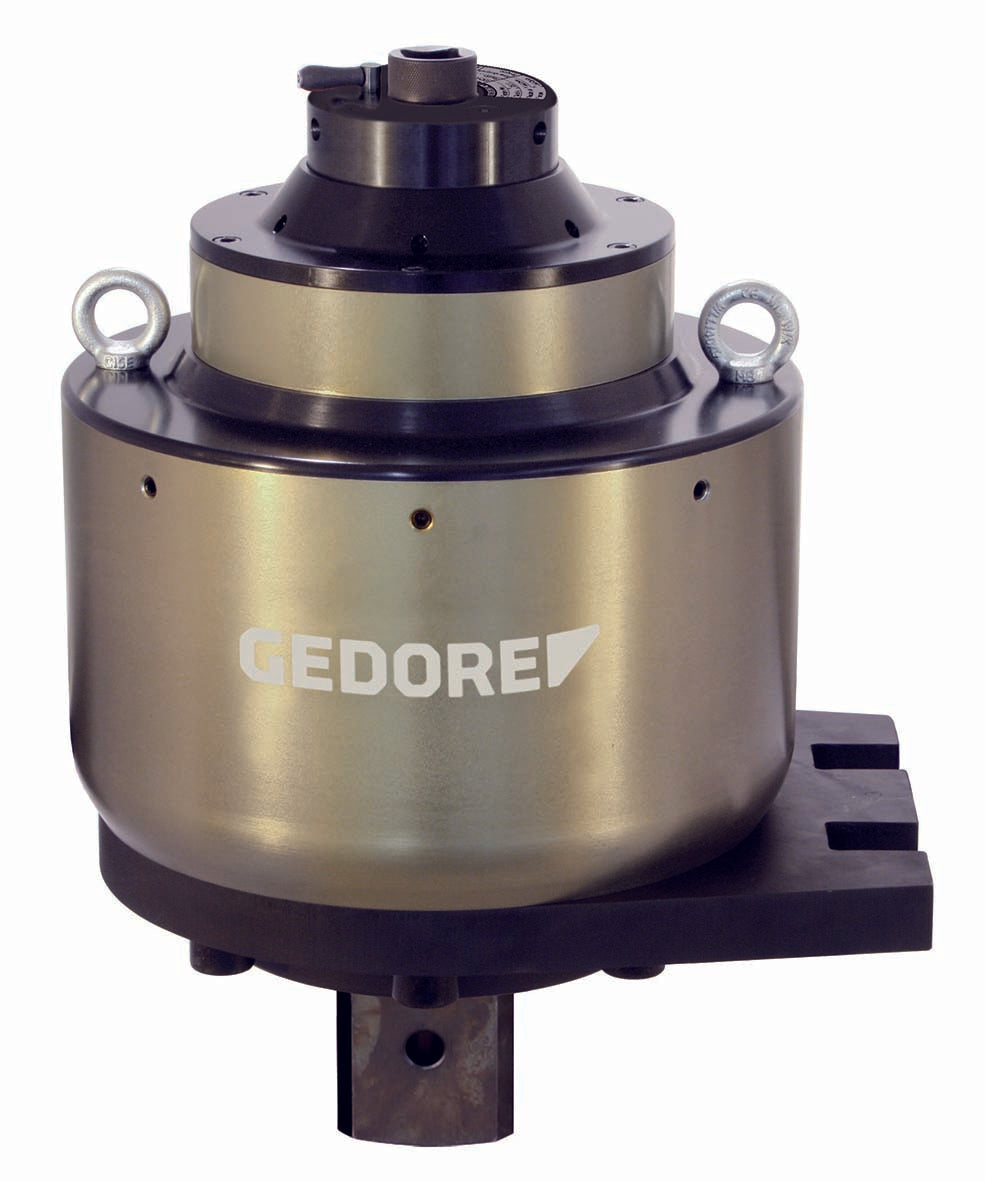

Gedore Torque Multiplier, Dremoplus Alu, 54000 Nm - GD 2653168

A Torque Multiplier is a powerful mechanical tool designed to increase the torque output applied to a fastener. It is essential for tasks requiring high torque levels that exceed the capability of a standard hand tool. By leveraging mechanical advantage, the Torque Multiplier enables users to apply greater torque with less effort, making it ideal for tightening or loosening stubborn bolts and nuts.

Features:

• Especially suitable for:
  • Heavy industry
  • Oil industry
  • Petrochemicals
• Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
• With a three-stage planet gear
• High-performance aluminum housing
• Reaction arm of chrome-vanadium steel
• Model with transmission ratio 1:175
• With anti-wind-up ratchet (RS)
• With non-destructive overload protection "Slipper" to protect the gearbox, right and left hand
• With fixture for welding on a reaction arm (optional)
• Guaranteed accuracy better than +/- 3 % tolerance
• To operate with a suitable torque wrench
• 1 Model with maximum load in the range of max. 54000 Nm
• Output square with hole for Impact sockets with locking pin and ring
• Torque multiplier DREMOPLUS ALU Delivery in stable box on pallet Adjustment table Detailed technical information is available on request

Specifications:

• Drive Connector Square: 3/4 in
• Drive Mount, Square: 6.3mm
• Input Torque (max.): 380 Nm
• Input Torque: 280 lbf.ft
• Multiplication at the Ratio: 1:175
• Weight: 142.44 lbs
• Nominal Length: 230mm
• Output Square Size: 2-1/2 in
• Output Torque (max.): 54000 Nm
• Total Height Without Reaction Arm: 415mm
• Total Length: 230mm
• Total Width Without Reaction Arm: 270mm
• Version: With Fixture for Welding on a Reaction Arm
• Version Reaction Arm: Without
