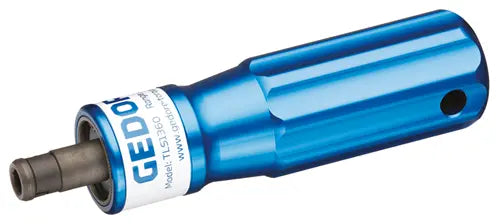

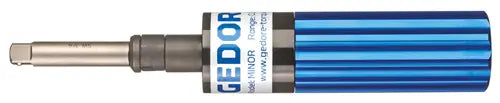

Gedore Torque Screwdriver FS 1/4" 2-135 cNm - GD 1471465

Gedore Torque Screwdriver FS 1/4" 2-135 cNm - GD 1471465

Use:

• Controlled screw tightening in the range of 14 - 135 cNm

• Serial manufacture with constant tightening value

• Electronic industry, precision mechanics and industrial manufacturing

Features:

• Pre-set torque screwdriver - without scale

• With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3

• Working accuracy: +/- 6 % tolerance of set torque

• Acc. to DIN EN ISO 6789, traceable to national standards

• Precision radial ball clutch and cam design for controlled bi-directional tightening

• Precision mechanism slips very noticeably when the pre-set value is achieved

• Automatic resetting to the starting position

• Lightweight construction by virtue of anodised aluminium handgrips

• The pre-setting can be made at the factory or by the user on suitable torque testers

• If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)

• Handles available in blue, red, green, or gold anodized

Scope of delivery:

• Torque Screwdrivers

• Model No. TLS 1360 FH with additional T-handle for easier work

• Test certificate acc. to DIN EN ISO 6789

• Delivery in sturdy cardboard packaging

Technical characteristics

• Drive connector hexagon [metric]: 6,3 mm

• Drive connector hexagon [inch]: 1/4"

• Drive type/drive: Bitholder

• Tightening direction: Left and right

• Trigger mechanism: Friction clutch

• Torque (max.) [cNm]: 135 cNm

• Torque (min.) [cNm]: 14 cNm

• Range of application: Assembly Production Quality control Series assembly
• Maintenance and repair

• Epa-/Esd-Model: No

• Fixed setting: Yes

• Precision +/-: +/- 6 %

• Test certificate: DIN EN ISO 6789-2:2017

• Cross-handle available: No

• Compliance: compliant
