Gedore Torque Wrench Dremometer, 8564-01 E 1 in 750-2000 Nm - GD 7695250

SKU: GD 7695250

Now:

$4,747.82
$5,275.36
$4,747.82
10% OFF
UPC:

Product Description

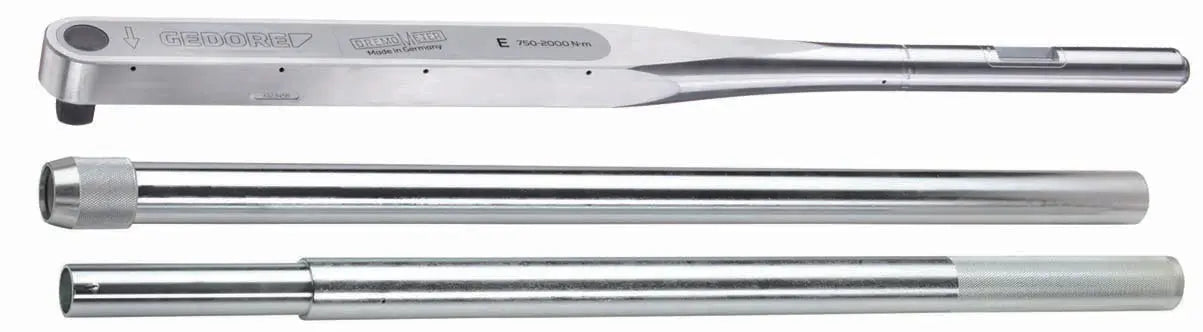

Gedore Torque Wrench 8564-01 Dremometer, E 1 in 750-2000 Nm - GD 7695250

8564-01 DREMOMETER E 1" 750-2000 Nm

A Torque Wrench Dremometer is a precision tool designed to measure and apply specific torque values to fasteners, ensuring accurate and consistent tightening. This specialized instrument combines the functionality of a traditional torque wrench with advanced measurement capabilities, making it ideal for tasks that require exact torque specifications.

Features:

  • Socket:
    • Controlled screw tightening in the range of 750 - 2000 Nm
    • For use in almost all industrial manufacturing areas
  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
  • 1" square drive with pin-locking mechanism DIN 3120 - B 25, ISO 1174
  • Automatic short-path actuation with tactile impulse and audible signal
  • Single scale with a scale graduation of 50 Nm
  • Technical advantage/Function:
    • Lightweight yet robust (as the housing is made of an aluminum alloy) and resilient, very workshop-friendly
    • No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
    • Both the square drive and fulcrum are on an axis which ensures a high degree of user safety, can be extended to reduce the user's working load
    • Extremely low wear attributable to reduced forces in a lever mechanism
    • Forged lever chain from our group own quality forge
    • Maximum precision even when subjected to extreme continuous use
    • Long life cycles and tool lives
    • Easy operation - fast and safe torque tightening
    • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
    • Single- and double-square drive for controlled bi-directional tightening
  • Extension tube 8564-92 8572-74
  • Storage/Content - Karton

Specifications:

  • Calibration Length: 2213mm
  • Distance Housing - Square Drive: 30mm
  • Drive Connector Square: 1 in
  • Drive Type: Single Square Rigid
  • Head Height: 40mm
  • Length Extension Tube: 925mm
  • Length of Slip-On Tube: 745mm
  • Material: Aluminum Alloy
  • Weight: 26.46 lbs
  • Nominal Height: 71mm
  • Nominal Length: 932mm
  • Nominal Width: 60mm
  • Precision: +/- 3 %
  • Range of Application: Assembly Maintenance and Repair
  • Scale Division: 50 Nm
  • Standard: DIN 3120 - B 25 ISO 1174
  • Test Certificate: DIN EN ISO 6789-2: 2017
  • Tightening Direction: Ratchets
  • Torque (max.): 2000 Nm
  • Torque (min.): 750 Nm
  • Torque Wrench Type: E
  • Total Height: 71mm
  • Total Length: 932mm
  • Total Width: 60mm
  • Trigger Mechanism: Short Path Triggering
  • Width of Head: 60.0mm
