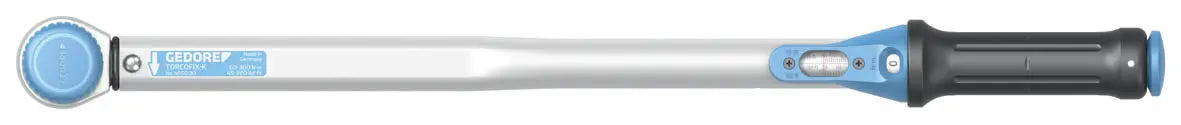

Gedore Torque Wrench, Torcofix K 40-200 Nm - GD 7601610

A Torque Wrench is a precision tool designed to apply a specific amount of torque to a fastener, such as a bolt or nut. It ensures that the fastener is tightened to the correct specification, preventing damage and ensuring safety. Essential for mechanical and automotive work, the Torque Wrench is crucial for achieving accurate and consistent torque settings.

Features:

• Socket:
  • Controlled screw tightening in the most widely used range of 1 - 850 Nm / 0.75 - 630 lbf.ft (guide for screws M3-6.9 to M24-8.8, M30-5.6)
  • Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades
• Classified as per DIN EN ISO 6789-2:2017 Type II Class A Type II Class A, adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 % (4549-00 +/- 6 %)
• Includes traceable test certificate
• For controlled r.h and l.h. fastening
• 1/4", 3/8", 1/2" mushroom head square socket with ball lock. From 3/4" with square socket and pin retention
• Sturdy, varnished tubular steel construction, with zinc-plated ratchet head and top-grade plastic parts
• Ergonomically shaped, convenient black plastic handgrip with calibration aid
• Dual scale Nm and lbf.ft below a window with a magnifying-glass effect
• With micrometer scale for main Nm scale for setting interim values
• Release system triggers a tactile and audible signal
• Ergonomic system for torque adjustment

Specifications:

• Calibration Length: 394.2mm
• Distance Housing - Square Drive: 22mm
• Drive Connector Square: 1/2 in
• Drive Type: Mushroom Head
• Graduation: 10 lbf.ft
• Head Height: 36mm
• Weight: 2.96 lbs
• Nominal Height: 51.6mm
• Nominal Length: 485.5mm
• Nominal Width: 44mm
• Number of Teeth: 48
• Precision: +/- 3 %
• Range of Application: Assembly Maintenance and Repair
• Return Angle: 7.5 degree
• Scale Division: 10 Nm
• Test Certificate: DIN EN ISO 6789-2: 2017
• Tightening Direction: Links and Ratchets
• Torque (max.): 200 Nm
• Torque (min.): 40 Nm
• Total Height: 45mm
• Total Length: 485mm
• Total Width: 52mm
• Trigger Mechanism: Short Path Triggering
• Width of Head: 44.0mm
• Vernier: 1 Nm
