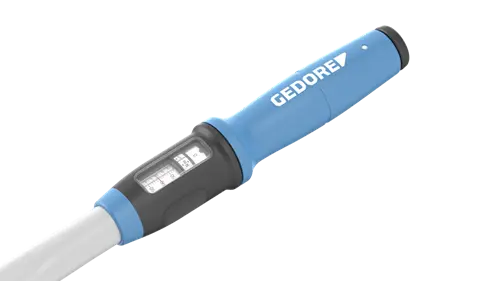

Gedore Torque wrench TORCOFIX Z 16 40-200 Nm TF-Z200 - GD 3278581

Gedore Torque wrench TORCOFIX Z 16 40-200 Nm TF-Z200 - GD 3278581

• Use:
• Controlled screw tightening in the range of 5 - 850 Nm / 3,7 - 630 lbf·ft
• Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades
• Features:
• Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
• Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
• For controlled right- and left-hand tightening (change tool for changing direction)
• Pin Drive in Ø 16 mm and Ø 22 mm versions
• Factory depth gauge: 32 mm (Ø 16 mm) or 56 mm (Ø 22 mm)
• Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
• New ergonomic handle, shaped according to the natural grip position of the hand
• Clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
• Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
• With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
• Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
• Scale line positioned directly above the scale prevents reading errors (parallax errors)
• Unit labeling integrated in the scale frame and also protected by viewing windows,
• The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
• Incl. roll away protection, prevents rolling away when the tool is put down

Technical Characteristics

• Drive size [mm]: 16 mm
• Drive type/drive: Drive pin
• Tightening direction: Left and right
• Trigger mechanism: Short path triggering
• Receptacle width [mm]: 16 mm
• Torque (max.) [lbf·ft]: 150 lbf·ft
• Torque (max.) [Nm]: 200 Nm
• Torque (min.) [lbf·ft]: 30 lbf·ft
• Torque (min.) [Nm]: 40 Nm
• Range of application: Assembly Series assembly Production Maintenance and repair
• Lever length drive side [mm]: 32 mm
• Calibration length: 401,3 mm
• Material: Steel tube (construction)
• vernier Nm: 1 Nm
• Precision +/-: +/- 3 %
• Test certificate: DIN EN ISO 6789-2:2017
• Safety: Stiftsicherung
• Graduation [lbf·ft]: 10 lbf·ft
• Scale division [Nm]: 10 Nm
• Depth gauge [metric]: 32,0 mm
