Gedore 2648644, Electronic torque wrench TorcoTronic III 1/2" SE 14x18 High
The Gedore 2648644, Electronic torque wrench TorcoTronic III 1/2" SE 14x18 High is available to order online. Contact us if you find the Gedore 2648644, Electronic torque wrench TorcoTronic III 1/2" SE 14x18 High at a better price.

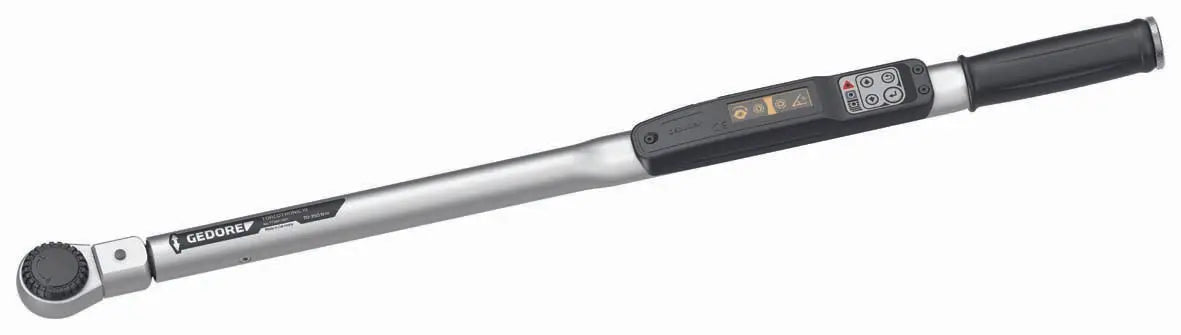

Electronic torque wrench TorcoTronic III 1/2" SE 14x18 High
For everyday requirements in installation and torque control. For use in all areas of manufacturing and development
Features:
- Microprocessor-controlled, electronic torque wrench. For controlled bi-directional tightening.
- Acc. to DIN EN ISO 6789, traceable to national standards.
- Robust workshop design.
- Broad measurement range in N.m, can be switched to lbf.ft. With 1/2 reversible ratchet.
- The ratchet is exchangeable, providing the option of using a 9x12 mm (TT3H 120) or 14x18 mm (TT3H 350) square socket
Characteristics:
- Torque and torque angle measure.
- 5 different measuring modes.
- 5 parameters storable.
- USB interface for data exchange.
- 2000 storage places.
- Measurement accuracy torque /- 1 %, /- 1 digit.
- Measurement accuracy torque angle /- 1 %, but min. /- 1 degree on 360 degree with min. 4 degree/sec.
- Different depth gauges for end fittings programmable.
- Simple to operate with easy to understand Icon-menu navigation and 4 functional keys.
- Clearly readable, illuminated LCD display.
- Resolution torque: 0.1 N.m. Resolution torque angle: 0.1 degree. PC-software easy to operate for uncomplicated programming and documentation of data.
- Data can be transfered to MS Excel®. Keyboard lock. Operation with standard Mignon AA or optional with rechargeable-battery (NiMH).
- Visual signal: 3x LED (yellow, green, red).
- Acoustic signal: buzzer. TUV certified, CE and RoHS. 2 models in the range 10 350 N.m.
- Test certificate acc. to DIN EN ISO 6789:2003 Type I Class C. Calibration to DAkkS-DKD-R 3-7, Class 1 (on request)
Scope of delivery:
- Electronic torque wrench TorcoTronic III HighLine.
- Reversible ratchet 1/2
- USB cable
- Software on CD-R. T
- est certificate acc. to DIN EN ISO 6789:2003 Type I Class C.
- Delivered in a transparent plastic box with insert
Note:
A PC, running a Windows® operating system (from Windows XP®) is required to obtain the full benefit of all the functions of this product.
Tech Specs:
- Drive Connector Square (Male):- 1/2 inch
- Range of Work / Measurement Nm (min/max):- 70-350 N.m
- Drive Connector Rectangular:- 14 x 18 mm
- Range of Work / Measurement lbf.ft (Min/Max):- 51,6-258,2 lbf.ft
- Packing Unit:- 1 Piece
- Weight:- 1.2 kg
- Drive Connector Square (Male) Nominal Size:- 12,5 mm
