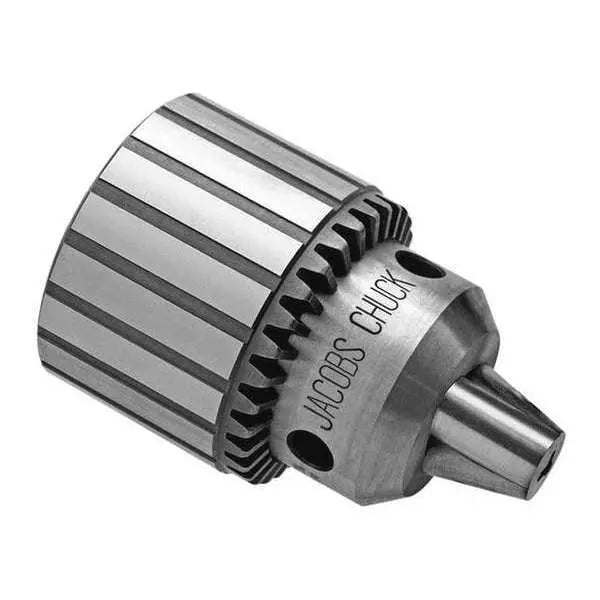

Jacobs 36B-5/8 in Plain Bearing Heavy Duty Keyed Chuck, 3/4 in - GW JCM6314
A Keyed Chuck refers to a type of mechanical device commonly used in various tools and machinery, particularly in the realm of drilling equipment. The term specifically applies to the chuck, which is the component responsible for holding and securing a rotating tool, such as a drill bit, in place.
Features:
- Jaws center ground for absolute straightness and alignment
- One piece sleeve eliminates crack between driving teeth often found in other designs
- Through hardened sleeve teeth, plus hardened nose and keyholes provide outstanding wear resistance
- Each chuck 100% inspected for performance and precision
- TIR 0.004 in maximum at half capacity
Specifications:
- Bearing Type: Plain Bearing
- Capacity: 0.19-0.8 in
- For Use with: Machine Tools
- Includes: Chuck Key
- Key Size: K4
- Keying: Keyed
- Material: Steel
- Material - Machining: High Speed Steel
- Maximum Drill Capacity: 0.80 in
- Minimum Drill Capacity: 3/16 in
- Mounting Size: 5/8 in -16
- Mounting Type: Threaded
- Nominal Capacity: 3/4 in
- Type: Heavy Duty
- Country of Origin: China
