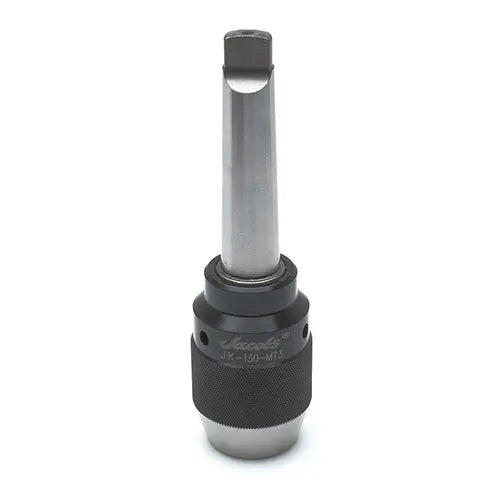

Jacobs JK130-MT3 High Torque/High Precision Keyless Drill Chuck with Integrated Shank, 13mm - GW 31409
A drill chuck is a mechanical device designed to hold and secure a drill bit or other rotary cutting tool during various machining or drilling operations. It serves as an essential component in the drilling process, allowing for the precise and stable attachment of the cutting tool to the spindle of a drilling machine or power tool.
Features:
- High precision - maximum total integrated run - out 0.0016"
- Integrated arbor design - arbor is integrated into the internal socket of the drill chuck
- Integrity - prevent an accidently separate of the arbor and the drill chuck
- Greater rigidity and precision - compact design eliminates accumulated tolerance
- Various mount options - morse tapers
Specifications:
- Length: 3.15 in/8mm
- Capacity (in): 0.04-0.51 in
- Capacity (mm): 1-13mm
- Nominal Capacity: 1/2 in
- Diameter: 1.89 in/48mm
- Keying: Keyless
- Model: JK130-MT3
- Mounting Size: MT3
- Mounting Type: Integral Morse Taper Shank
- Bearing Type: Ball
- Chuck Type: High Torque
- Material: Steel
- Material-Machining: High Speed Steel
- For Use With: Machine Tools
- Includes: Wrench
- Application: CNC Machines
- Country of Origin: Taiwan, Province of China
