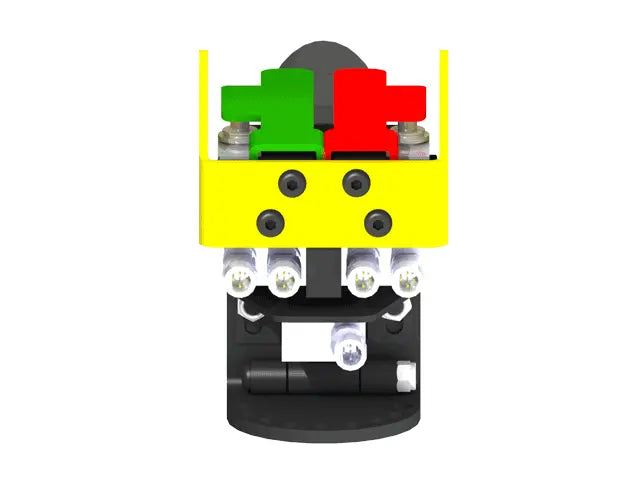

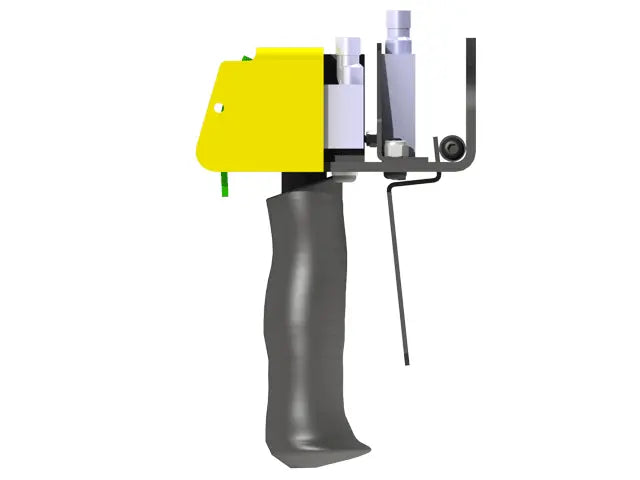

Knight Global 2-Speed Control Handle with Trigger - KG EPDTA9600
The Two-Speed control handle with trigger is a non-programmable handle. It is comprised of five switches to make up a (2) two-speed operation with trigger button by simply compressing the thumb levers. Halfway is one speed, fully compressed is the second speed. Units come with a standard mounting flange. You will need to specify the flange adaptor tube size for your end effector.
Features:
- Non-Programmable handle
- May be mounted remotely from the end effector
- (1) Switch trigger lever
- (2) Thumb lever configuration
- (2) Switches per thumb lever
- (1) Trigger lever
- BPD1125 Ergo grip

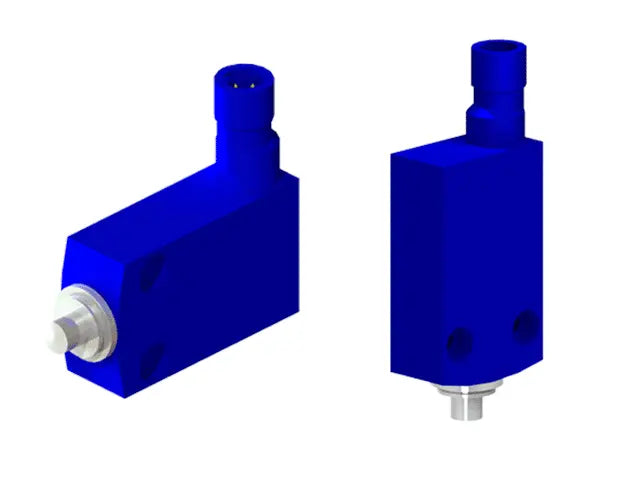

- (5) Single pole 240V, 3A limit switches
- Switches IP67
- UL Listed, CE Approved
- Various mounting options
- Cables - M12 4-pin female mating cables sold separately
- Strain cable / tether per application use
- Specify Mounting Collar Size: 0.88 in., 1 in., 1.25 in.
- Optional EPA9600 single speed control handle
- Optional EPTA9600 single speed control handle with trigger
- Optional EPDTA9600 two-speed control handle with trigger
- Optional color-coded thumb levers
- Optional angled thumb levers
- Custom lever markings, specify when ordering
- Different call-out languages available
Specifications:
