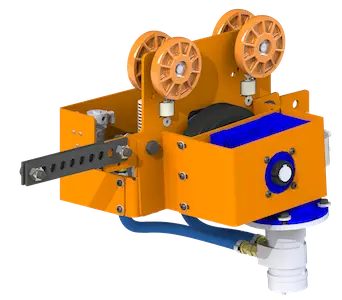

Knight Global Air Tractors for RAD6110 Series Rail, Capacity 2000 lbs - KG TRA5500-6110
Knight's Air Tractors provide mobility by towing bridges, fixtures and heavier loads. They are typically used to assist an operator to push, pull or position loads. Our tractors are designed to be used in conjunction with Knight workstation crane systems. The TRA2500 and TRA5500 are equipped with lube-free motors that require less maintenance and will have a longer expected service life. These motors are available on the TRA2500 and TRA5500 Series Air Tractors only. Tractors can be integrated with a pneumatic fixture allowing for multiple configurations such as: automatic return home, conveying of a load to the next position, and starting and stopping limits with the use of air logic.
Features:
- TRA1501 - TR2000 Series Rail
- TRA5500-6110 - travels inside RAD6110 Series Rail
- Integrated Load Trolley
- Lube-Free Motor
Specifications:
- Maximum Speed: 1.9 ft. per sec. [1.3mph]
- Maximum Towing Capacity: Up to 2000 lbs. [908kg]
- Maximum Air Consumption: 52 cfm
- MCBF: >500,000 (>10,000,000 Linear ft.)
- Product Weight: 89.4 lbs. [40.54kg]
Benefits:
- Less maintenance and longer service life expected by running on a lube-free motor
- Tows fixtures, bridges and loads
- Assists operator in pushing, pulling and positioning loads
- Integrating an Air Tractor with a pneumatic fixture allows for multiple control configurations such as: automatic return home, conveying of a load to the next position, and starting and stop limits, etc.
- Optional Control Pendants - TRA2001 (Hanging), TRA2002 (Fixture Mounted)
