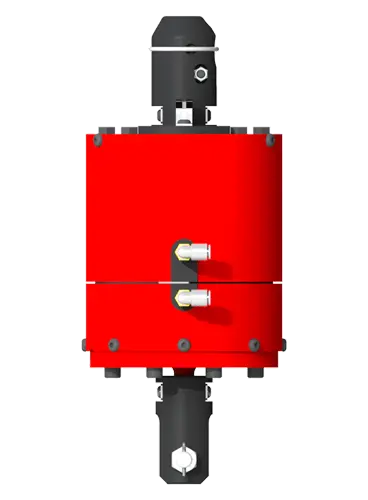

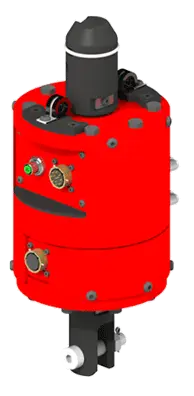

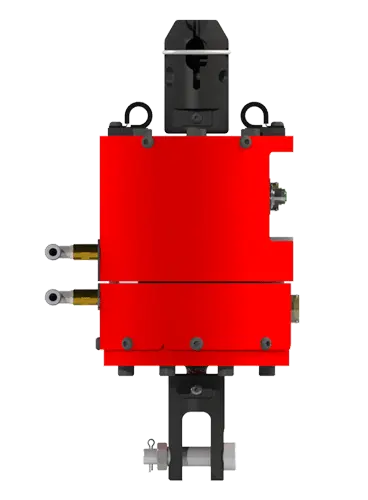

Knight Global Electropneumatic Rotary Unions for Speed Hoists, 1000 lbs Capacity, 1 Pneumatic Port - KG KSAA1071
Knight's Rotary Unions (patent pending) are designed for industrial automation equipment applications. Their primary function is to prevent airlines, electrical cables and SDS chains from winding or tangling up during operation which can greatly reduce downtime as well as any potential equipment damage. The Knight Rotary Unions are for speed hoists with a 750 lbs. or 1000 lbs. capacity. They include a 5mm chain nest for the S.D.S. chains as well as a Shackle. Used in conjunction with the variable speed pendants. The Rotary Union has (1) pneumatic passage. They both have 12-Pin M/F Amphenol connectors and an operating voltage of 24VDC up to 2 amps.
Features:
- Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage
- Used with the KSAA1110 or KSAA1119 variable speed pendants
- Operating Voltage: 24VDC up to 2 amps
- Sealed packaging to protect wiring, slip ring and rotate assembly
- (1) 12-Pin M23 male receptacle
- (1) 12-Pin M23 female receptacle
- Includes shackle
- (1) pneumatic passages (1/8 in NPT ports) to accommodate a variety of function commands
Specifications:
- Capacity: 1000 lbs. [454kg]
- Weight: 30 lbs
