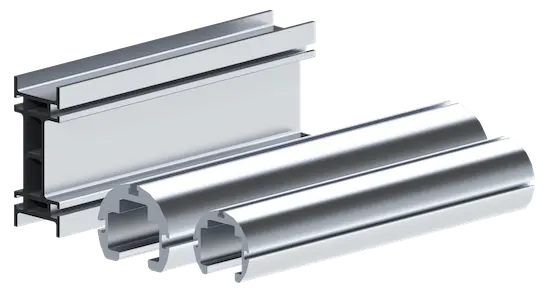

Knight Global Engineered Aluminum Rail Series, Capacity 300 lbs - KG LRD9500

The LRD9500 Engineered Aluminum Linear Rail is for post-mounted or floor-mounted applications that require low friction horizontal movements. It is capable of handling direct and offset loads. Linear engineered rail is a lower maintenance alternative to hardened ground rail and bearings blocks. Linear rail is most often mounted in horizontal configurations using carriage mounted pneumatic arms.

Features:

• Mechanical Properties: ASTM B221 6005-T5 Series Aluminum

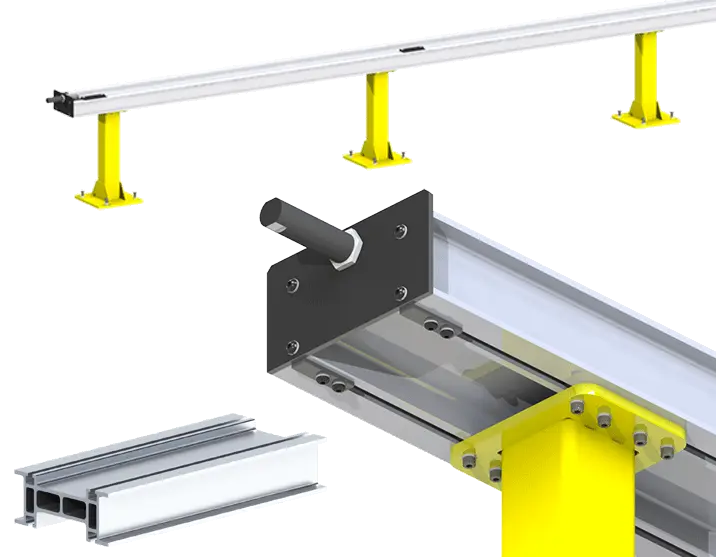

• Floor Mounted Post Configurations
• Supports carriages and pneumatic arms

Benefits:

• Multiple Pre-Assembled Accessories
• Carriages are designed for cantilevered and direct load applications

Specifications:

• Max Capacity: 300 lbs. [136kg]
• Weight: 9.8 lbs/ ft [4.45kg/m]

Rail Capacities

Note: Test data was performed within a controlled series of (5) push/pull tests. Wall mounted 4 ft cantilever.

Digital Assets:

• Brochure
• Installation Guide 1
• Installation Guide 2
• Installation Guide 3
• Installation Guide 4
• Installation Guide 5
• Installation Guide 6
• Manual
• Specification Sheet
