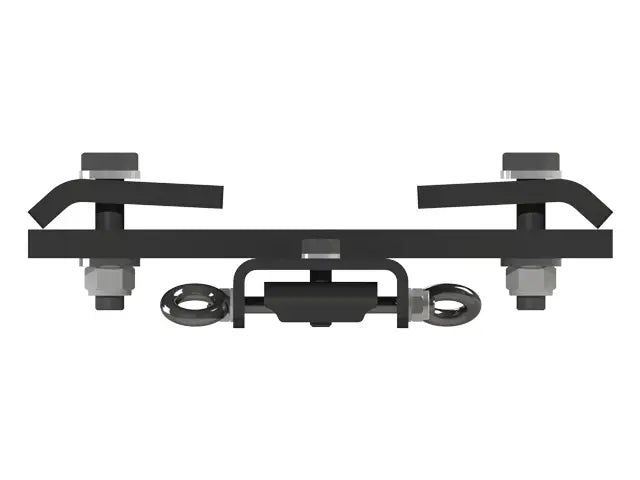

Knight Global Extreme Low Profile Parallel Rigid Hanger, 4 in - 8 in Flange - KG MRHS4503
Used for direct loads only, suspends Knight's RAD4110, RAD6110, or RAD7510 Series Aluminum Rail Systems. When using Knight's MRHS4503 Hanger, structural steel can only be run parallel to the Knight rail system.
Features:
- For Direct Loads Only
- Rigid Hanger
- Thicker flange beams will require modified hanger, available upon request
- Coated with an environmentally friendly corrosion protection. (Autophoretic ACC 900)
- Includes FDA4133 Safety Cable
Specifications:
- Structural Support Flange Size: 4 in - 8 in [101mm - 203mm]
- Max I-Beam Flange Thickness: 1/2 in
- Hanger Grip Range: 0.25 in - 0.5625 in [7mm - 15mm]
- Max Capacity: Up to 3500 lbs [1588kg]
- Weight: 20 lbs [9.07kg]
