Knight Global Heavy Duty Mid-Rail Stop with Shock - KG MRAA4498

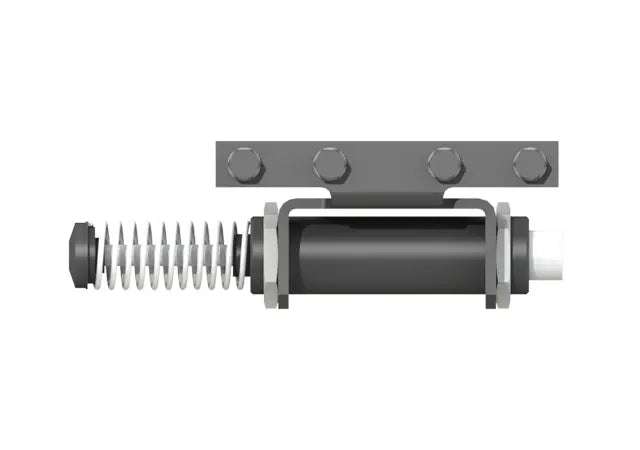

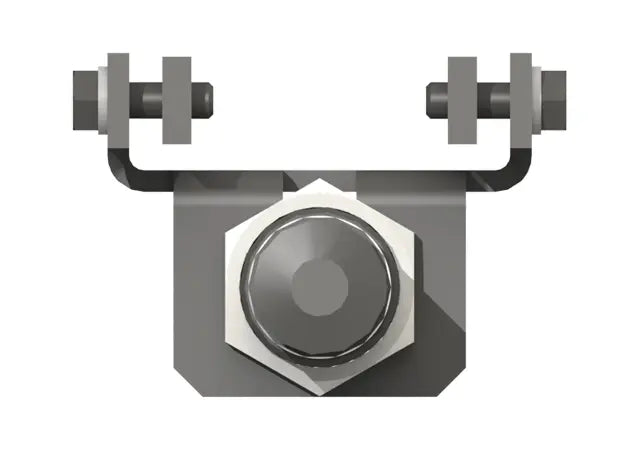

Knight Global's MRAA4498 Heavy Duty Mid-Rail Stop with Shock mounts inside of the RAD4110 Series Rail. The MRAA4498 Heavy Duty Mid-Rail Stop with Shock is typically used to separate the working area of a bridge or runway and/or to prevent the bridge from over travel. The MRAA4498 Mid-Rail with Shock absorbs up to 212 ft. lbs [288Nm] of striking force from the load trolley to reduce the impact on the mid-rail stop. Knight's MRAA4498 is required for applications using a Telescoping Bridge, Servo Hoist, or where the load trolley will frequently contact the mid-rail stop.

Features:

• Separates the working area of a bridge or runway and/or prevents a bridge from over travel
• Dampens the impact force of the load trolley striking the mid-rail stop

Specifications:

• Shock Absorbs: Up to 212 ft. lbs [288Nm]
• Shock Diameter: 1.38 in [35mm]
• Shock Length: 8.74 in [222mm]
• Weight: 4.1 lbs [1.86kg]
