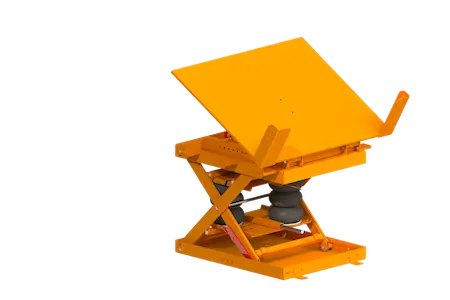

Knight Global Lift and Tilt Tables - KG LT4860
Knight Lift Tables raise loads to the proper ergonomic heights for an operator, helping to create a safe and efficient workplace. They reduce time lost to personnel injuries and help increase productivity. Lift Tables can be designed to fit a multitude of applications and come equipped with hydraulic steel fittings. Polished chrome shafts are used at all slide and pivot points to minimize the wear and prolong component life. We also offer optional stainless steel braided hydraulic hosing for increased durability. Maintenance Lock-Out Bars are standard on all Knight Global tables. All tables are inspected and tested before they leave our facility. Tables, Carts and Accumulators are available with a variety of accessories, safety features and equipment. Optional Safety Equipment including but not limited to: perimeter fence guarding, bellows skirting, safety mats, audible signals, light signals, toe guards, special control guarding, etc. These are not included unless otherwise stated in the product descriptions. Please check with your state, local or plant safety for requirements. We are happy to quote any and all safety equipment needed to meet your requirements.
Features:
- Gives the operator twice the ergonomic benefit by lifting and tilting loads to precise heights and angles
- Steel Construction
- Maintenance Lock-Out Bars
- Heavy Duty Pneumatic Air Bags
- Free-Standing Pedestal, Foot Control, or Bolt on Hand Controls
- ContiTech FLEXAGrip 400 P.SI. rubber hose / fittings system
- Polished Chrome Shafts at all Pivot and Slide Points
- Motion Stabilizer
- Max. Capacity: Up to 6,000 lbs. [2,721kg]
Options
- Steel Riser
- Pit Mounted (Angled Toe Guards, External Mounted Pit Guards or Auto Safety Bars are required)
- Corner Gusset Tabs (No Extra Charge)
- Ratchet Safety Stops
- Stainless Steel Hydraulic Hosing
- Bellows Skirting
- Custom Control Packages
Specifications:
| Part Number |
Capacity Lbs. [ kg. ] |
Closed ( A ) in. [ mm. ] |
Extended ( B ) in. [ mm. ] |
Base Size ( Lb x Wb ) in. [ mm. ] |
Platform Size ( Lp x Wp ) in. [ mm. ] |
Tilt |
| LT4860-4000 |
4,000 [ 1,814 ] |
16 [ 406 ] |
42 [ 1,066 ] |
38 x 50 [ 956 x 1,270 ] |
38 x 50 [ 965 x 1270 ] to 60 x 48 [ 1524 x 1219 ] |
0 to 40 deg |
| LT4860-6000 |
6,000 [ 2,722 ] |
16 [ 406 ] |
42 [ 1,066 ] |
38 x 50 [ 956 x 1,270 ] |
38 x 50 [ 965 x 1270 ] to 60 x 48 [ 1524 x 1219 ] |
0 to 40 deg |
| LT5684-4000 |
4,000 [ 1,814 ] |
17.25 [ 438 ] |
50 [ 1,270 ] |
42 x 62 [ 1067 x 1575 ] |
42 x 62 [ 1,066 x 1,575 ] to 84 x 56 [ 2,134 x 1,422 ] |
0 to 40 deg |
| LT5684-6000 |
6,000 [ 2,722 ] |
17.25 [ 438 ] |
50 [ 1,270 ] |
42 x 62 [ 1067 x 1575 ] |
42 x 62 [ 1,066 x 1,575 ] to 84 x 56 [ 2,134 x 1,422 ] |
0 to 40 deg |
