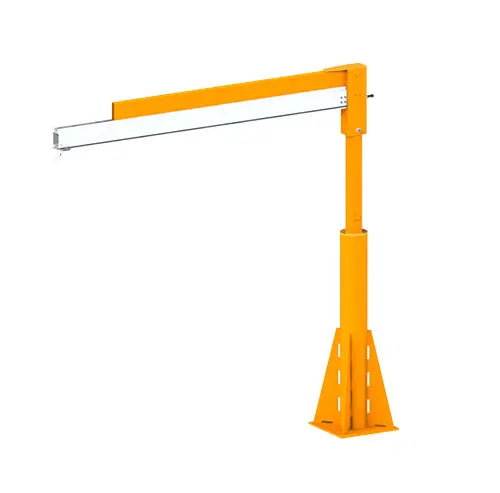

Knight Global Low Profile Jib Cranes, Capacity 865 lbs, 11 ft Rail Under Clearance - KG MJBA2600A11

Knight's Low Profile Jib Cranes are ergonomically designed to accommodate workstations where ceiling heights are inconvenient for an overhead crane system. This series offers a large tool coverage area with a single rotating rail on a floor-mounted pedestal. The MJBA2300 Low Profile Jib Cranes have an adjustable hard stop and a level adjustment screw used to adjust the pitch of the rail. They are considered Medium Duty Jib Cranes.

Features:

• For low headroom clearance applications
• Level Adjustment End Bracket used to adjust pitch of rail
• RAD7510 Series Rail Only
• Adjustable Hard Stop
• Max. Jib Length: Up to 12 ft [3.7m]
• Max. Under Rail Clearance Height: Up to 12 ft [3.7m]
• Max. Capacity: Up to 865 lbs. [392kg]
• NOTE: Capacities over 1,000 lbs [454 kg] require a Dual Load Trolley in applications that use chain or cable
• Custom Lengths Available Upon Request

Benefits:

• Eliminates need for overhead system
• Timken Tapered Roller Bearing
• McGill Cam Yoke Roller Bearing
• Optional MRES7522 Telescoping Rail
• Round post allows for 360 deg rotation

Specifications:

Digital Assets:

• Brochure
• Installation Guide 1
• Installation Guide 2
• Installation Guide 3
• Installation Guide 4
• Manual
• Specification Sheet
