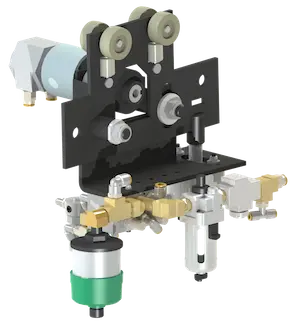

Knight Global Mini Air Tractor for RAD4110 Series Rail - KG TRA1500
Knight's Air Tractors provide mobility by towing bridges, fixtures and heavier loads. They are typically used to assist an operator to push, pull or position loads. Our tractors are designed to be used in conjunction with Knight workstation crane systems. The TRA1500 and TRA1501 Mini Air Tractor provides mobility by towing bridges, fixtures and loads. These Mini Tractors are typically used to assist an operator to push, pull or position loads. The TRA1500 Tractor is designed to be used in conjunction with Knight's RAD4110 aluminum rail system, as the TRA1501 Tractor is to be used with the Knight's TR2000 aluminum rail systems. Tractors can be integrated with a pneumatic fixture allowing for multiple configurations such as: automatic return home, conveying of a load to the next position, and starting and stopping limits with the use of air logic.
Features:
- TRA1500 - RAD4110 Series Rail
- Integrated Load Trolley
Specifications:
- Maximum Speed: 3.5 ft. per sec. [2.4mph]
- Maximum Towing Capacity: Up to 300 lbs. [136kg]
- Maximum Air Consumption: 27 cfm
- MCBF: >250,000 (>5,000,000 Linear ft.)
- Product Weight: 22.9 lbs. [10.39kg]
Benefits:
- Tows fixtures, bridges and loads
- Assists operator in pushing, pulling and positioning loads
- Integrating an Air Tractor with a pneumatic fixture allows for multiple control configurations such as, automatic return home, conveying of a load to the next position, and starting and stop limits, etc.
Digital Assets:
