Knight Global Overhead Carriage Mounted Vertical Servo Arms - KG KSHVA

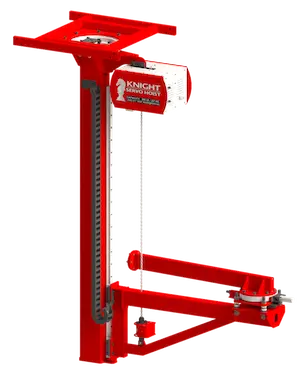

Knight KSHVA Overhead Carriage Mounted Vertical Servo Arms are Intelligent Assist Devices (IAD) that enable an operator to reach outside the area directly below a rail system and to precisely locate or float loads in the "Z" direction (vertical axis) with speed and reliability. The Vertical Servo Arms allow for a non-linear overhead varied reach within a work cell or station. Knight's Servo Hoist technology becomes an extension of an operator's natural movements and greatly improves accuracy, responsiveness and repeatability; which increases overall safety, productivity and quality. The inherent benefits include: eliminating wasted motions, reduced reaction times, and minimal effects of inertia with heavy loads.
Note: All capacities exclude the weight of the jib and the boom. Lifting capacities are calculated starting from the load cell (end of the chain).
Mechanical:
- Speeds: Up to 241 ft. per min. [60mpm]
- Floor Mounted Pedestal Heights: 8 ft. [2.4m] - 10 ft. [3.0m]
- Safety Rating of 125%
- Fail Safe Brake
- Knight's Patented Chain, for longer life
- Chain Length, Unlimited (18 ft. Standard)
- Sealed Worm Style Gearbox
- H5 Rated (Continuous Duty Cycle)
- (1) EBA1393 Precision Gauge Included
Software:
- Programming and Diagnostic Communication Ports
- Virtual Travel Limits
- Speed Reduction Zones
- Impact Limiting
- Active Dampening
- Standard Float Mode
- Programmable Overload Capability
Electrical:
- Industry Standard 24 VDC, 2 AMP power is available for custom tooling such as: Clamps, Vacuum Cups, Switches, Proximity Limits, Lights, etc
- Illuminated Run/ Stop Button
- 240 VAC, Single Phase 50/60 Hz
- Load Sensing, Pay Load and Handle Load
- I/O Capabilities:
- (16) Inputs/ (8) Outputs
- (8) Inputs/ (4) Outputs are free for interface controls
- LED Status Indicators, Green and Blue Lighted Push buttons
- LED Fault Indicators, Illuminated Run/ Stop Button, Twist to Release
Specifications:
| Part Number |
Capacity lbs [kg] |
Maximum Speed ft/min. [m/min] |
Voltage / Phase |
| KSHVA250S-2401 |
250 lbs. [113kg] |
197 ft/min. [60 m/min] |
240 / 1 Phase |
| KSHVA350S-2401 |
350 lbs. [159kg] |
241 ft/min. [74 m/min] |
240 / 1 Phase |
| KSHVA750S-2401 |
750 lbs. [340kg] |
123 ft/min. [38 m/min] |
240 / 1 Phase |
| KSHVA1000S-2401 |
1000 lbs. [454kg] |
82 ft/min. [25 m/min] |
240 / 1 Phase |
