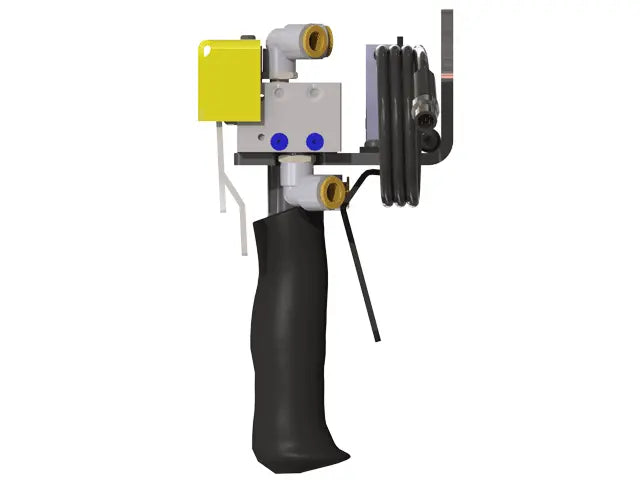

Knight Global Pneumatic Control Handle with Electric Trigger, (4) Thumb Lever, (4) 1-Button SMC Valve Block, 3-Way Valves - KG GMBPETA9330

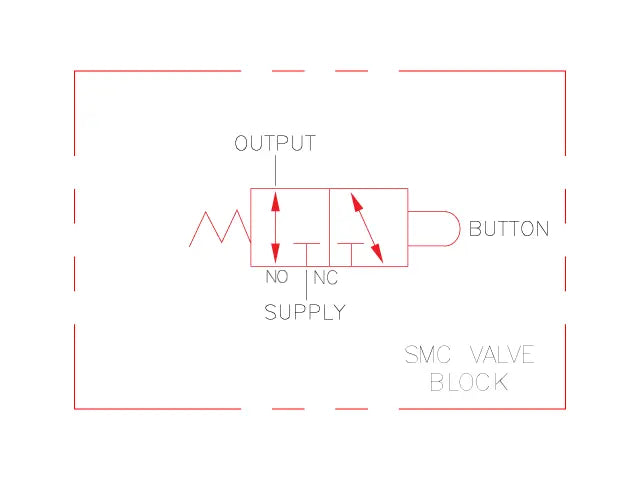

The GMBPETA9330 Pneumatic Control Handle with Electric Trigger is an pneumatically operated control handle that contains (4) thumb levers, (4) 1-button SMC valve blocks that have 3-way valves used for a single acting balancer or a lift assist used for UP/DOWN movements and (1) 5-Pin Micro Single Pole Limit Switch for the rear trigger lever that has 1-N/O (Normally/Open) and 1-N/C (Normally/Closed) contacts.

Features:

• (4) Thumb Lever Configuration
• (1) Trigger Lever

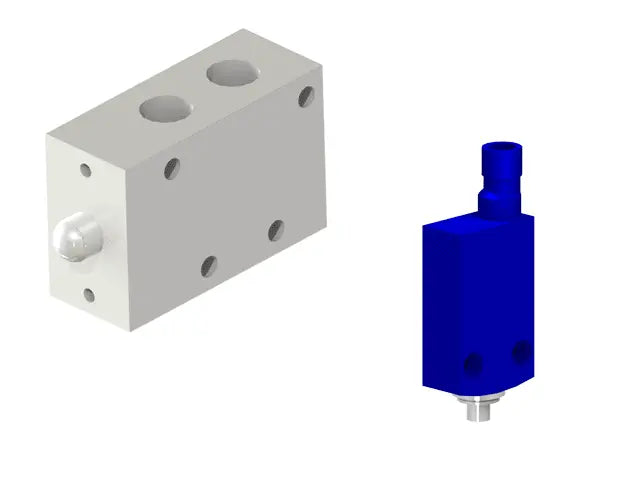

• (4) 1-button SMC Valve Blocks
• (1) Trigger Single Pole Limit Switch
• BPD1125 Ergonomic Grip
• 10mm Pneumatic fittings are included
• Comes standard with 3.3 ft. [1m] of cable. Additional cable lengths can be purchased separately
• Optional Pneumatic Trigger Lever Series

Specifications:

• GM Number: ARZ86315S

Digital Assets:

• Bill of Material
• Specification Sheet
