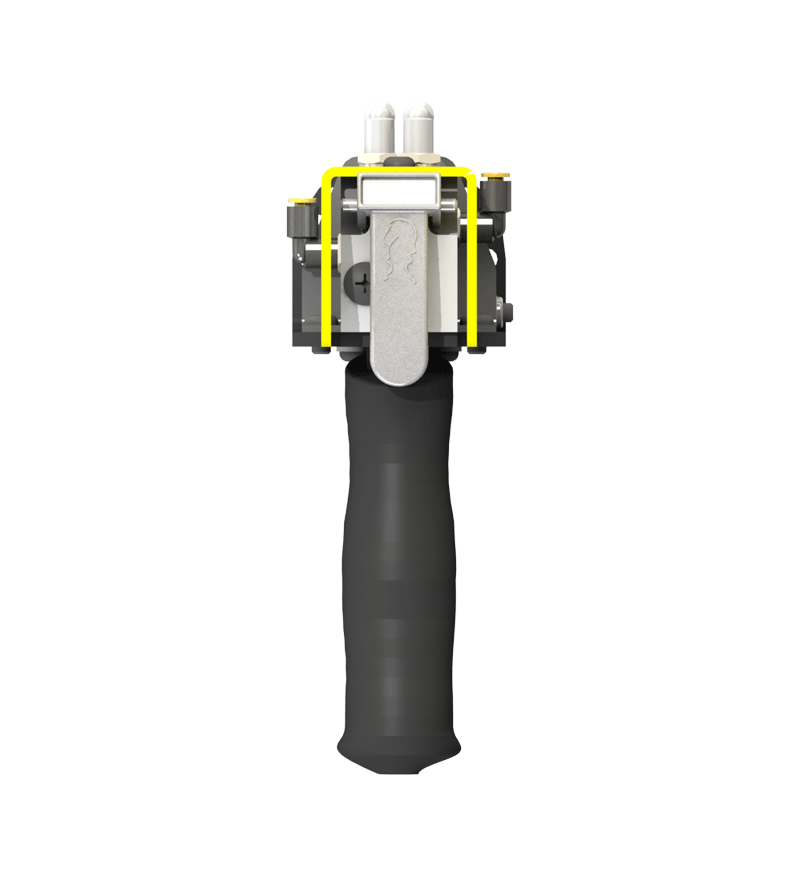

Knight Global Pneumatic Control Handle with Pneumatic Trigger, (1) Thumb Levers, (1) 1-Button - KG BPTA9400

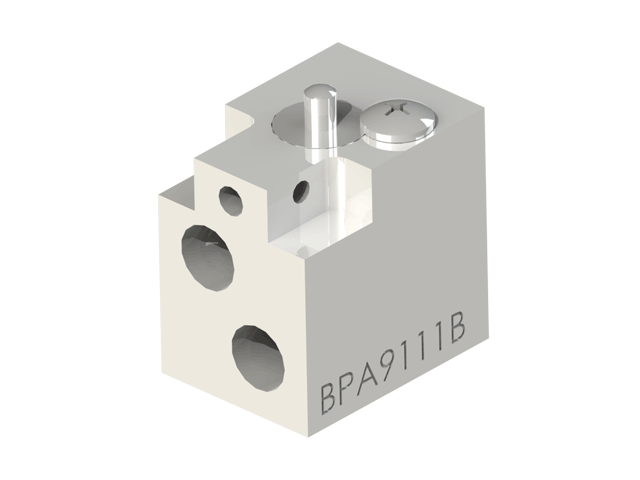

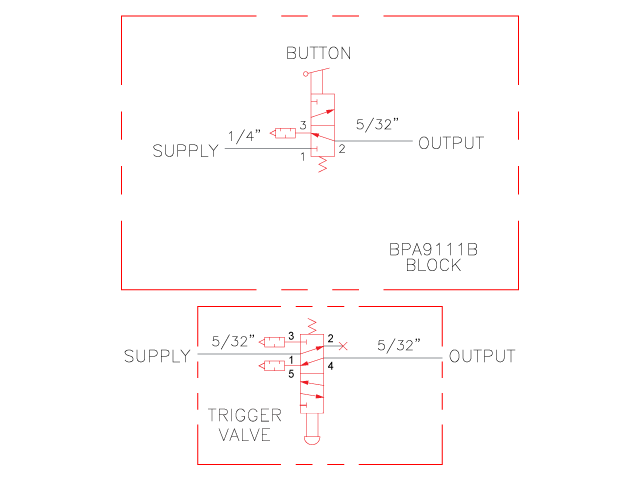

The BPTA9400 is a pneumatically operated control handle that contains (1) thumb lever, (1) 1-button BPA9111 valve block that has 3-way valves used for sending common pilot signals and (1) 4-way valve rear trigger lever used for sending common pilot signals.
Features:
- (1) Thumb Lever Configuration
- (1) Trigger Lever
- (1) 1-button BPA9111 Valve Block
- (1) Trigger Valve
- BPD1125 Ergonomic Grip
- Pneumatic fittings are included
- Optional Color-Coded Thumb Levers
- Optional Angled Thumb Levers
Specifications:
- Valve Block NPT Port Size: 1/4 in. [6.3mm]
- Weight: 2.8 lbs [1.28kg]
