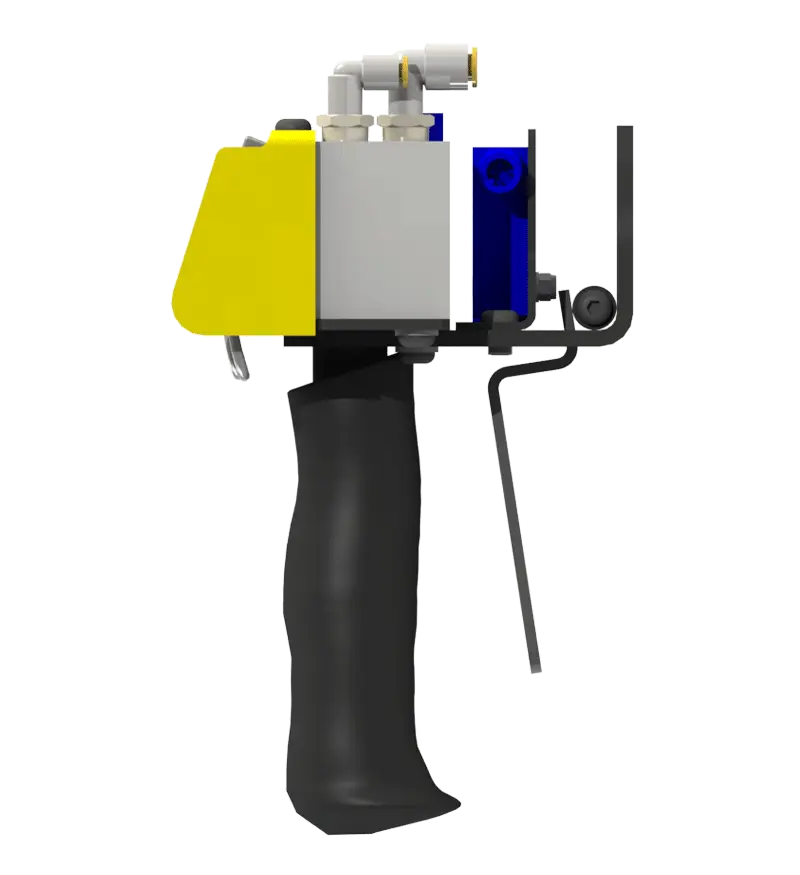

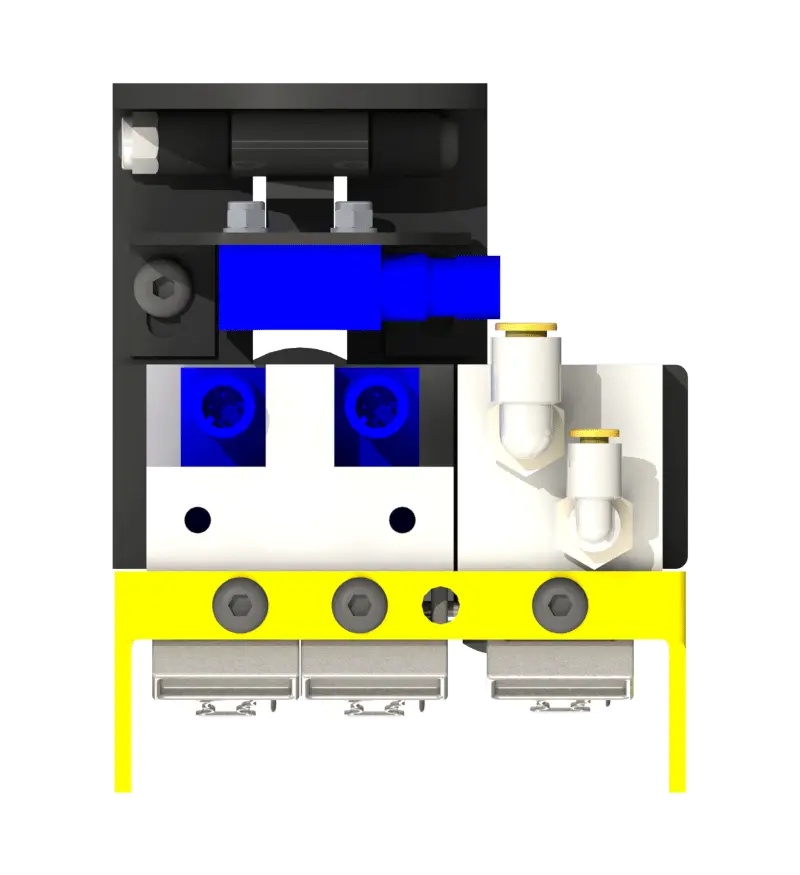

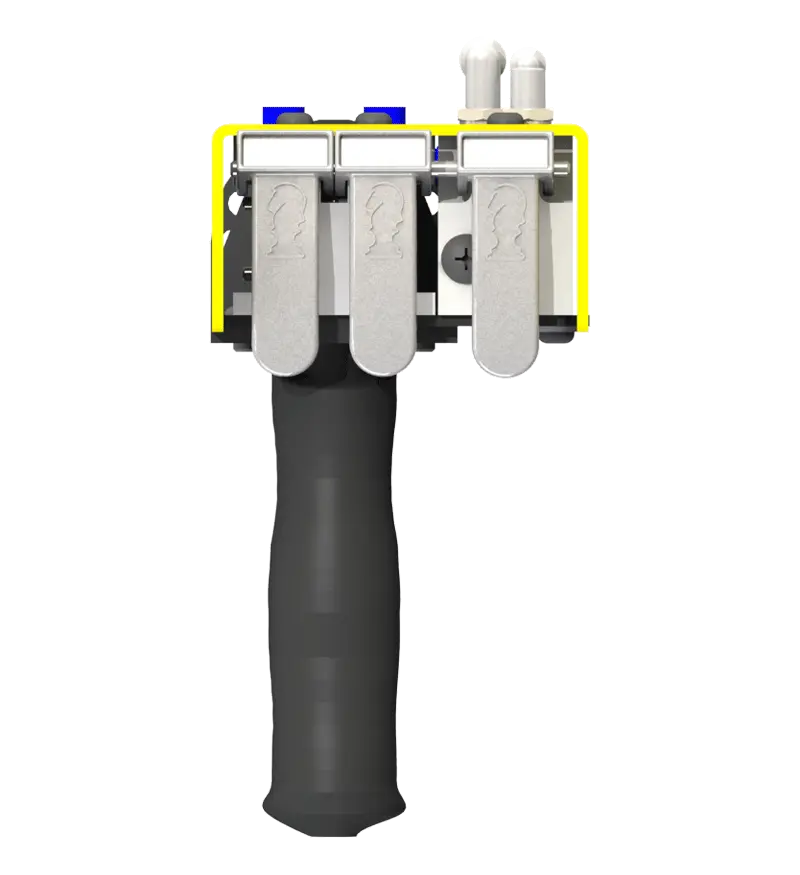

Knight Global Pneumatic-Electric Control Handle with Electric Trigger, (3) Thumb Levers, (2) 4-Pin Micro Limit Switch, (1) 1-Button Valves - KG EPETA9640
The EPETA9640 is an electronically and pneumatically operated control handle that contains (3) thumb levers, (2) 4-Pin Micro Single Pole Limit Switches with (1) N/O (Normally/Open) and (1) N/C (Normally/Closed) contacts, (1) 1-button BPA9111 valve block that has 3-way valves used for sending common pilot signals and (1) Single Pole Limit Switch for the rear trigger lever.
Features:
- (3) Thumb Lever Configuration
- (1) Trigger Lever
- (2) 4-Pin Micro Single Pole Limit Switches

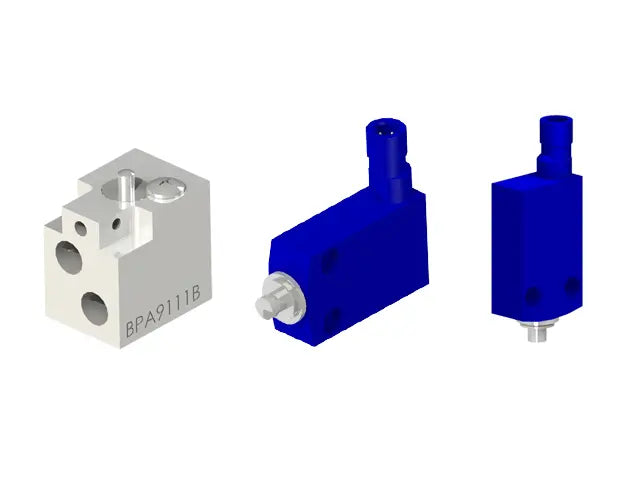

- (1) 1-button BPA9111 Valve Block
- (1) Trigger Single Pole Limit Switch
- BPD1125 Ergonomic Grip
- Pneumatic fittings are included
- Optional Color-Coded Thumb Levers
- Optional Angled Thumb Levers
- Optional Pneumatic Trigger Lever Series
Specifications:
- Valve Block NPT Port Size: 1/4 in. [6.3mm]
- Weight: 4.0 lbs. [1.82kg]
