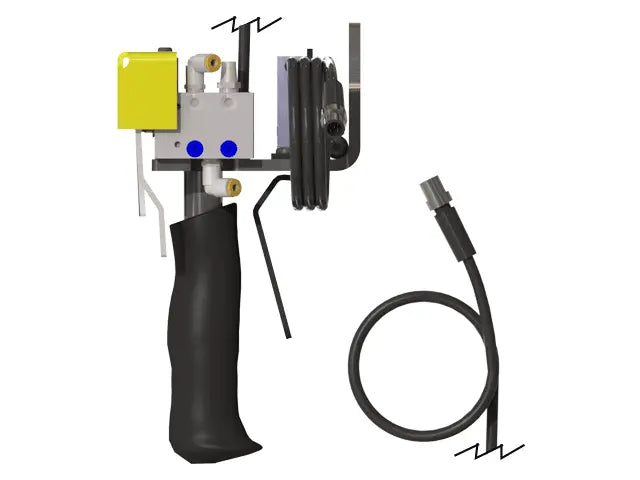

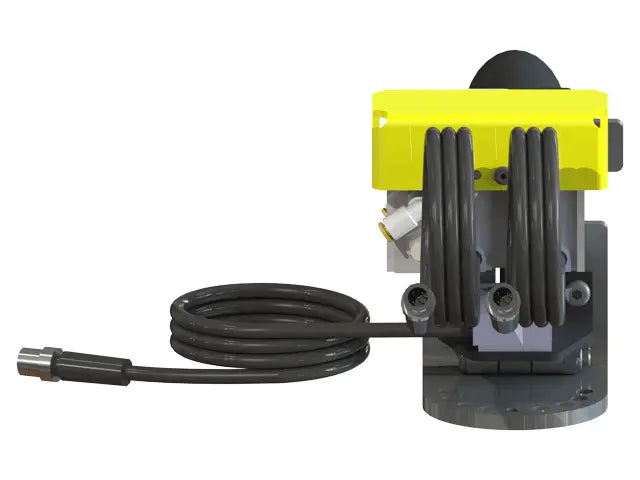

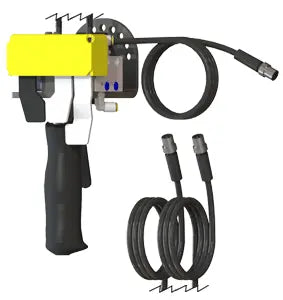

Knight Global Pneumatic-Electric Control Handle with Electric Trigger, (3) Thumb Levers, (2) 5-Pin Micro Limit Switch - KG GMEPETA9640

The GMEPETA9640 Pneumatic-Electric Control Handle with Electric Trigger is an pneumatically and electrically operated control handle that contains (3) thumb levers, (2) 5-Pin Micro Single Pole Limit Switches with (1) N/O (Normally/Open) and (1) N/C (Normally/Closed) contacts, (1) 1-button SMC valve block that has 3-way valves used for sending common pilot signals and (1) 5-Pin Micro Single Pole Limit Switch for the rear trigger lever with (1) N/O (Normally/Open) and (1) N/C (Normally/Closed) contacts.

Features:

• (3) Thumb Lever Configuration
• (1) Trigger Lever
• (2) 5-Pin Micro Single Pole Limit Switches

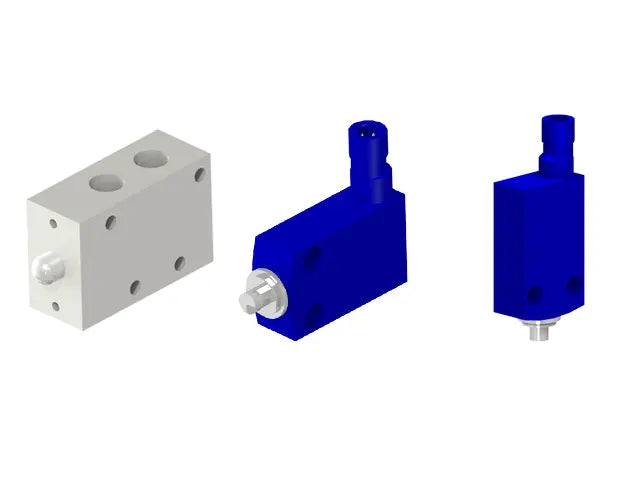

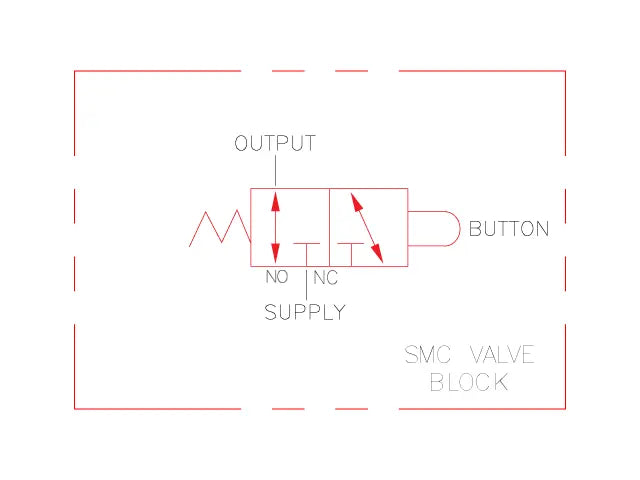

• (1) 1-button SMC Valve Block
• (1) Trigger Single Pole Limit Switch
• BPD1125 Ergonomic Grip
• 4mm Pneumatic fittings are included
• Comes standard with 3.3 ft. [1m] of cable. Additional cable lengths can be purchased separately
• Optional Pneumatic Trigger Lever Series

Specifications:

• GM Number: ARZ86294R

Digital Assets:

• Bill of Material
• Specification Sheet
