Knight Global Pneumatic-Electric Control Handle with Electric Trigger, (4) Thumb Levers, (2) 5-Pin Micro Limit Switch, 10mm Pneumatic Fittings - KG GMEPETA9630

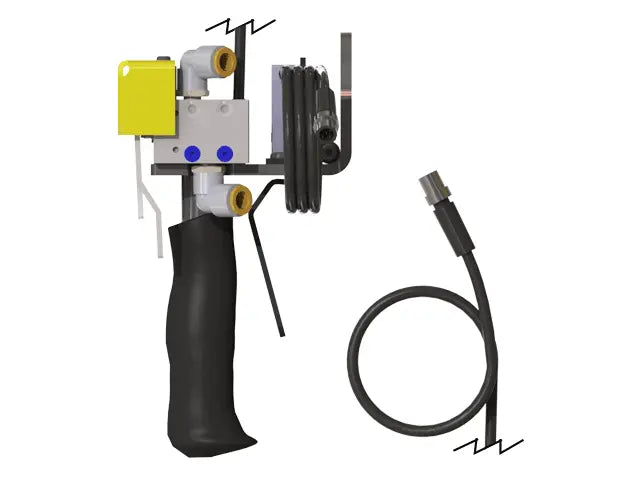

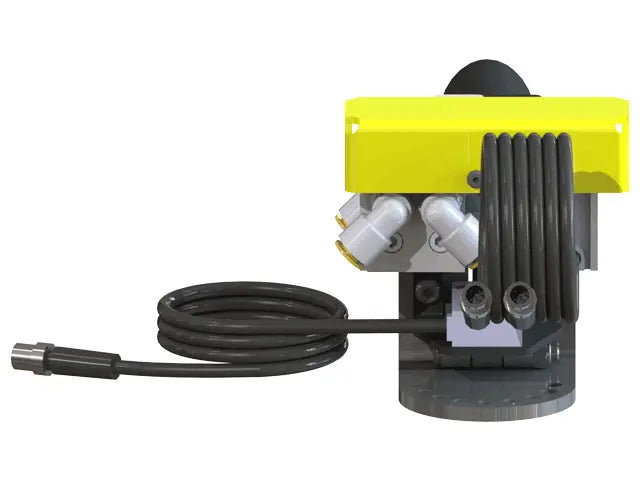

The GMEPETA9630 Pneumatic-Electric Control Handle with Electric Trigger is an pneumatically and electrically operated control handle that contains (4) thumb levers, (2) 5-Pin Micro Single Pole Limit Switches with (1) N/O (Normally/Open) and (1) N/C (Normally/Closed) contacts, (2) 1-button SMC valve blocks that have 3-way valves used for a single acting balancer or a lift assist used for UP/DOWN movements and (1) 5-Pin Micro Single Pole Limit Switch for the rear trigger lever with (1) N/O (Normally/Open) and (1) N/C (Normally/Closed) contacts.

Features:

• (4) Thumb Lever Configuration
• (1) Trigger Lever
• (2) 5-Pin Micro Single Pole Limit Switches

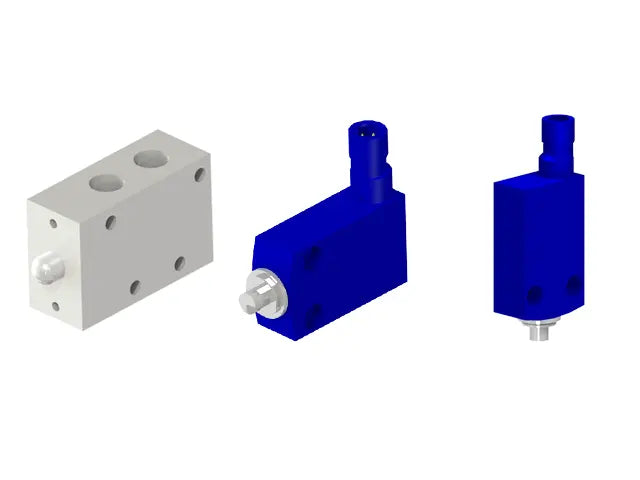

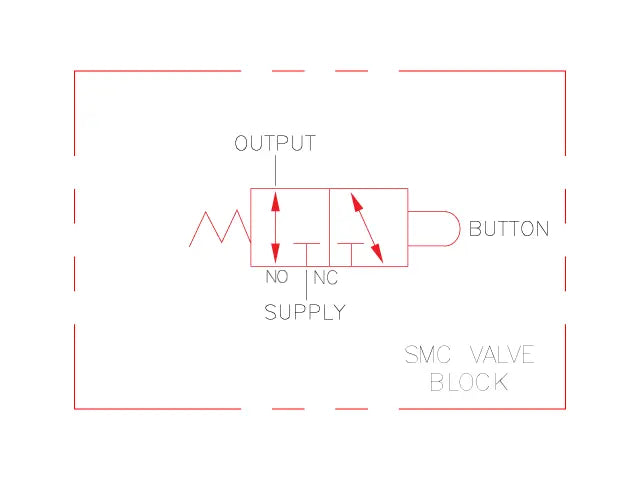

• (2) 1-button SMC Valve Blocks
• (1) Trigger Single Pole Limit Switch
• BPD1125 Ergonomic Grip
• 10mm Pneumatic fittings are included
• Comes standard with 3.3 ft. [1m] of cable. Additional cable lengths can be purchased separately
• Optional Pneumatic Trigger Lever Series

Specifications:

• GM Number: ARZ86293S

Digital Assets:

• Bill of Material
• Specification Sheet
