Knight Global Pneumatic-Electric Control Handle with Pneumatic Trigger, (1) 4-Pin Micro Limit Switch - KG EPPTA9530

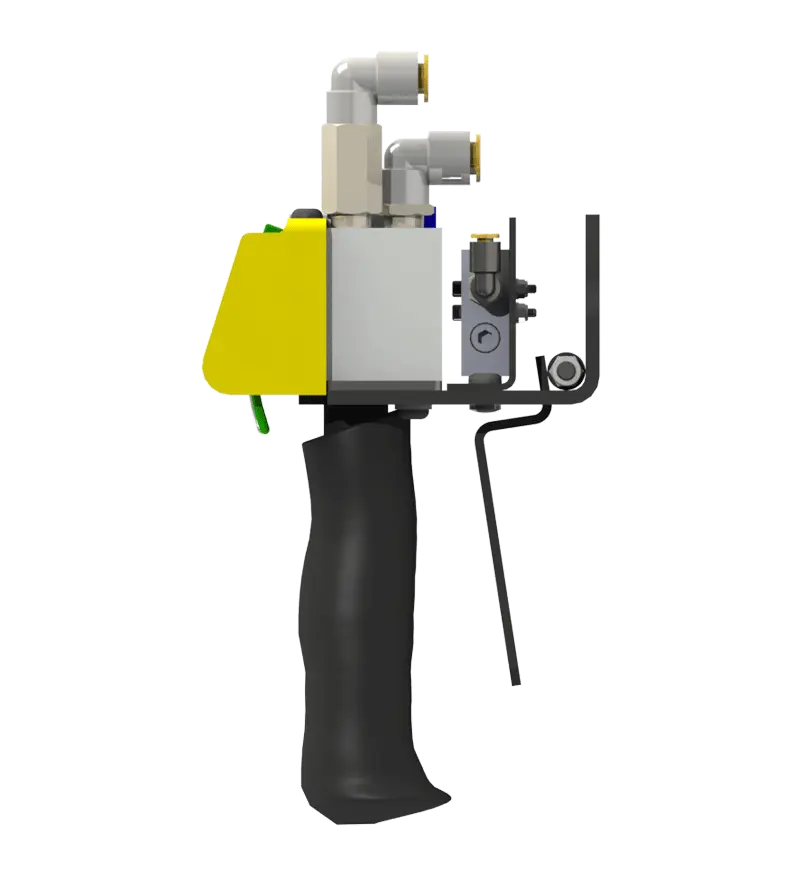

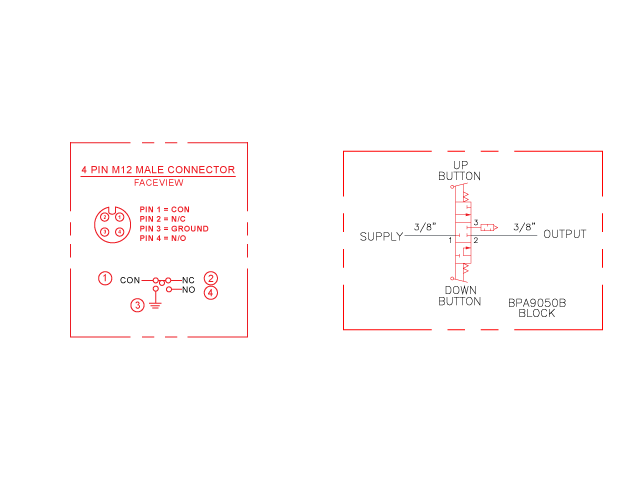

The EPPTA9530 is pneumatically and electronically operated control handle that contains (3) thumb levers, (1) 4-Pin Micro Single Pole Limit Switch with (1) N/O (Normally/Open) and (1) N/C (Normally/Closed) contacts, (1) 2-button BPA9050 valve block that has 2-way valves used for only a single acting air balancer or lift assist used for UP/DOWN movement and (1) 4-way valve rear trigger lever used for sending common pilot signals.
Features:

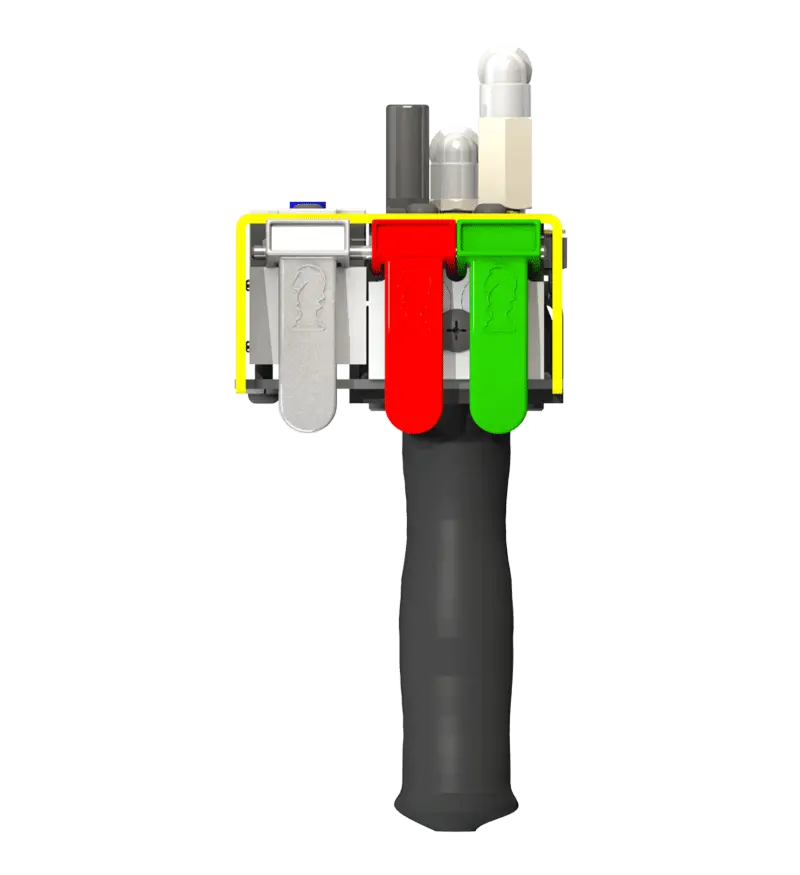

- (3) Thumb Lever Configuration

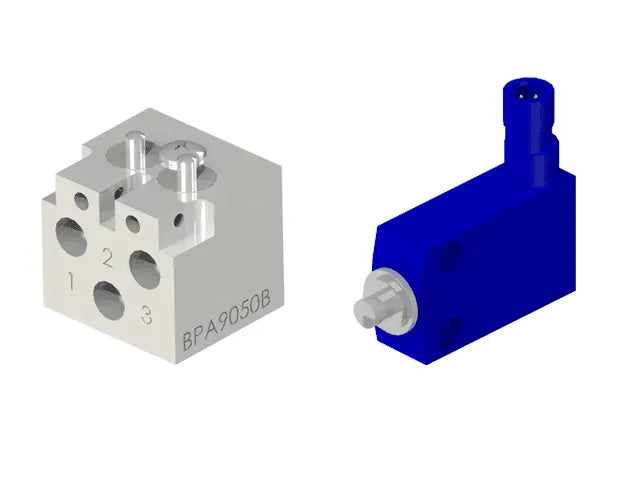

- (1) 4-Pin Micro Single Pole Limit Switch
- (1) 2-button BPA9050 Valve Block
- (1) Trigger Valve
- BPD1125 Ergonomic Grip
- Pneumatic fittings are included
- Optional Color-Coded Thumb Levers
- Optional Angled Thumb Levers
- Optional Electric Trigger Lever Series
Specifications:
- Valve Block NPT Port Size: 1/4 in. [6.3mm]
- Weight: 4.3 lbs. [1.95kg]
