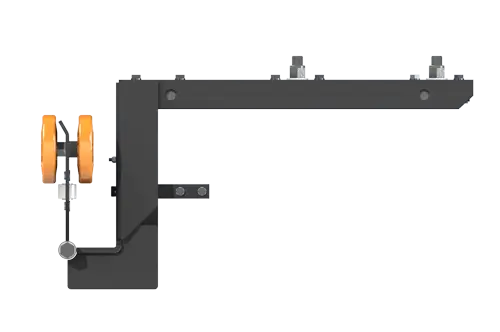

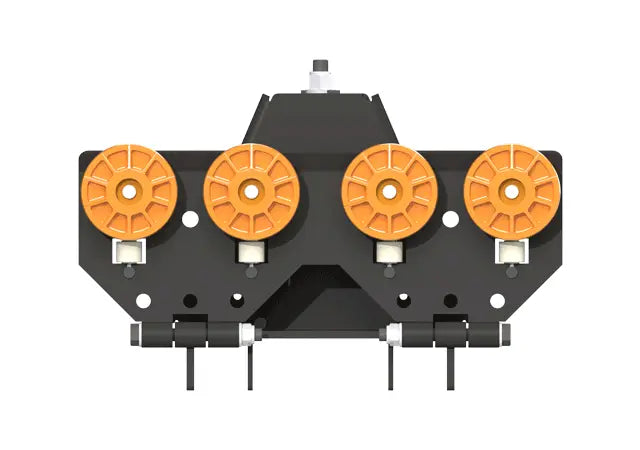

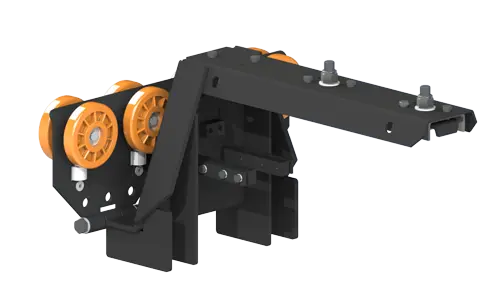

Knight Global Same Plane End Truck, Capacity 3000 lbs - KG MRES7528
Knight Global's MRES7528 suspends Knight's RAD7510 single or dual bridges and is designed to elevate the bridge to the same height as the runway. Knight End Trucks are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of +/- 49 ksi and a yield point of +/- 30 ksi. Same Plane End Trucks must have a MRAA7560 Integrated Access Gate.
Features:
- Suspends Knight RAD4110, RAD6110 and RAD7510 Single or Dual Bridges
- Elevates the bridge to the same height as the runway
- Travels inside RAD7510 Series Rail Runway
- Fiberglass filled High Impact Nylon Wheels
- Side Guide Rollers with integrated bearings
- Double-Shielded bearings keep dirt out, and do not require lubrication
Specifications:
- Intended Bridge Length: Up to 10 ft. [3m]
- Min/Max Continuous Service Temp at 100% Load: -20 deg F to 248 deg F
- Max Capacity: 3000 lbs [1360kg]
- Weight: 74.2 lbs [33.66kg]
