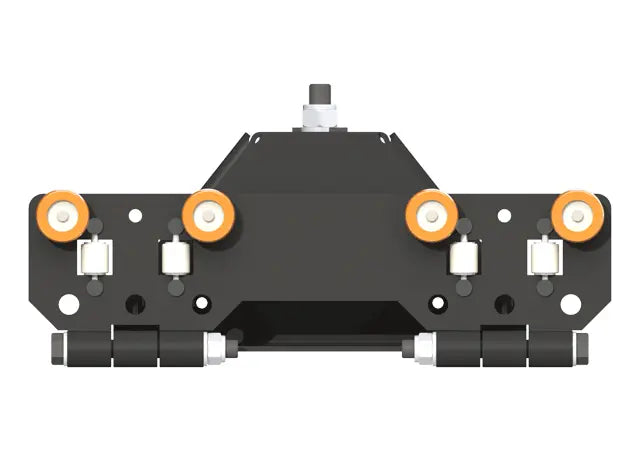

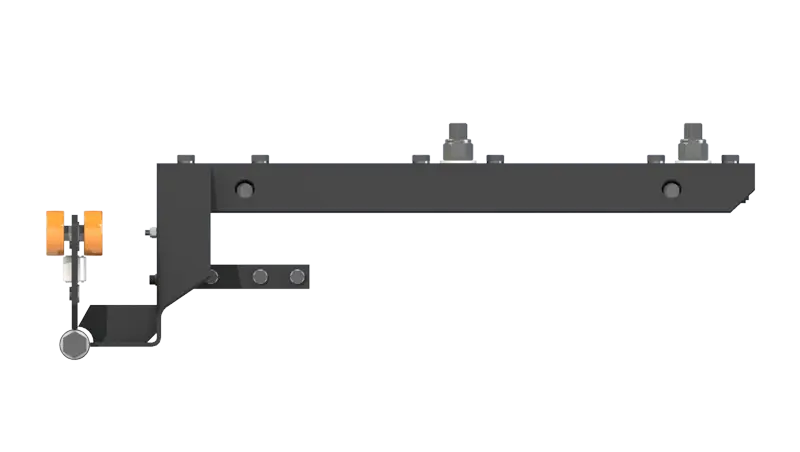

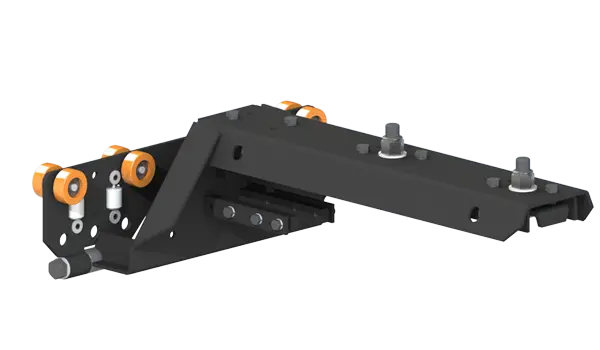

Knight Global Same Plane Low Profile End Truck - KG MRES4476
Knight Global's MRES4476 suspends Knight single or dual bridges. Same plane end trucks low profile design reduces stack-up heights by 11.5 in [292mm] and is designed to elevate the bridge to the same height as the runway. Knight End Trucks are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of +/- 49 ksi and a yield point of +/- 30 ksi. Same Plane End Trucks must have a MRAA4965 Integrated Access Gate.
Features:
- Elevates the bridge to the same height as the runway
- Suspends Knight's RAD4110 Single or Dual Bridges
- Travels Inside RAD4110 Series Rail Runway
- Fiberglass filled High Impact Nylon Wheels
- Side Guide Rollers with integrated bearings
- Double-Shielded bearings keep dirt out, and do not require lubrication
Specifications:
- Intended Bridge Length: Up to 10 ft. [3m]
- Reduces Stack-Up Heights by: 11.5 in [292mm]
- Min/Max Continuous Service Temp at 100% Load: -20 deg F to 248 deg F
- Max Capacity: 1100 lbs [499kg]
- Weight: 39.2 lbs [17.78kg]
