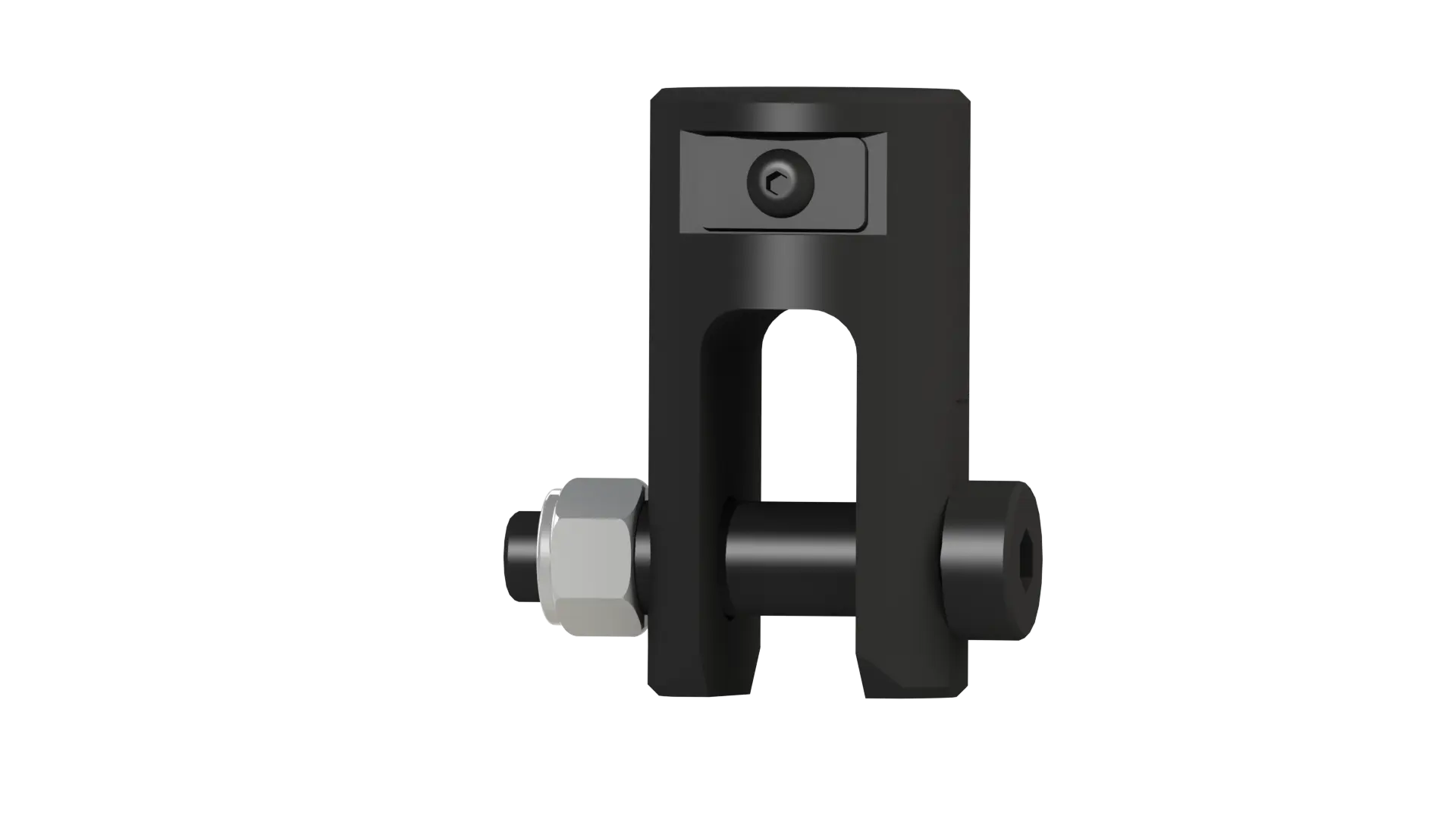

Knight Global Shackle - KG KSAA1004
Secures fixtures and loads in-line with the Servo System chain. The shackle is normally attached below the load cell. Knight's Shackle features a female clevis for direct connections. The shackles are constructed of 4140 steel, and heat treated to Rock "C" 38-42. They have (2) two M6 steel dowel pins to capture, verses threaded rod and a M5 cross hole with retaining plates. Shackle is normally attached below the load cell handle.
Features:
- 4140 Steel shackle housing
- Secures fixtures or loads in-line with chain
- Shackle attaches to 16mm 4140 steel shaft (Not included)
- Shackle is secured with (2) steel dowels
- 5/8 in. grade 8 shoulder bolt
Specifications:
- Capacity: 1000 lbs. [453kg]
- Throat Opening: 7/8 in x 2-1/8 in
