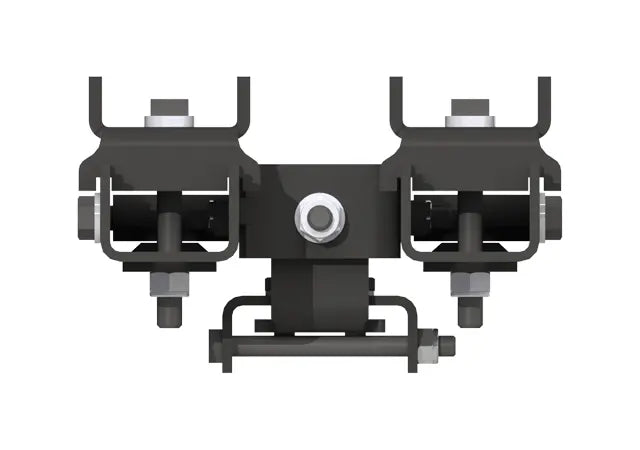

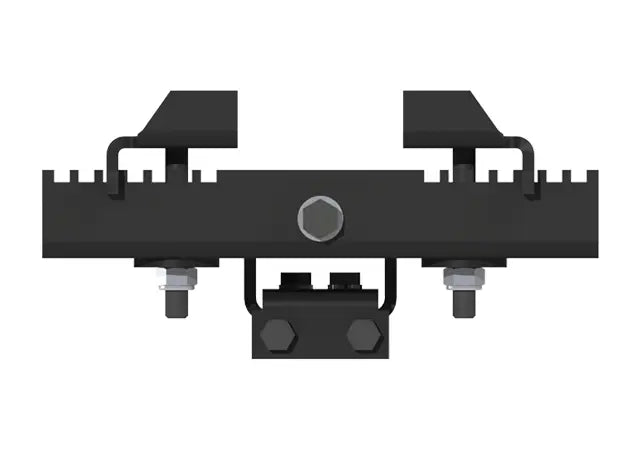

Knight Global Short Perpendicular Stack I-Beam Hanger, 2 in - 7 in Flange - KG MRHS40771
Used for direct or offset loads, suspends Knight's RAD4110, RAD6110, or RAD7510 Series Aluminum Rail Systems. When using the MRHS40771 I-Beam Hanger, structural steel must be run perpendicular to the Knight rail system.
Features:
- For Direct or Offset Loads
- Thicker flange beams will require modified hanger, available upon request
- Fixed Hanger Height
- Coated with an environmentally friendly corrosion protection. (Autophoretic ACC 900)
- Optional RWA4133 Safety Cable
Specifications:
- Max I-Beam Flange Thickness: 7/16 in
- Redundant Structural Support Flange Size: 2 in - 7 in [51mm - 178mm]
- Weight: 15.7 lbs [7.14kg]
