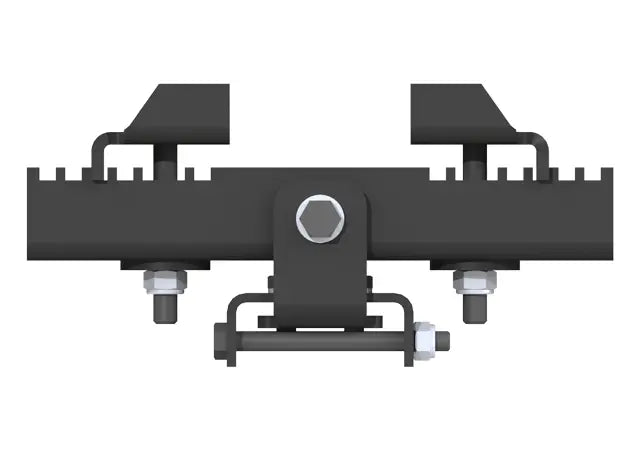

Knight Global Short Stack I-Beam Hanger, Parallel to I-Beam, 2 in - 7 in Flange - KG MRHS40821
Used for Direct or Offset Loads, suspends Knight's RAD4110, RAD6110, or RAD7510 Series Aluminum Rail Systems. When using the MRHS40821 Short Stack I-Beam Hanger, structural steel must be run parallel to the Knight rail system.
Features:
- For Direct or Offset Loads
- Fixed Height Hanger
- Coated with an environmentally friendly corrosion protection. (Autophoretic ACC 900)
- Optional RWA4133 Safety Cable
Specifications:
- Structural Support Flange Size: 2 in. - 7 in. [51mm - 178mm]
- Max I-Beam Flange Thickness: 7/16 in. (Thicker flange beams will require modified hanger, available upon request)
- Weight: 8.0 lbs. [3.63kg]
