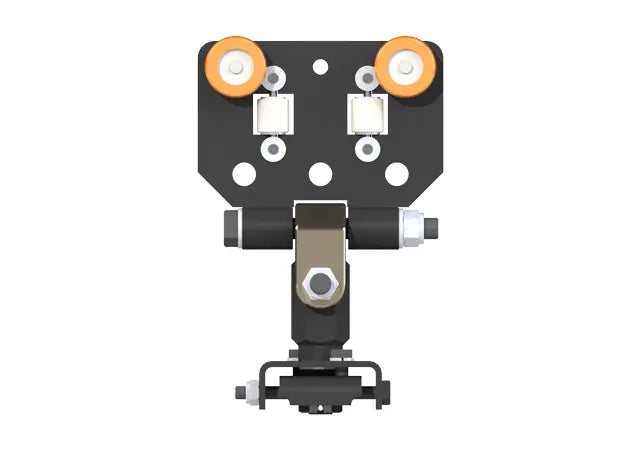

Knight Global Single Bridge End Truck, Capacity 1100 lbs - KG MRES4025
The MRES4025 Single Bridge End Truck suspends Knight's single bridges. The end trucks yoke design allows for the pivoting in the "X" and "Y" directions which creates freedom of movement. Knight End Trucks are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of +/- 49 ksi and a yield point of +/- 30 ksi.
Features:
- Suspends Knight RAD4110, RAD6110 and RAD7510 Single Bridges
- Travels Inside RAD4110 Series Rail Runway
- Yoke design allows pivoting in the "X" and "Y" directions for freedom of movement
- Fiberglass filled High Impact Nylon Wheels
- Side Guide Rollers with integrated bearings
- Double-Shielded bearings keep dirt out, and do not require lubrication
Specifications:
- Max. Recommended Bridge Length: Up to 15 ft. [4.5m]
- Min/Max Continuous Service Temp at 100% Load: -20 deg F to 248 deg F
- Max Capacity: 1100 lbs [499kg]
- Weight: 11.4 lbs [5.17kg]
