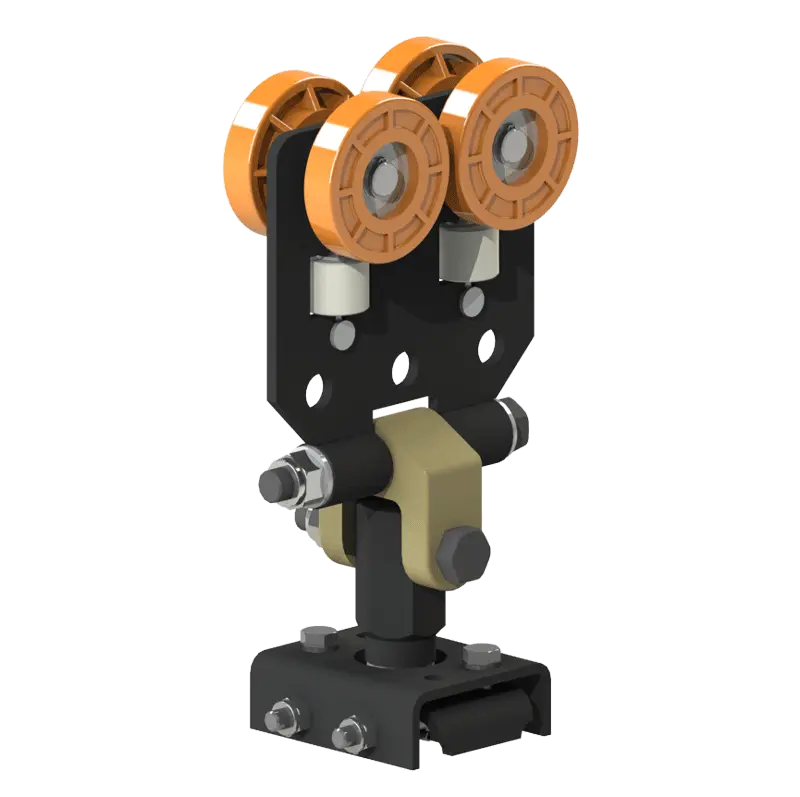

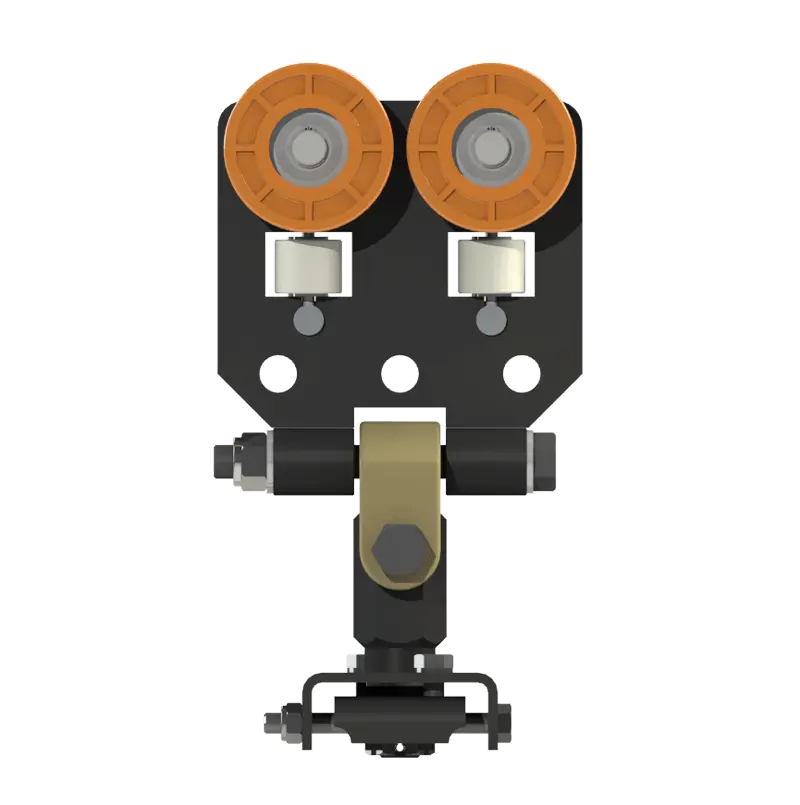

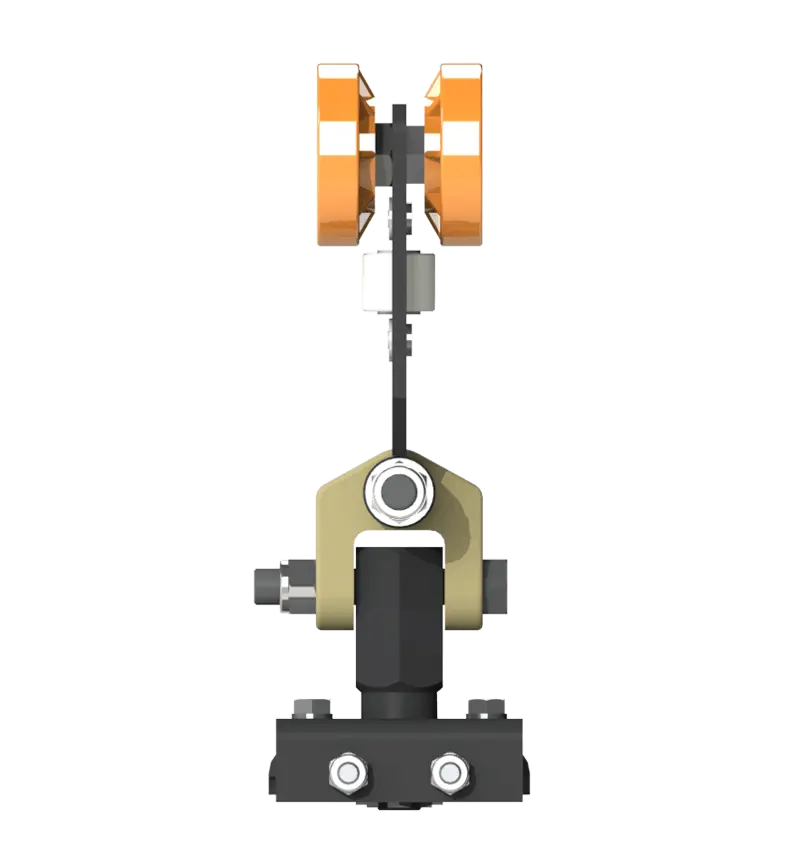

Knight Global Single Bridge End Truck, Capacity 1600 lbs - KG MRES6131
The MRES6131 Single Bridge End Truck suspends Knight's RAD4110, RAD6110, or RAD7510 Single Bridge. It travels inside of Knight's RAD6110 rail. The End Truck's Yoke design allows for the pivoting in the "X" and "Y" directions which creates freedom of movement. Knight End Trucks are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of +/- 49 ksi and a yield point of +/- 30 ksi.
Features:
- Travels inside RAD6110 Series Rail Runway
- Fiberglass filled High Impact Nylon Wheels
- Side Guide Rollers with integrated bearings
- Yoke design allows pivoting in the "X" and "Y" directions for freedom of movement
- Double-Shielded bearings keep dirt out, and do not require lubrication
Specifications:
- Max. Recommended Bridge Length: Up to 15 ft. [4.5m]
- Min/Max Continuous Service Temp at 100% Load: -20 deg F to 248 deg F
- Max Capacity: 1600 lbs [725kg]
- Weight: 12.7 lbs [5.75kg]
