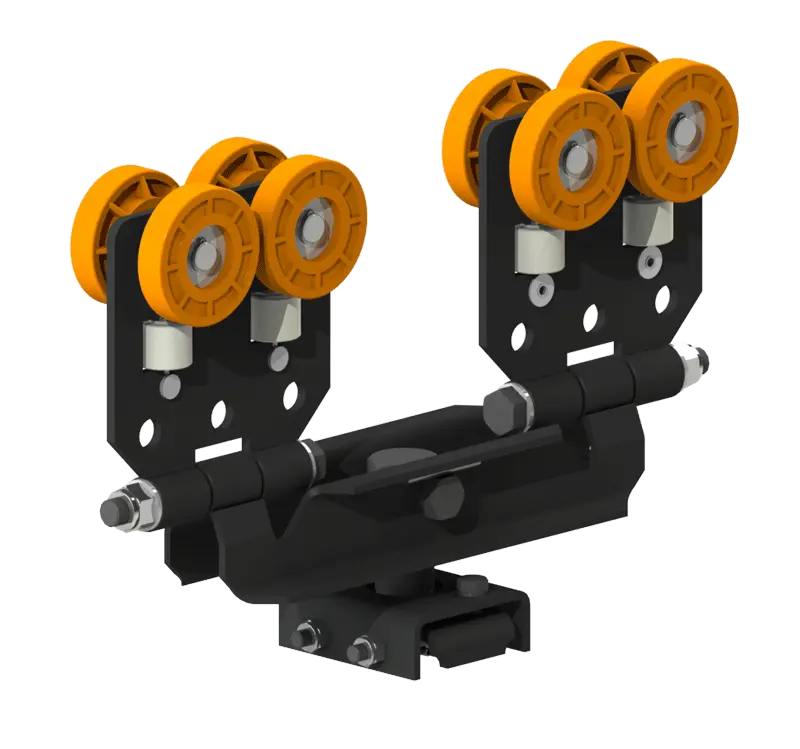

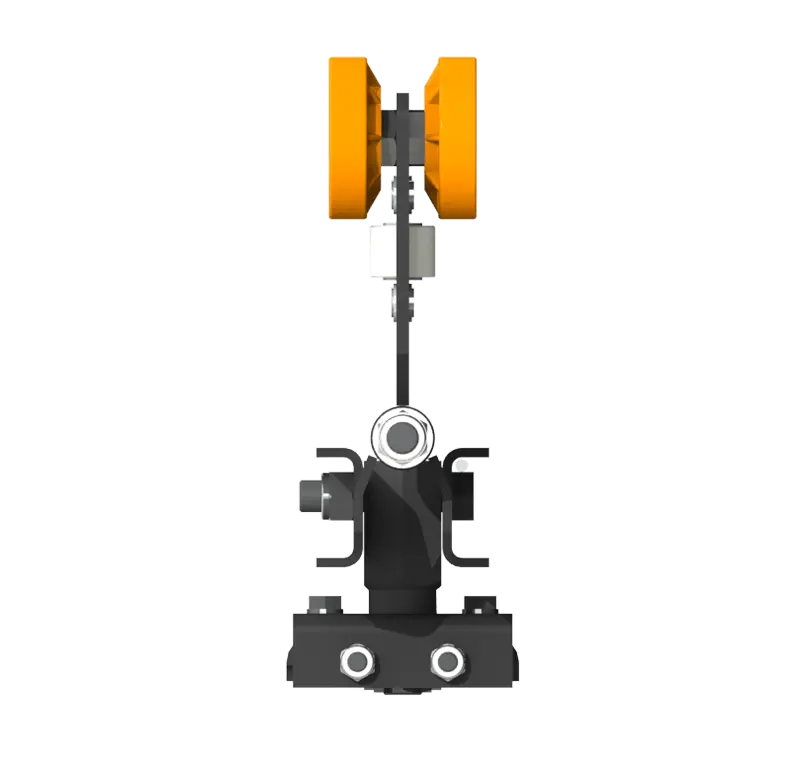

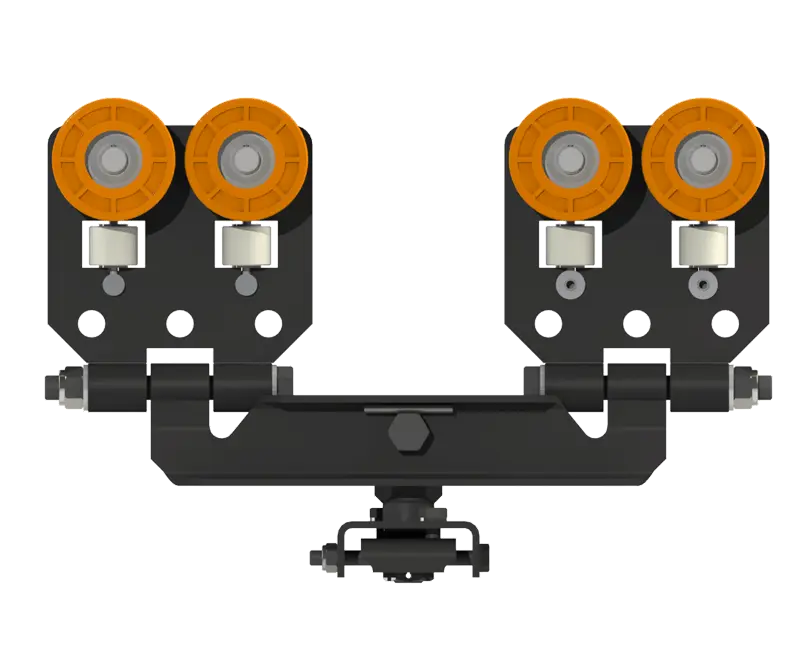

Knight Global Single or Dual Bridge End Truck, Capacity 1600 lbs - KG MRES6130
The MRES6130 Single or Dual Bridge End Truck suspends Knight's RAD4110, RAD6110, or RAD7510 Single or Dual Bridge. It travels inside of Knight's RAD6110 rail. Knight's Dual Trolley design improves bridge travel performance by distributing the overall load across a wider stance. Knight End Trucks are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of +/- 49 ksi and a yield point of +/- 30 ksi.
Features:
- Suspends Knight's RAD4110, RAD6110, or RAD7510 Single or Dual Bridge
- Travels inside RAD6110 Series Rail Runway
- Dual Trolleys improve bridge travel performance by distributing the overall load across a wider stance
- Fiberglass filled High Impact Nylon Wheels
- Side Guide Rollers with integrated bearings
- Double-Shielded bearings keep dirt out, and do not require lubrication
Specifications:
- Min/Max Continuous Service Temp at 100% Load: -20 deg F to 248 deg F
- Max Capacity: 1600 lbs [725kg]
- Weight: 21 lbs [9.52kg]
