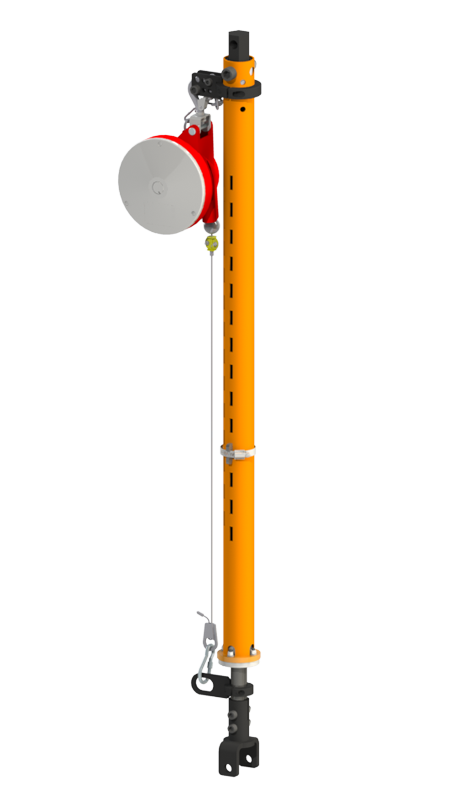

Knight Global Torque Tubes with Spring Balancer, Lift Capacity 15 lbs - KG ATA2600SB

Knight Global's ATA2600SB Spring Balancer Torque Tubes are designed to reduce operator fatigue by absorbing torque reaction produced by assembly tools while balancing the tool weight. They are ideal in conditions where there is a need for the tool to return to the full UP position after fastening. The ATA2600SB are balanced by a spring balancer and feature zero-gravity tool balancing. The ATA2600SB can be swivel Torque Tubes by incorporating Knight's ASA9519 360 degree Rotating Tool Clamp. They can also be fixed Torque Tubes by incorporating Knight's ASA9523 or ASA9524 Adjustable Tool Clamps.

Features:

• Balanced by a Spring Balancer
• Zero-Gravity Tool Balancing
• Movement is Straight Up / Down
• ATA2600-24SB - Torque Tube with Spring Balancer
  • Lift Capacity 15 lbs. Maximum Torque 150 ft-lbs. (203 n-m) & 20" Vertical Travel
• ATA2600-36SB - Precision Torque Tube with Spring Balancer
  • Lift Capacity 15 lbs. Maximum Torque 150 ft-lbs. (203 n-m) & 36" Vertical Travel

Specifications:

• Available Strokes: 12 in. [304.8mm] - 36 in. [914.4mm]
• Standard Max. Travel: 24 in. [609.6mm]
• Max. Torque: Up to 150 ft-lb. [203 Nm]
• Max. Balancing Capacity: Up to 12 lbs. [5.44kg]
• Product Weight: 32.8 lbs. [14.9kg]

Benefits

• Reduces Operator Fatigue
• Absorbs Torque Reaction
• Modular design allows for accessories to be mounted to the body
• Adjustable travel stops
