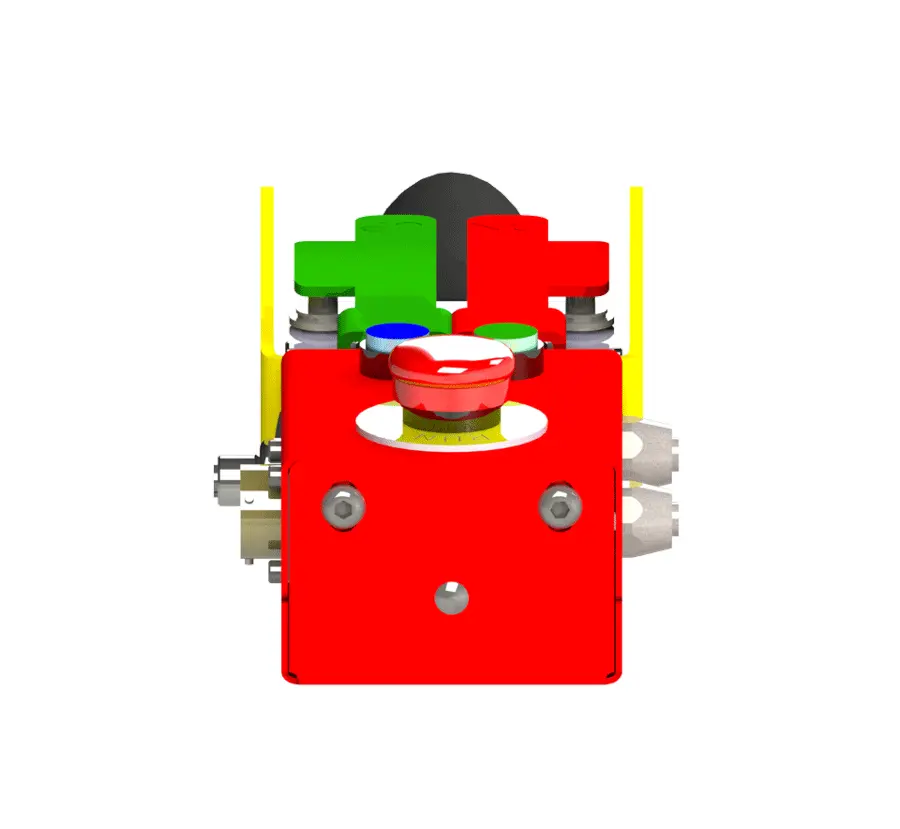

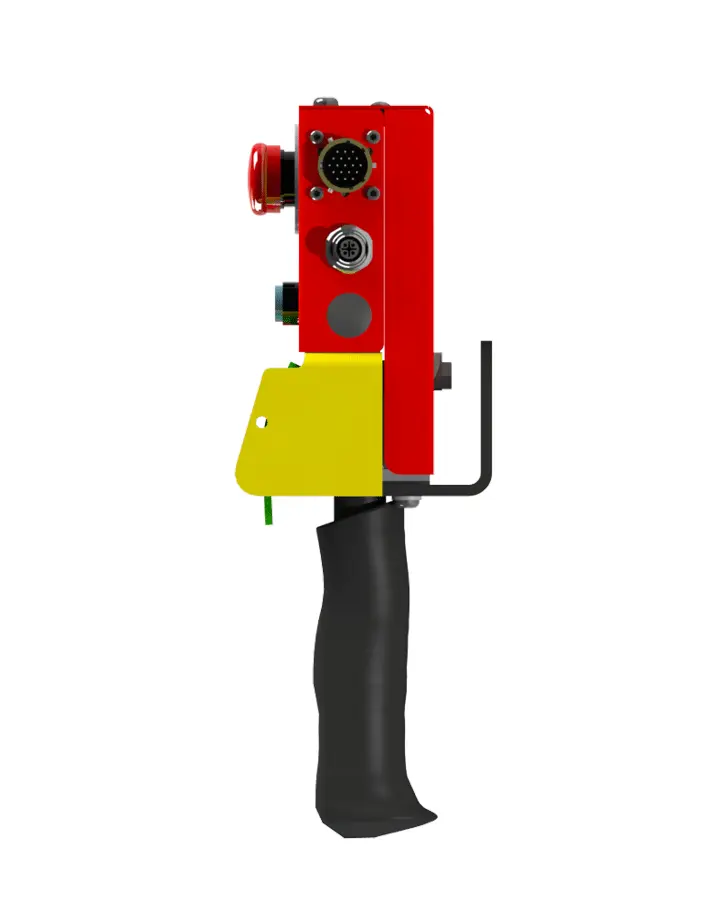

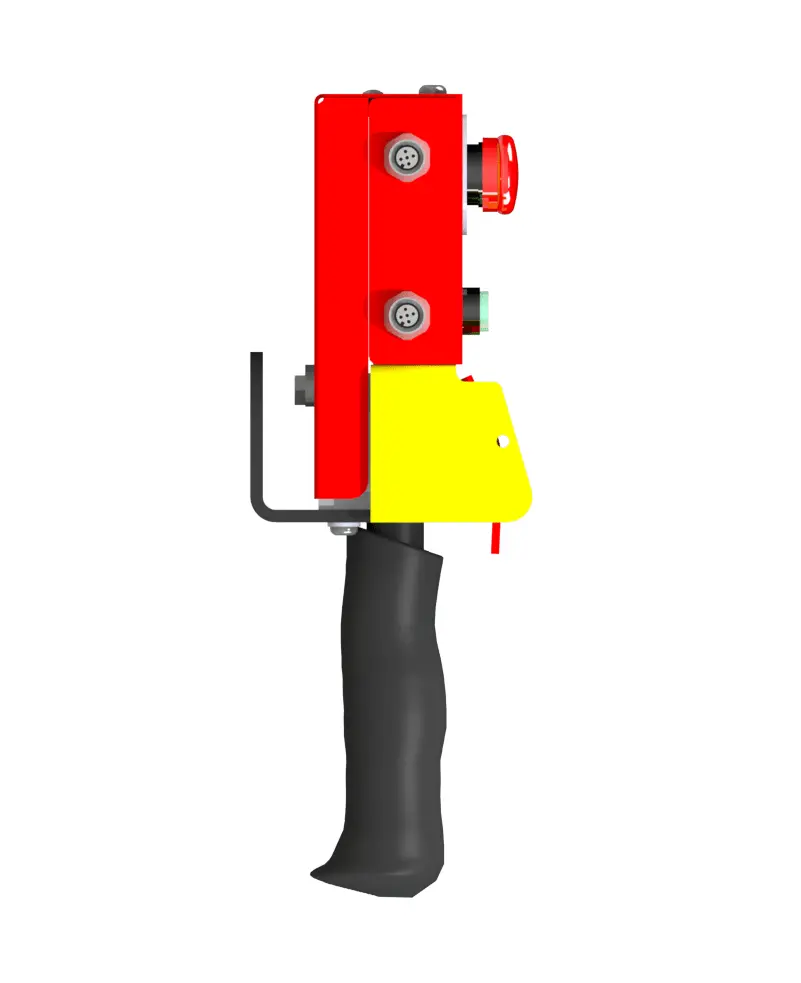

Knight Global Two-Speed Control Handle with Operator Control Interface - KG KCA1033
The KCA1033 is a Base Pendant Control for a Knight Servo Hoist. It permits the operator to control over-sized or cumbersome loads while maneuvering them into tight spaces. Control Handle is equipped with the same features as the Knight Inline Trigger Control Handle and is available in a Single or Two-Speed configuration that may be mounted on a separate cable, connected to a Knight (LMM) Load Monitoring Module or connected directly to a Servo Hoist box. Knight Global's Operator Control Interface consists of (2) 4-Pin M12 female receptacles for I/O, (1) 6-Pin M12 receptacle for fixture handle, (1) 19-Pin male receptacle, Green/Blue lighted push buttons, lighted Red Run-Stop Push Button and (1) 9-Pin programming port.
Features:
- Allows for 2-Speed Operation
- Operator Control Interface (OCI)
- 9-Pin D-Sub Programming Port
- 19-Pin I/O and Control Connector
- Safety Run-Stop Button
- Illuminated (Blue/Green) Float and Lift Push Buttons
- Electrical Straight Cable sold separately
- Electrical Coil Cable sold separately
- Optional Trigger Button Configuration
- KCA1033-001:
Green/Blue Illuminated Pushbuttons, Wired as Primary Style Run Stop, Illuminated Red Run Stop with Yellow Backer. Green Lever for Up & Red Lever for Down
- KCA1033-002:
Green/Blue Illuminated Pushbuttons, Wired as Primary Style Run Stop, Illuminated Yellow Run Stop with White Backer. Green Lever for Up & Red Lever for Down
- KCA1033-003:
Green/Blue Illuminated Pushbuttons, Wired as Secondary Style Run Stop, Illuminated Red Run Stop with Yellow Backer. Green Lever for Up & Red Lever for Down
- KCA1033-004:
Green/Blue Illuminated Pushbuttons, Wired as Secondary Style Run Stop, Illuminated Yellow Run Stop with White Backer. Green Lever for Up & Red Lever for Down
Specifications:
- Weight: 5.04 lbs. [2.29 kg]
