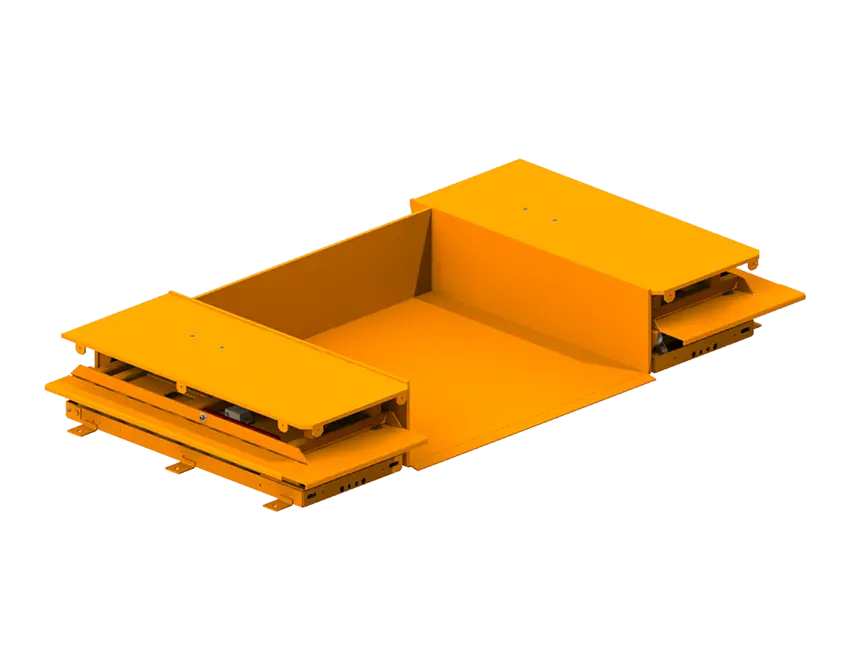

Knight Global Zero Lift and Tilt Loaders - KG TZ4860
Knight Zero Loaders combine the convenience of ground-level loading with the footprint of a standard lift table. These loaders are specifically used for pallet jacks, push carts or taller, hard to reach, container applications. They create an efficient workplace and allows the operator to work in a safe ergonomic range, increasing productivity while reducing fatigue. Our Zero Load Tables can be designed to fit a multitude of application and come equipped with hydraulic steel fittings. Polished chrome shafts are used at all slide and pivot points to minimize the wear and prolong component life. We also offer optional stainless steel braided hydraulic hosing for increased durability. Maintenance Lock-Out Bars are standard on all Knight Global tables. All tables are inspected and tested before they leave our facility. Table, Shuttles and Carts are available with a variety of accessories, safety features and equipment. Optional Safety Equipment including but not limited to; perimeter fence guarding, bellows skirting, safety mats, audible signals, light signals, toe guards, special control guarding, etc. are not included unless otherwise stated in the product descriptions. Please check with your state, local or plant safety for requirements. We are happy to quote any and all safety equipment needed to meet your requirements.
Features:
- Designed for ground level loading with a pallet jack when fork truck access is limited
- Steel Construction
- Maintenance Lock-Out Bars
- Standard Lift: 24 in. [610mm]
- Narrow Foot Print
- Pneumatically Powered
- Heavy Duty Pneumatic Air Bags
- Polished Chrome Shafts at all Pivot and Slide Points
- Listed Knight Table sizes are standard. Custom sizes are available upon request
Options:
- Steel Riser
- Pit Mounted (Angled Toe Guards, External Mounted Pit Guards or Auto Safety Bars are required)
- Corner Gusset Tabs (No Extra Charge)
- Various Heights Available
- Ratchet Safety Stops
- Stainless Steel Hydraulic Hosing
- Motion Stabilizer for Tilt
- Bellows Skirting
- Pedestal or Foot Control
- Bolt-on Hand Control
| Part Number |
Capacity Lbs. [ kg. ] |
Closed ( A ) in. [ mm. ] |
Platform Size ( Wp x Lp ) in. [ mm. ] |
Tilt |
| TZ4860-2000 |
2,000 [ 907 ] |
0.75 [ 19 ] |
Up To 60 x 48 [ 1524 x 1219 ] |
0 to 40 deg |
| TZ4860-4000 |
4,000 [ 1,814 ] |
0.75 [ 19 ] |
Up To 60 x 48 [ 1524 x 1219 ] |
0 to 40 deg |
| TZ4860-6000 |
6,000 [ 2,722 ] |
0.75 [ 19 ] |
Up To 60 x 48 [ 1524 x 1219 ] |
0 to 40 deg |
