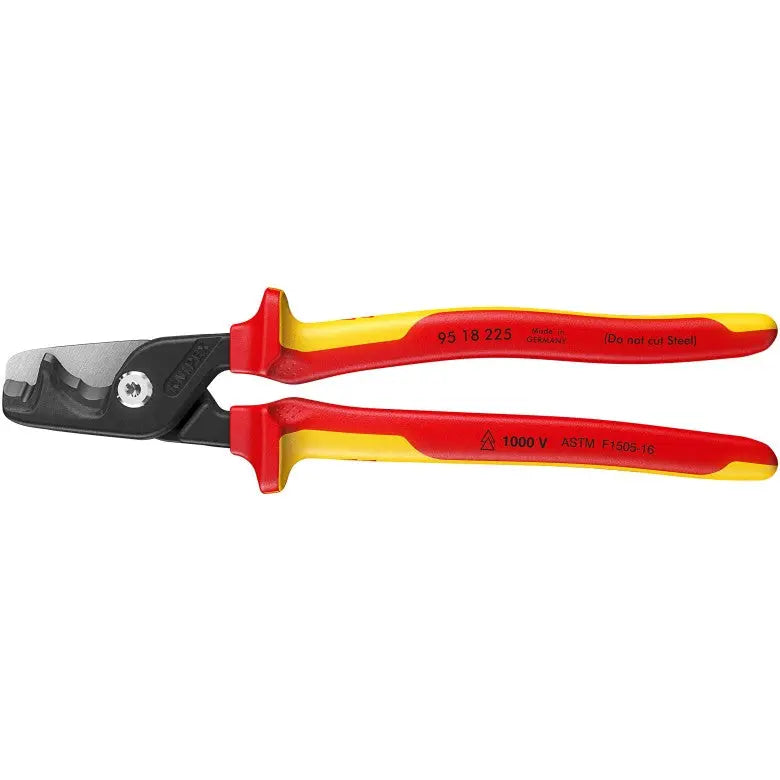

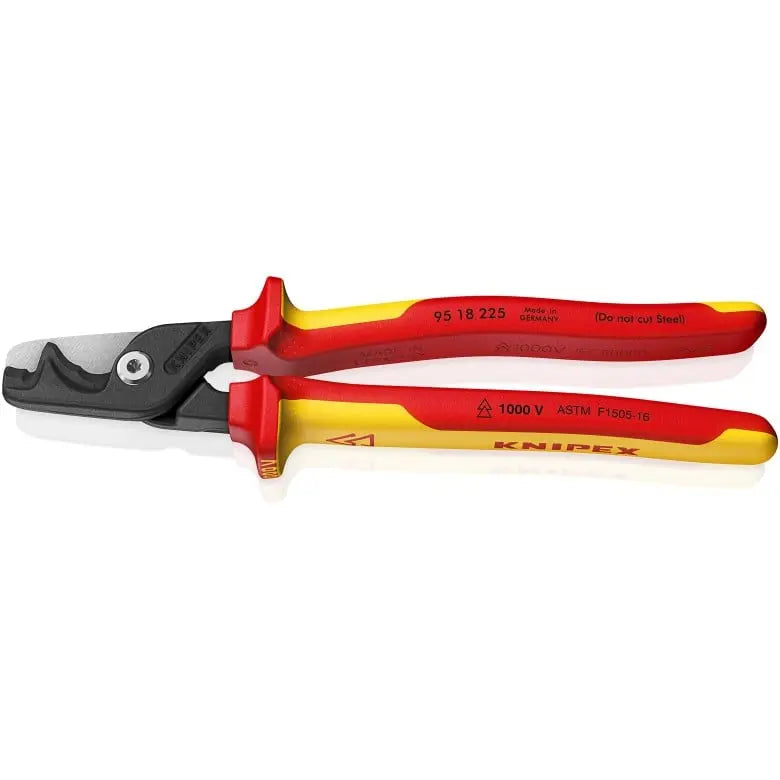

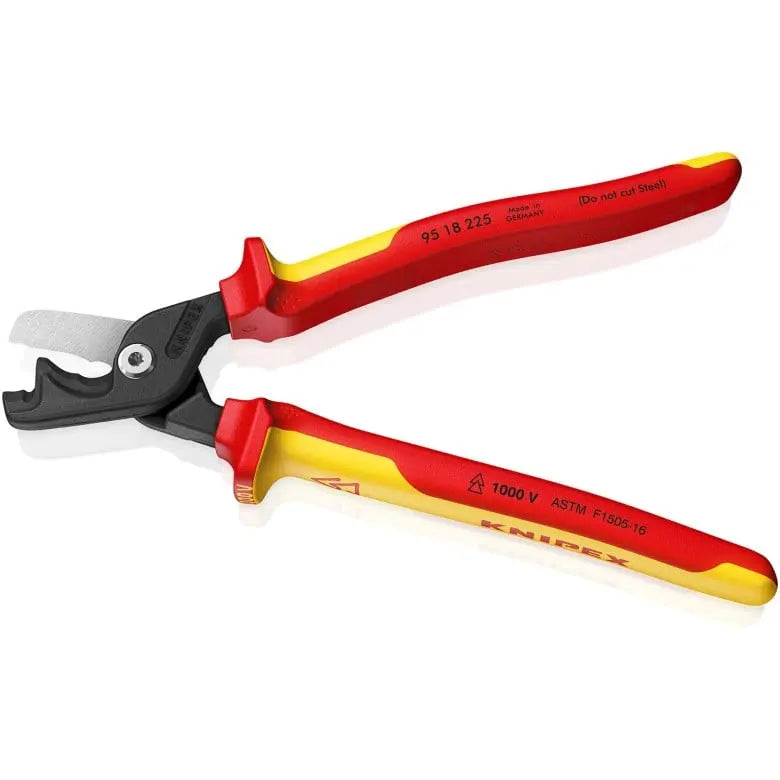

Knipex 1000V Insulated StepCut Extra Large Cable Shear, 9 in - KN 95 18 225 SBA

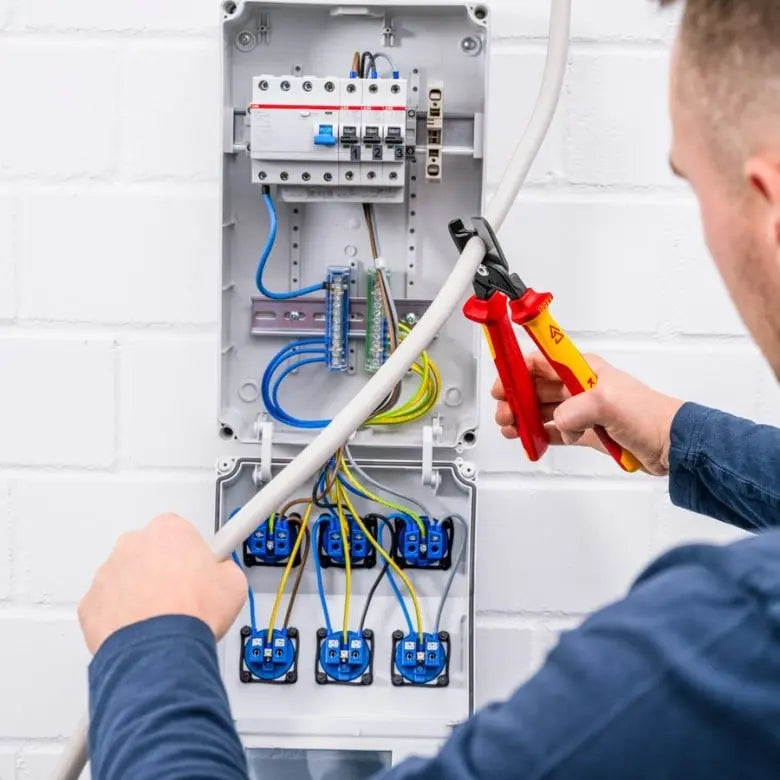

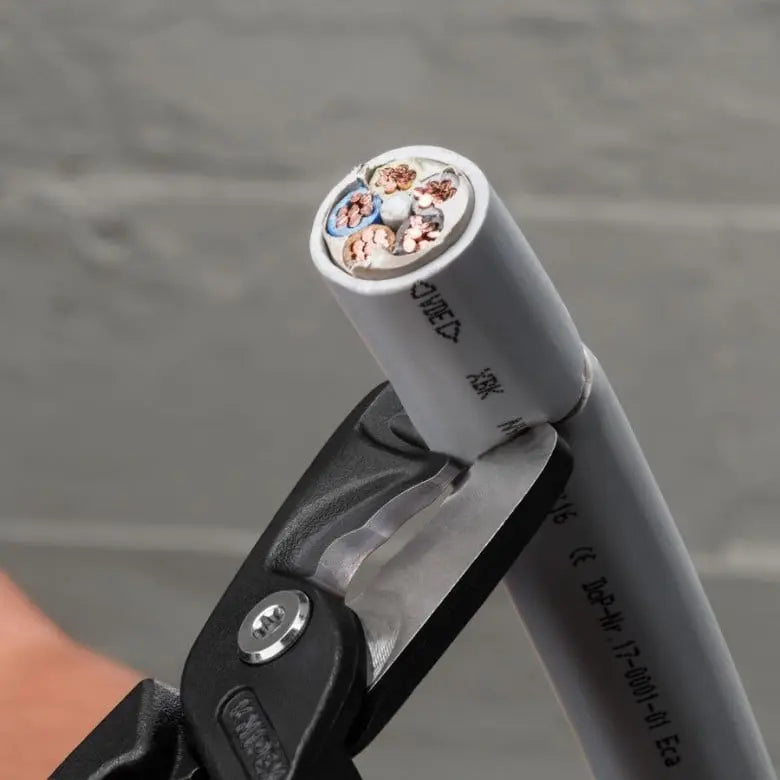

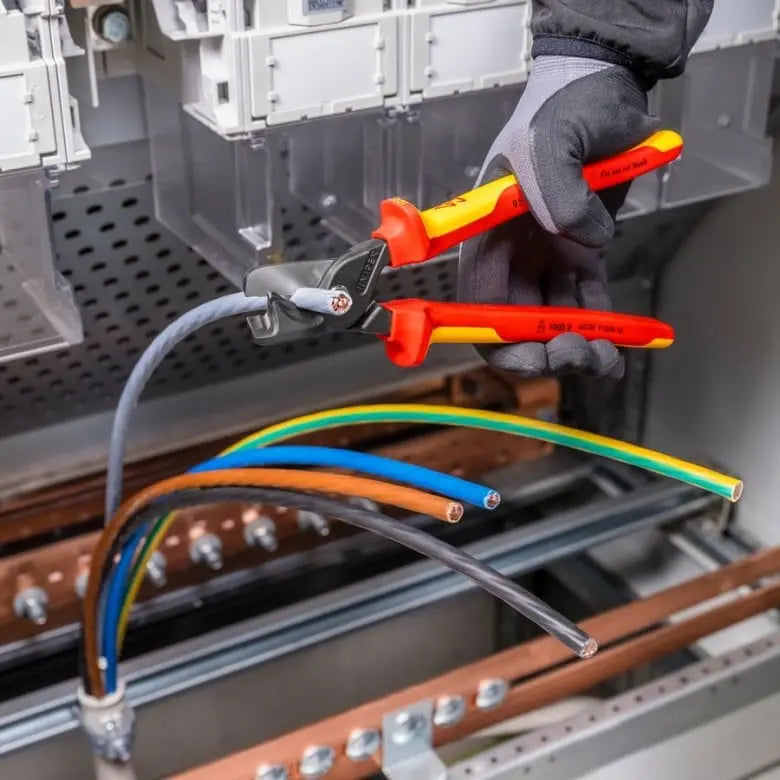

The Cable Shear is designed for professional and industrial applications, ensuring clean, effortless cuts on copper, aluminum, and other soft cables without crushing or fraying.
Features:
- High-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears

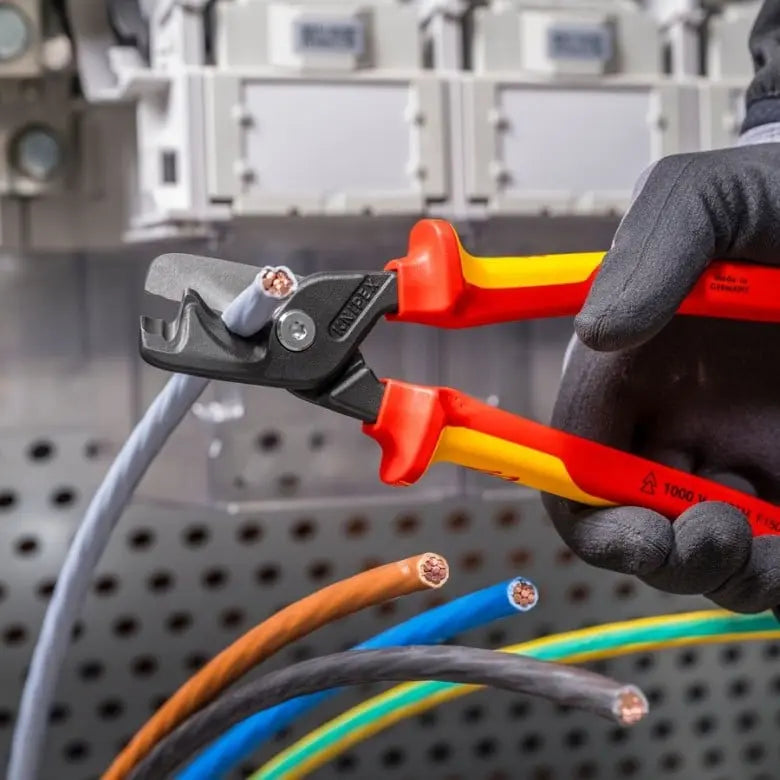

- Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG

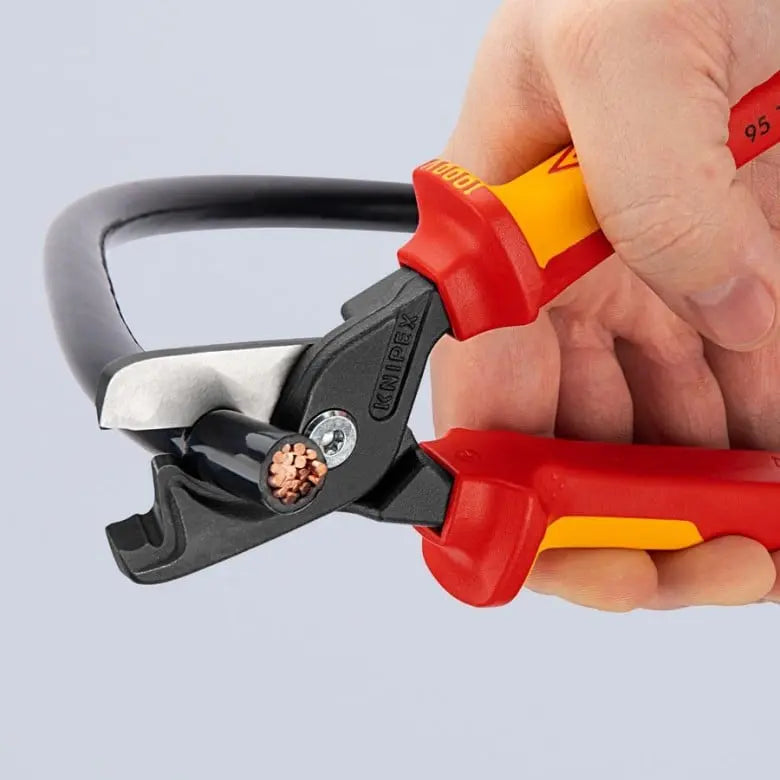

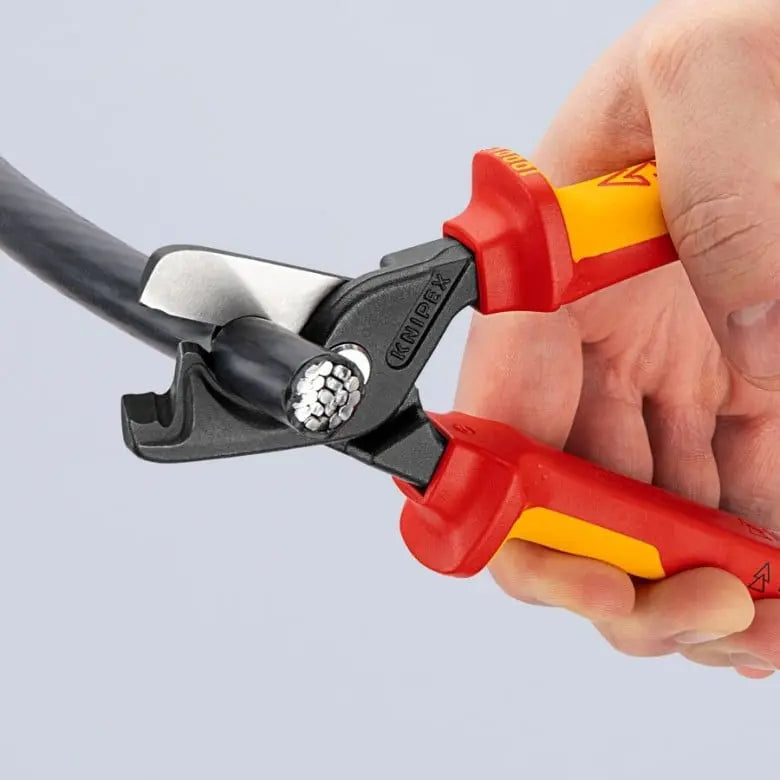

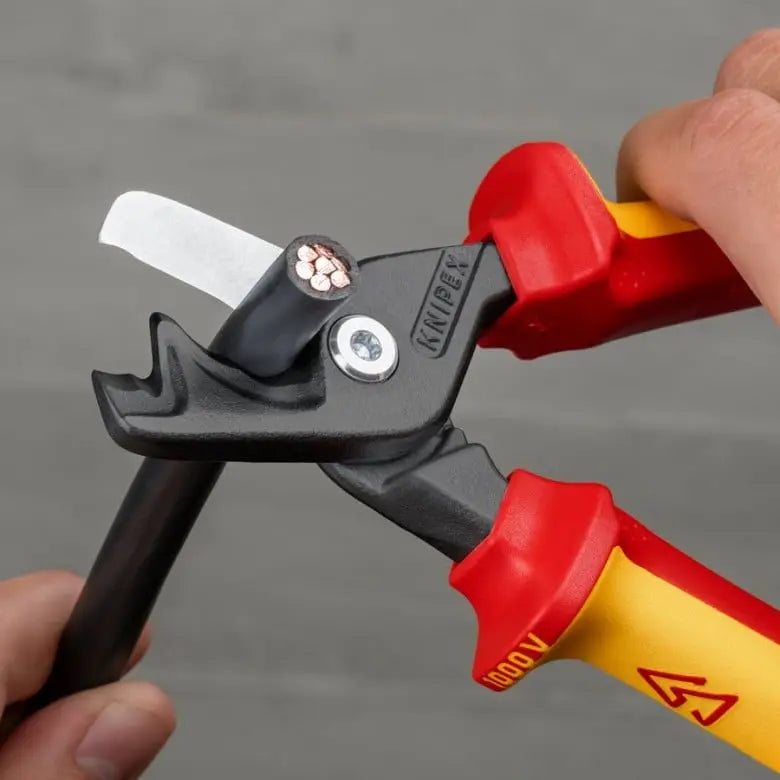

- Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting ("nibbling") of larger cables
- Easy one- or two-handed operation with minimal handle opening for large cable diameters
- Slim head for better accessibility
- Not suitable for steel-reinforced cables, e.g. ACSR
- Adjustable, high-leverage bolted joint provides precise and smooth cutting
- Pinch guard prevents operators' fingers being pinched
- Laser-hardened cutting edges (approx. 56 HRC)
- 1000V Multi-component grips, ASTM F1505-tested
- High-grade special tool steel, forged, oil-hardened
Specifications:
- 1000 Volt Insulated: Yes
- Cable Type: Stranded Cables, Fine Stranded Cables, Solid Cable
- Country of Origin: Germany
- Cutting Capacity - Cu and Al Conductor: 29/32 in
- Cutting Edge Shape: Shear
- ESD Indicator: No
- Handle Type: 1000V Insulated
- Overall Height: 1-1/8 in
- Jaw Length: 1-1/4 in
- Jaw Thickness: 1/2 in
- Jaw Width: 1-1/4 in
- Joint Type: Bolted
- Overall Length: 9 in
- Material Type: High-Grade Special Tool Steel, Forged, Oil-Hardened
- Reach: Does Not Contain SVHC
- Spring Loaded: No
- Surface Finish: Burnished
- Tip Thickness: 1/4 in
- Tip Width: 1 in
- Overall Width: 2-1/2 in
- Wire Size: Up to 2/0 AWG (solid and stranded cables), Up to 4/0 AWG (fine stranded cables)
- Overall Weight: 0.944 lbs
