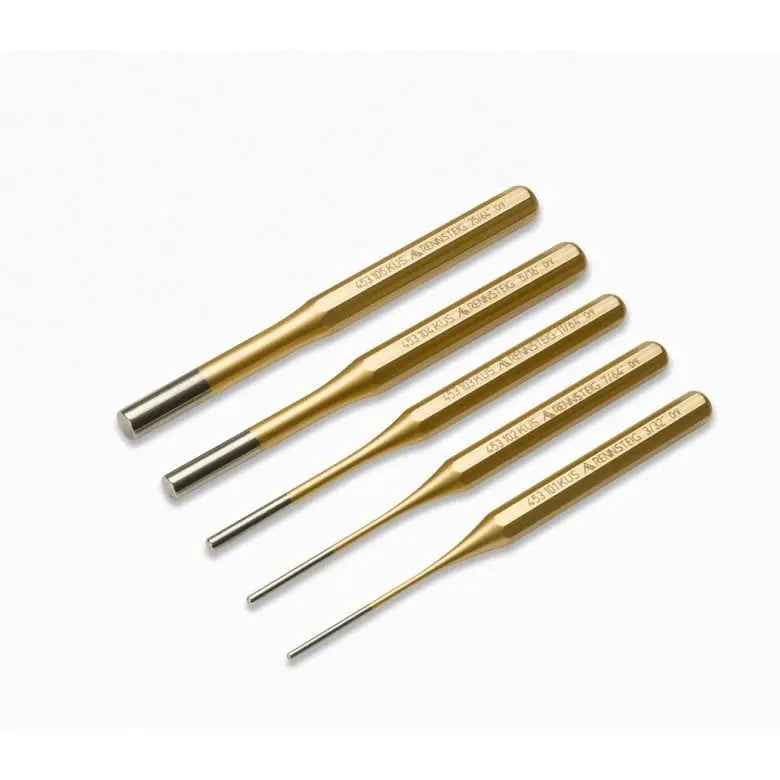

Knipex Set of 5 Pin Punch - KN 9R 450 005
A Pin Punch Set is a slender, precision impact tool designed to drive out or remove pins, rivets, and fasteners from assembled components without damaging surrounding surfaces. Featuring a straight, hardened tip and a durable steel body, it delivers accurate force transfer when struck with a hammer.
Set Includes:

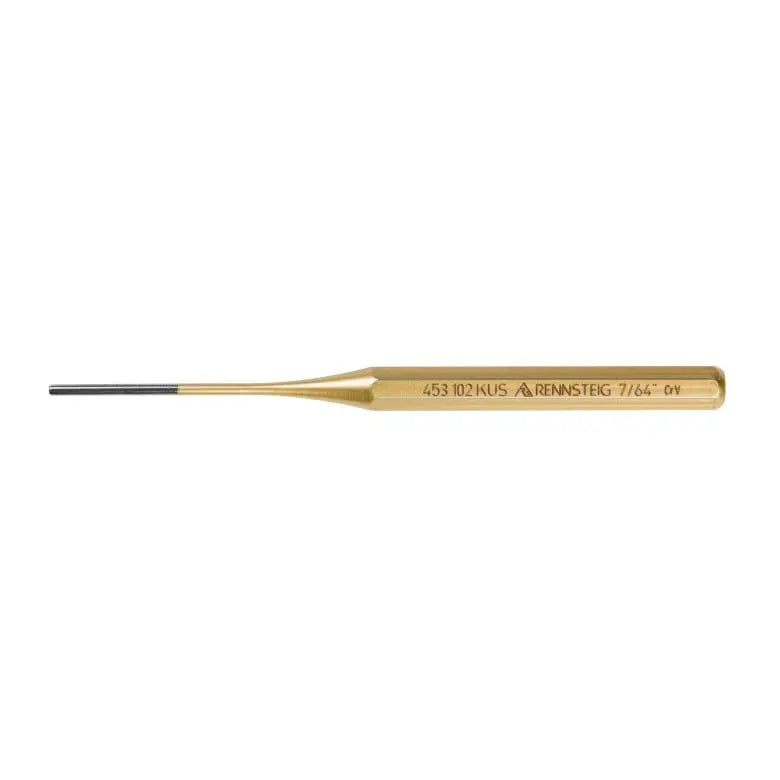

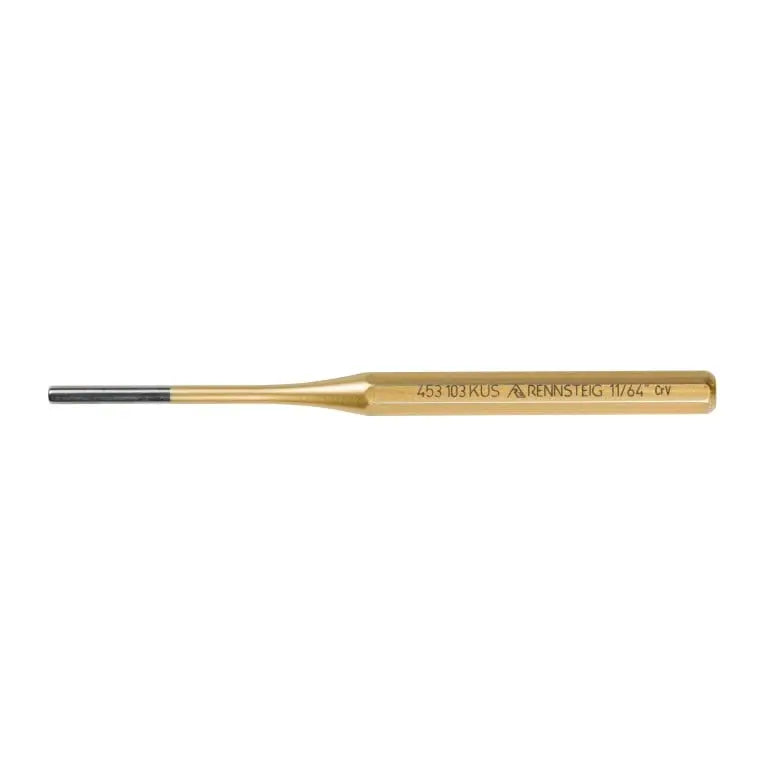

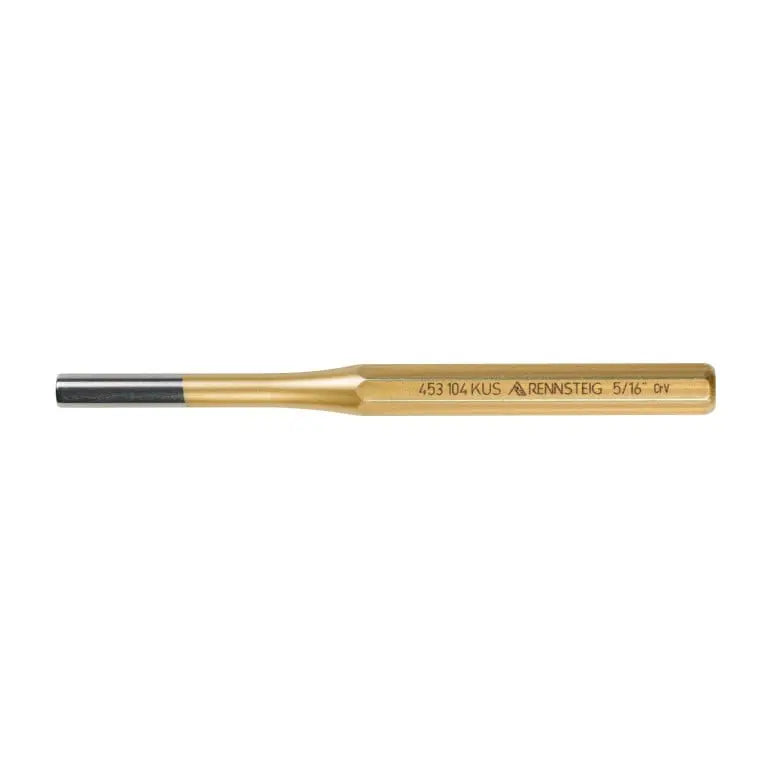

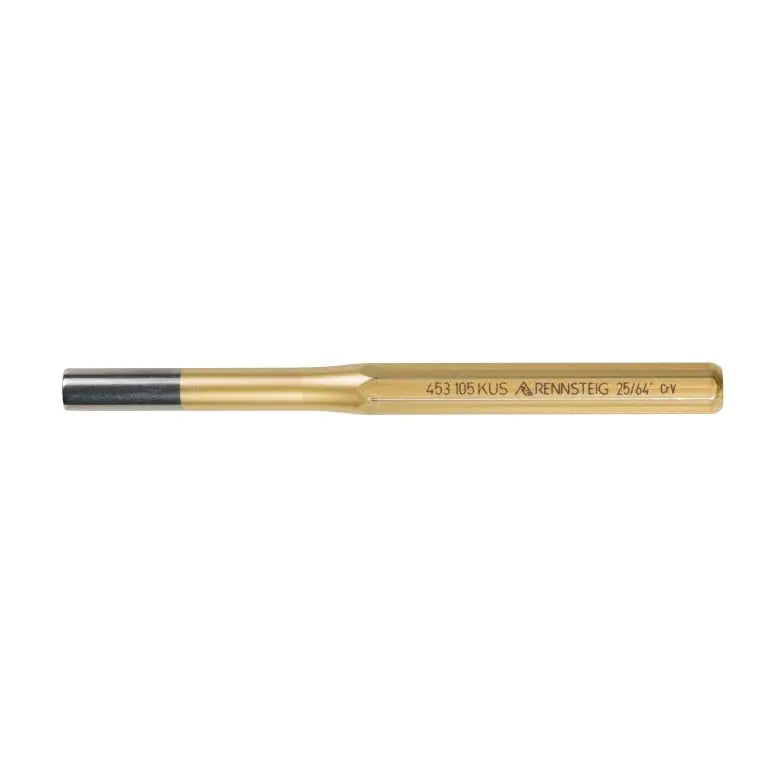

- Five (5) pin punches - 9R 453 101 KUS (3/32" x 6"), 9R 453 102 KUS 7/64" x 6"), 9R 453 103 KUS (11/64" x 6"), 9R 453 104 KUS (5/16" x 6"), and 9R 453 105 KUS (25/64" x 6")
Features:
- Where precision meets durability with every strike, the 5 piece pin punch set is built to handle challenging tasks. This set includes 6" length pin punches with the following diameters: 3/32", 7/64", 11/64", 5/16" and 25/64"
- Pin punches are used to install and drive pins out of holes
- All edges are rounded to prevent damage to the workpiece
- The octagonal shape is easier to grip when striking with a hammer and also prevents the tool from rolling away when placed on a surface
- The tip is ground and polished
- The material core design prevents mushrooming of the striking head
- Tools are tempered to a hardness of 54 to 58 HRC - not just at the tip but throughout the entire length of the tool
- Forged from top quality hardened chrome vanadium steel
- Compiles with DIN 7255 standard
Specifications:
- 1000 Volt Insulated: No
- Color: Gold
- Country of Origin: Germany
- Height: 1-1/8 in
- Material Type: Chrome Vanadium Steel
- Surface Finish: Polished Tips
- Tip Diameter: 3/32 in (9R 453 101 KUS), 7/64 in (9R 453 102 KUS), 11/64 in (9R 453 103 KUS), 5/16 in (9R 453 104 KUS), 25/64 in (9R 453 105 KUS)
- Weight: 0.94 lbs
- Width: 1-1/8 in
