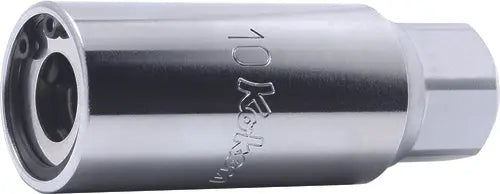

Screw and Stud Pullers
Hexagon body design can lessen the excessive load on cages and rollers inside the pullers.
Input Drive Size: |
N/A |
Drive Shape: |
Square
|
Length: |
75mm |
Type: |
Screw and Stud Puller |
Output Size: |
16mm |
Opening: |
27mm Hex |
4100M-16 is designed not to have 1/2" Sq. drive.
Repair Kit: 4100MRK-16
A stud bolt could not pass through 4100M-16 if it had the 1/2" Sq. drive, since 16mm stud bolt is bigger than 1/2" Sq. drive. (Also, 4100A-5/8 does not have 1/2" Sq. drive with the same reason.)
As it mentions on our catalogue, please drive the outer hexagon part with 27mm socket or ring wrenches.

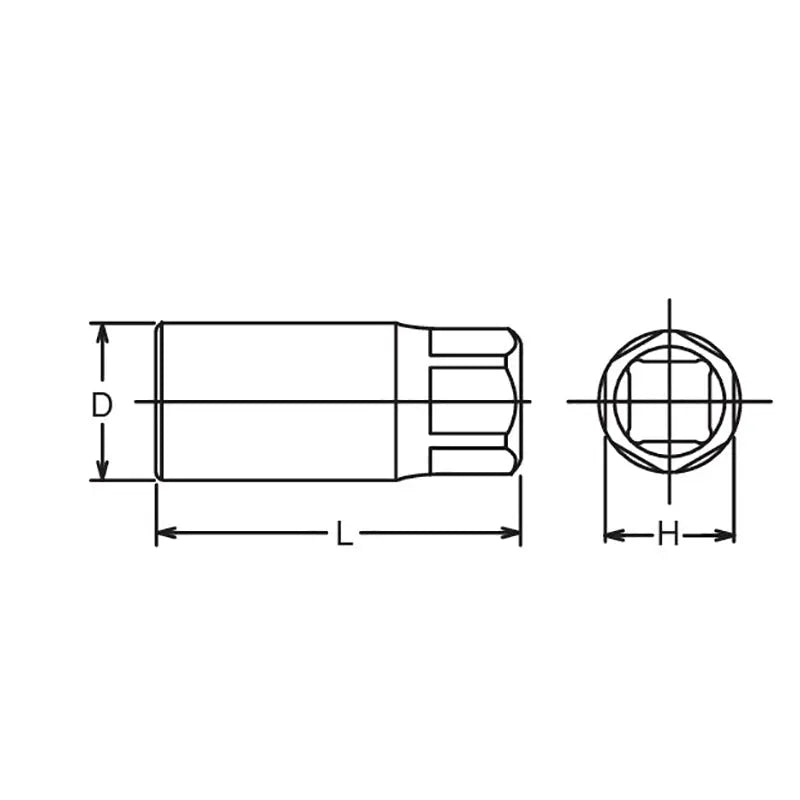

Product Dimension (Refer Line Drawing Image):
| D Size: |
34mm |
| H Size: |
27mm |
| L Size: |
75mm |
